Chapter Five -- CPU Scheduling -- Lecture Notes

• 5.0 Objectives
  • Describe various CPU scheduling algorithms. (yes)
  • Assess CPU scheduling algorithms based on scheduling criteria. (We discuss advantages and disadvantages)
  • Explain the issues related to multiprocessor and multicore scheduling. (yes)
  • Describe various real-time scheduling algorithms. (briefly)
  • Describe the scheduling algorithms used in the Windows, Linux, and Solaris operating systems. (briefly)
  • Apply modeling and simulations to evaluate CPU scheduling algorithms. (brief discussion of each of a list of approaches)
  • Design a program that implements several different CPU scheduling algorithms. (no)


• 5.1 Basic Concepts


  • 5.1.1 CPU-I/O Burst Cycle





    Generally, processes alternate between CPU bursts and I/O bursts.

    For a typical process, when we make a graph of the frequency of CPU bursts versus the duration, we see a hyperexponential shape. Basically it means there are lots of short bursts and few long ones.








  • 5.1.2 CPU Scheduler

    The job of the short-term scheduler of the OS is to choose the next job from the ready queue to be allowed to run in the CPU. Conceptually, the data structure in the ready queue is a process control block (PCB). (Quite likely, it's a thread control block, but this is one of those situation where we use "traditional names.") As you may know, the ready queue may NOT be structured as a first-in, first-out queue.


  • 5.1.3 Preemptive and Nonpreemptive Scheduling

    Sometimes the current process, P, in the CPU is removed from the CPU by an interrupt or trap, but it remains ready to run and goes immediately back into the ready queue. If, under those circumstances, the short-term scheduler decides to run a process other than P next, then we say P has been preempted. A scheduler capable of preempting is called a preemptive scheduler.

    In modern computing systems it is very common to allow preemption. That makes the systems more responsive to interactive users, and more supportive of processes when they urgently need to execute in a CPU.

    However, there is danger that processes that are preempted will leave data or other resources in inconsistent states. For example, suppose the process P is preempted while it is inserting an element into a queue. In other words, the insert operation is discontinued when it is only half done. If M is the next process to execute, and if M attempts to perform an operation on the same queue, then quite likely the queue structure will be corrupted.

    This kind of problem is called a race condition. It happens when two or more operations are attempted concurrently, and the correctness of the outcome depends on the particular order in which the operations are performed.

    People have to design preemptive systems carefully so that race conditions and other synchronization problems don't cause damage.

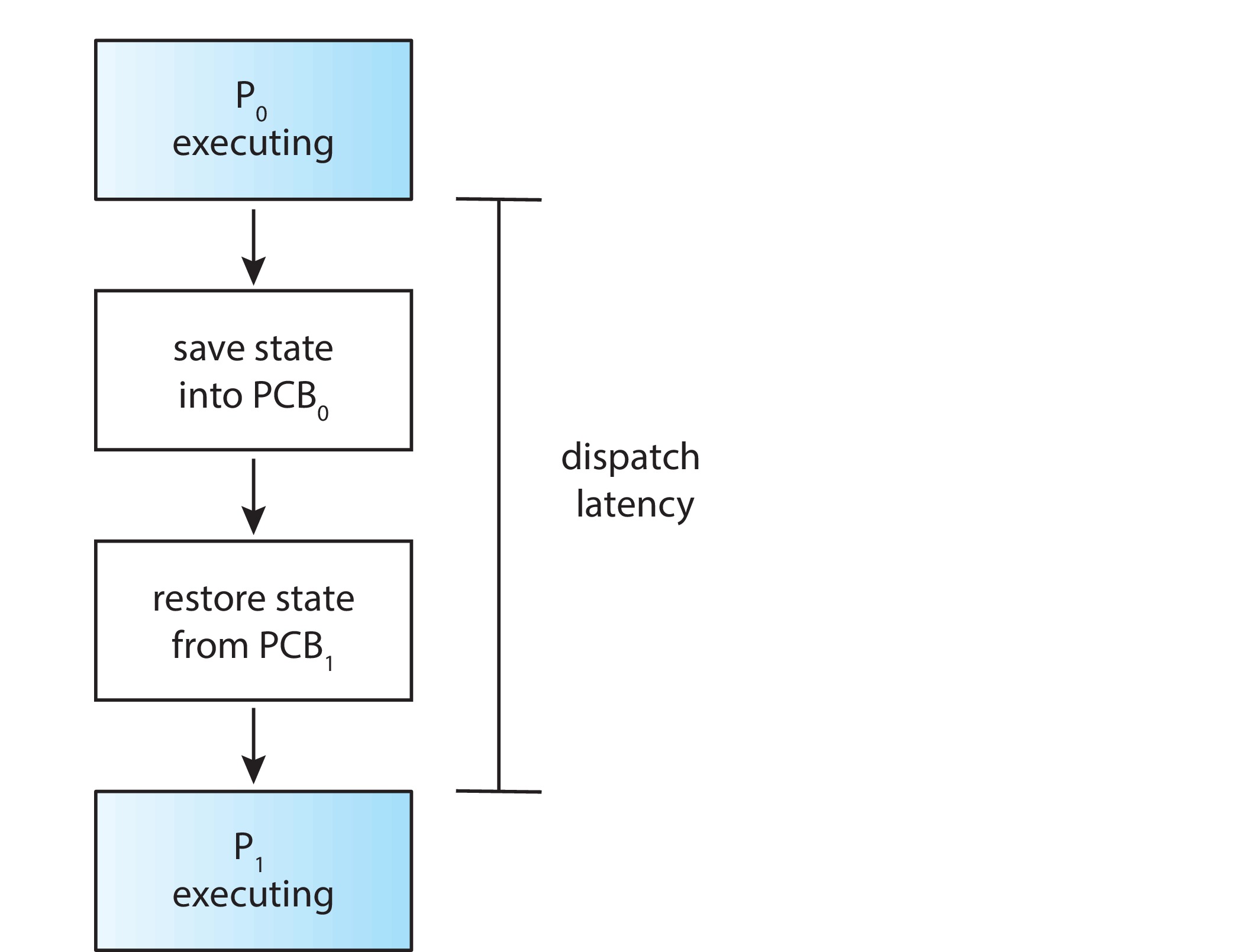

  • 5.1.4 Dispatcher






    The dispatcher is the part of the OS that actually puts a process in the CPU. After the scheduler selects the next process to run in the CPU, the scheduler calls the dispatcher. The dispatcher performs the data movement associated with context switching, switches to user mode, and jumps to the requisite instruction within the user process. It is very important to design the code of the dispatcher so that it runs as quickly as possible. The dispatcher is a performance bottleneck on many systems. The time the dispatcher uses up is called the dispatch latency.


• 5.2 Scheduling Criteria


  • Typical goals of short-term scheduling are high CPU utilization, high throughput, short turnaround time, short wait time, and short response time.


    • CPU utilization == (time CPU runs 'useful' code) / (total elapsed time)
      CPU utilization is often multiplied by 100 and
      expressed as a percentage, like 84%, instead of 0.84.
    • throughput == number of jobs completed per unit time
    • turnaround time == the time from submission to completion
    • wait time == time spent in the ready queue
      Beware of confusion here: It may go against your
      intuition. "Wait time" does NOT include any of the time
      spent while the process is in the waiting state - such as
      waiting for I/O.
    • response time == time from submission to start of first response


  • Generally system designers also want the measures of performance above to have low variance.


• 5.3 Scheduling Algorithms


  • 5.3.1 First-Come, First-Served Scheduling






    Advantage: FCFS is easily understood and implemented.
    Disadvantages: FCFA is non-preemptive. It can lead to long average wait times. It is subject to the "convoy effect" wherein the CPU and I/O channels suffer periods of low utilization because groups of I/O-bound processes get stuck in queues behind CPU-bound processes.


  • 5.3.2 Shortest-Job-First Scheduling

    Advantage: Pure SJF has a "minimum average waiting time"
    optimality property.
    Disadvantage: Starvation of long jobs is possible.

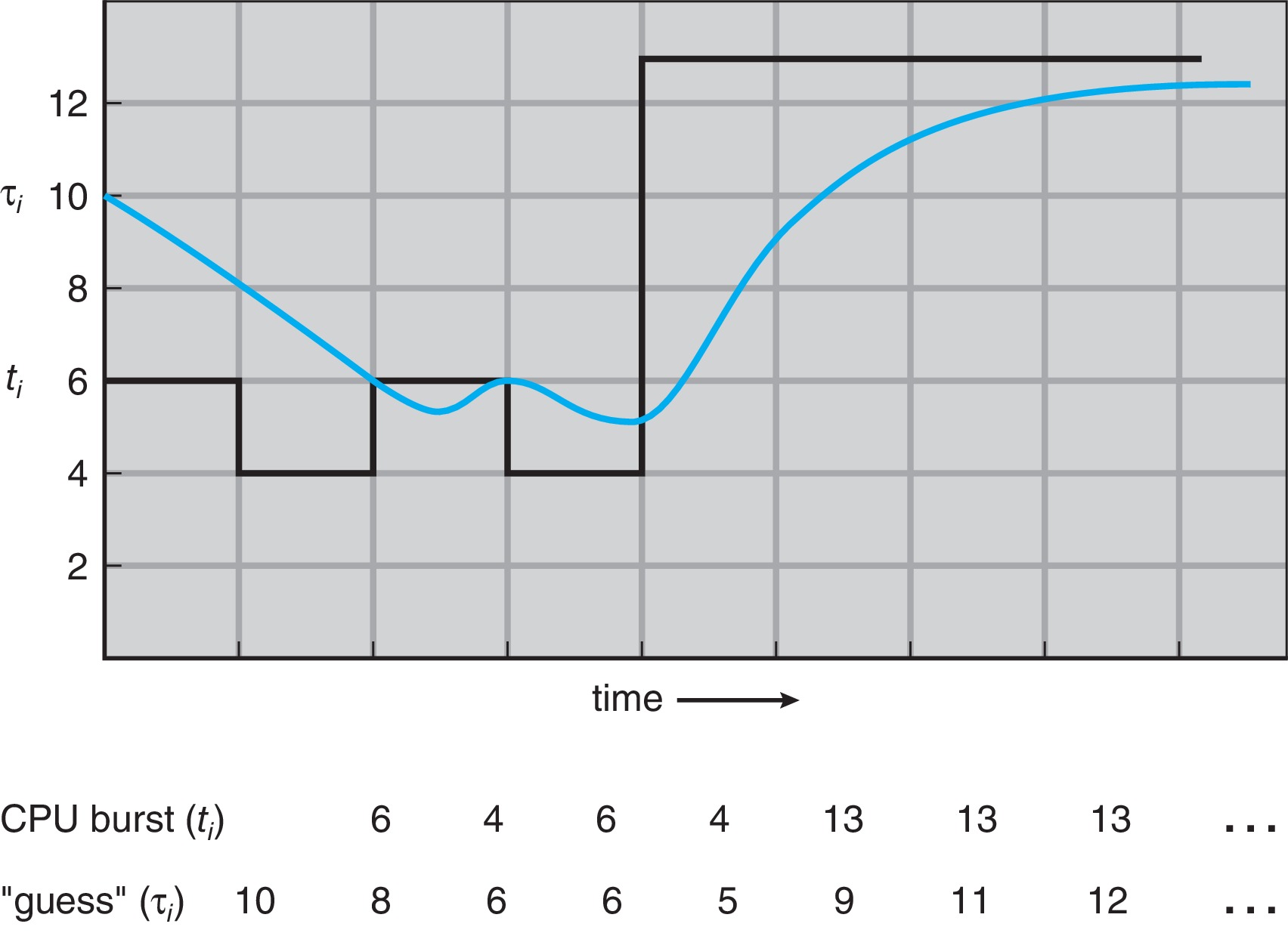

    Detail: SJF can't be implemented perfectly at the level of
    short-term scheduling. Instead the scheduler employs an estimate
    of the length of the next burst






    Detail: SJF may be preemptive or non-preemptive. If
    preemptive, when a new job N arrives in the ready queue
    and N is shorter than the remainder of the current job K
    in the CPU, K must be replaced with N as soon as possible.

    Starvation: (a.k.a. indefinite postponement) If new, short jobs keep arriving frequently enough, a long job may wait indefinitely in the ready queue, because there is always a shorter job waiting there, and the scheduler will execute the shorter job.

    This phenomenon is similar to what happens if you go to the emergency room with a sore throat. You will be served if and when there is no one there with a more urgent need. After all the people who were there when you arrived are served, you may still have to wait longer because more people who need care more urgently than you may have arrived in the meantime . There is no limit to the number of people who will be served before you are served. There is no means of knowing whether you will be served eventually.


  • 5.3.3 Round-Robin Scheduling

    Advantage: RR helps time-sharing systems have short
    response time.
    Disadvantage: Average wait times tend to be high.
    Disadvantage: There tends to be a high amount of
    context-switching overhead.
    Detail: RR uses a circular queue and a time-slice (quantum).
    Detail: RR is preemptive.

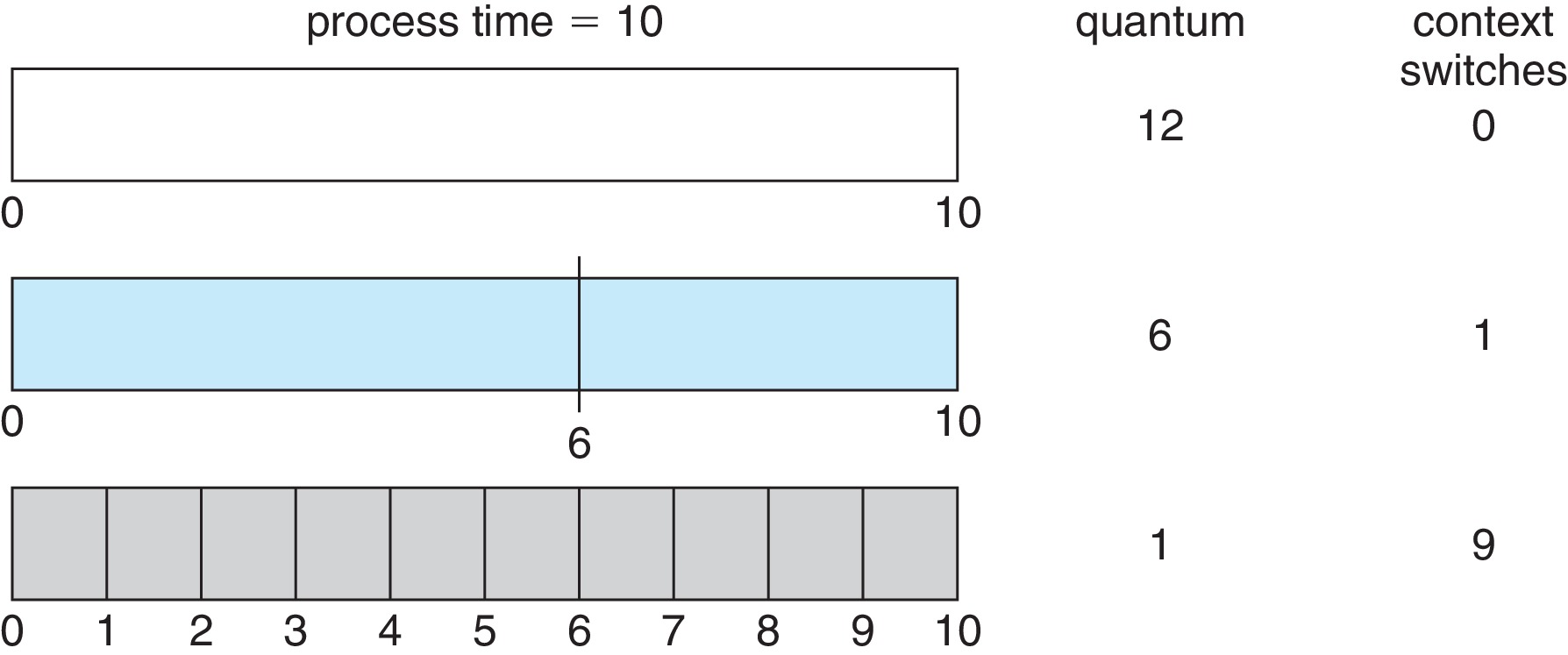

    Detail: To avoid excessive overhead we need the quantum
    to be large in comparison with the context-switch time.

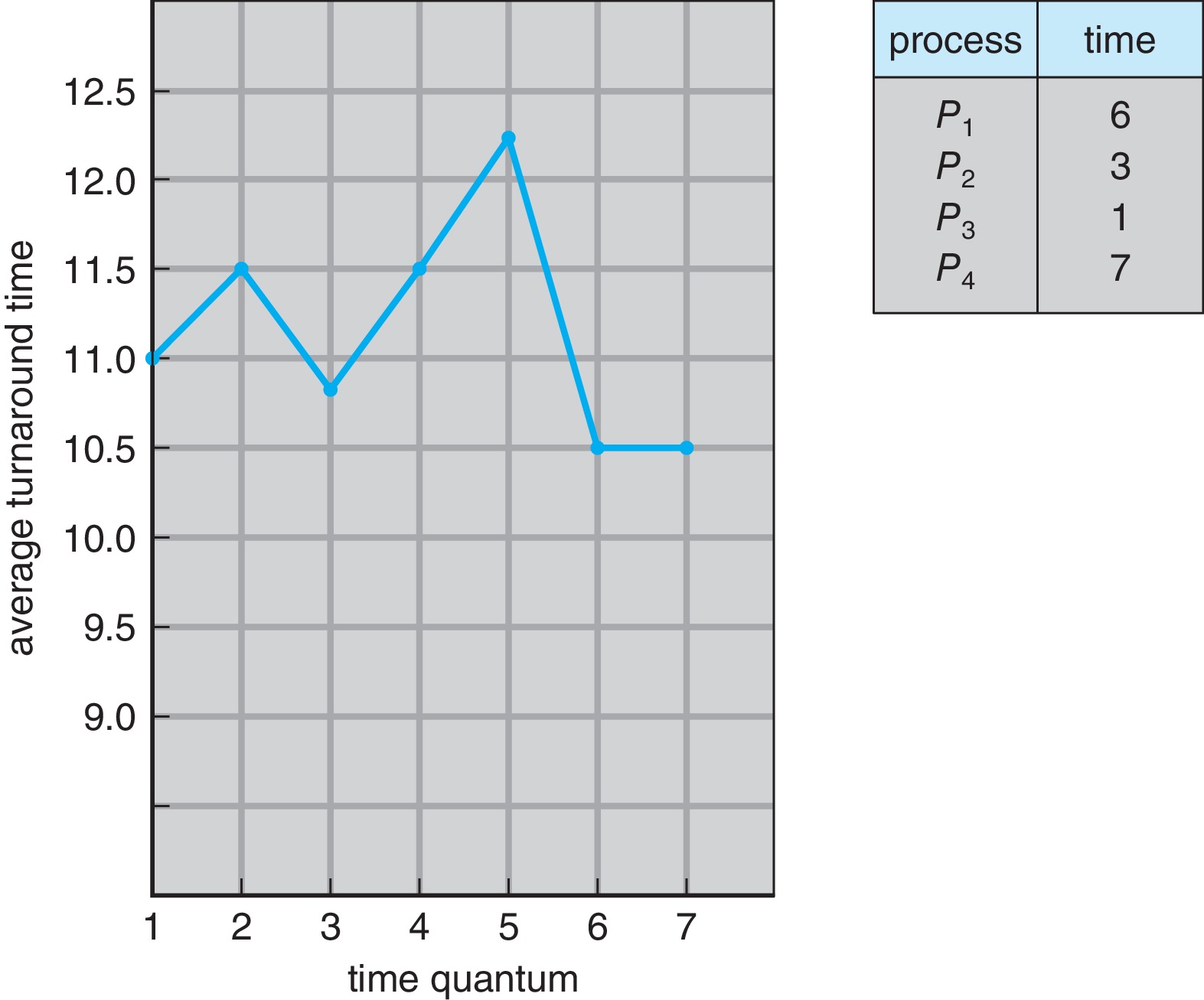

    Detail: To get low turnaround times the quantum
    should be larger than the average CPU burst time.
    Detail: On the other hand the quantum has to be small
    enough to produce good response time.
    Heuristic: 80% of the CPU bursts should be shorter than
    the quantum.

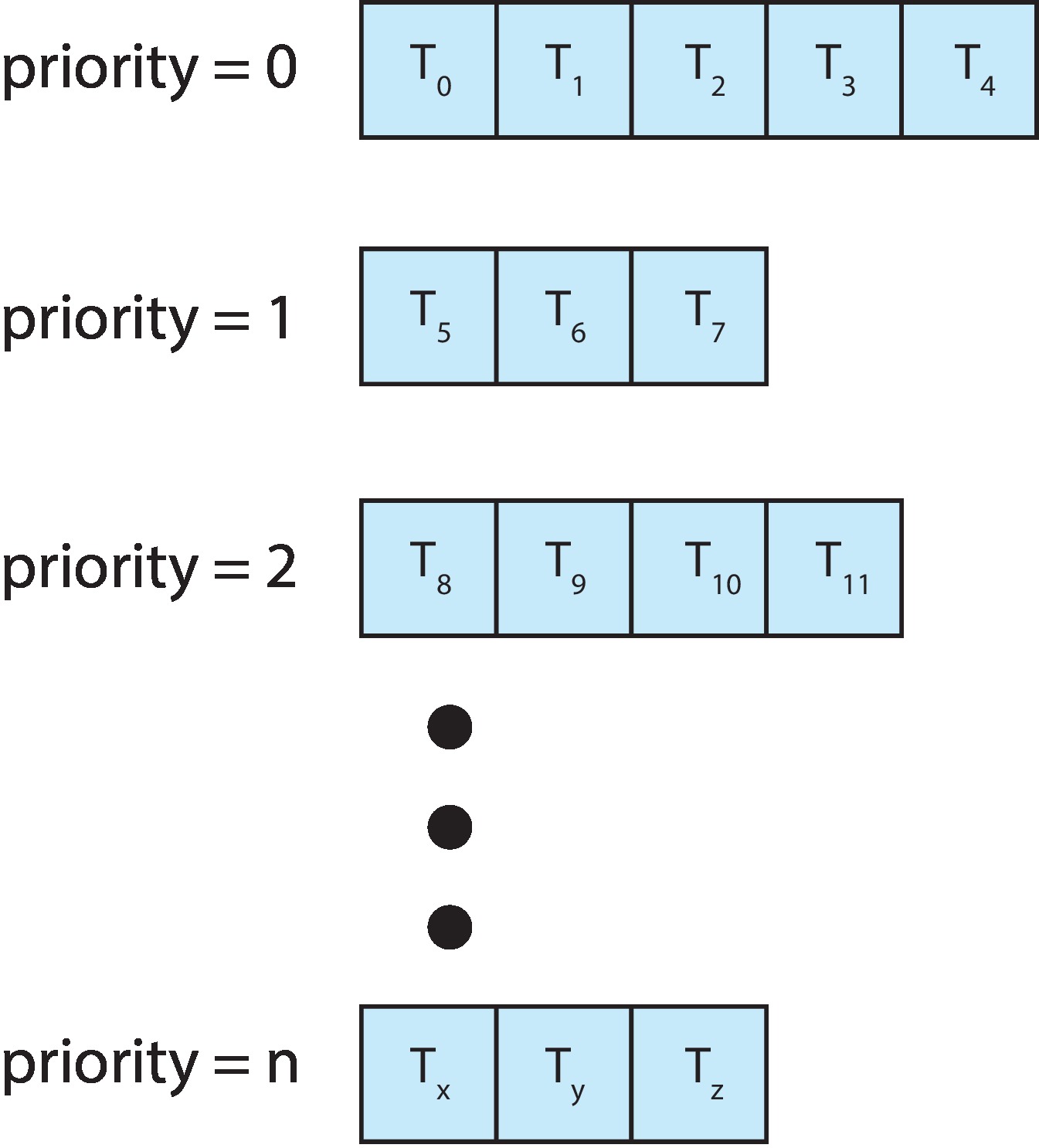

  • 5.3.4 Priority Scheduling

    * Disadvantage: HPJF can lead to starvation.
    (SJF is a form of HPJF.)
    * Detail: Aging used in conjunction with HPJF
    can avert starvation.
    Aging is the elevation of the priority of processes
    that have not received CPU time.
    * Detail: HPJF can be preemptive or non-preemptive.


  • 5.3.5 Multilevel Queue Scheduling







    The method of scheduling may be based on dividing processes into several types and having a separate ready-queue for each type (e.g. foreground processes, background, system, interactive editing, ...) There could be a different scheduling algorithm for each queue - tailored to that type of process. The design would have to include an algorithm that decides which queue to service, and when. This algorithm might implement strict priorities among the queues, or time-slice among them.

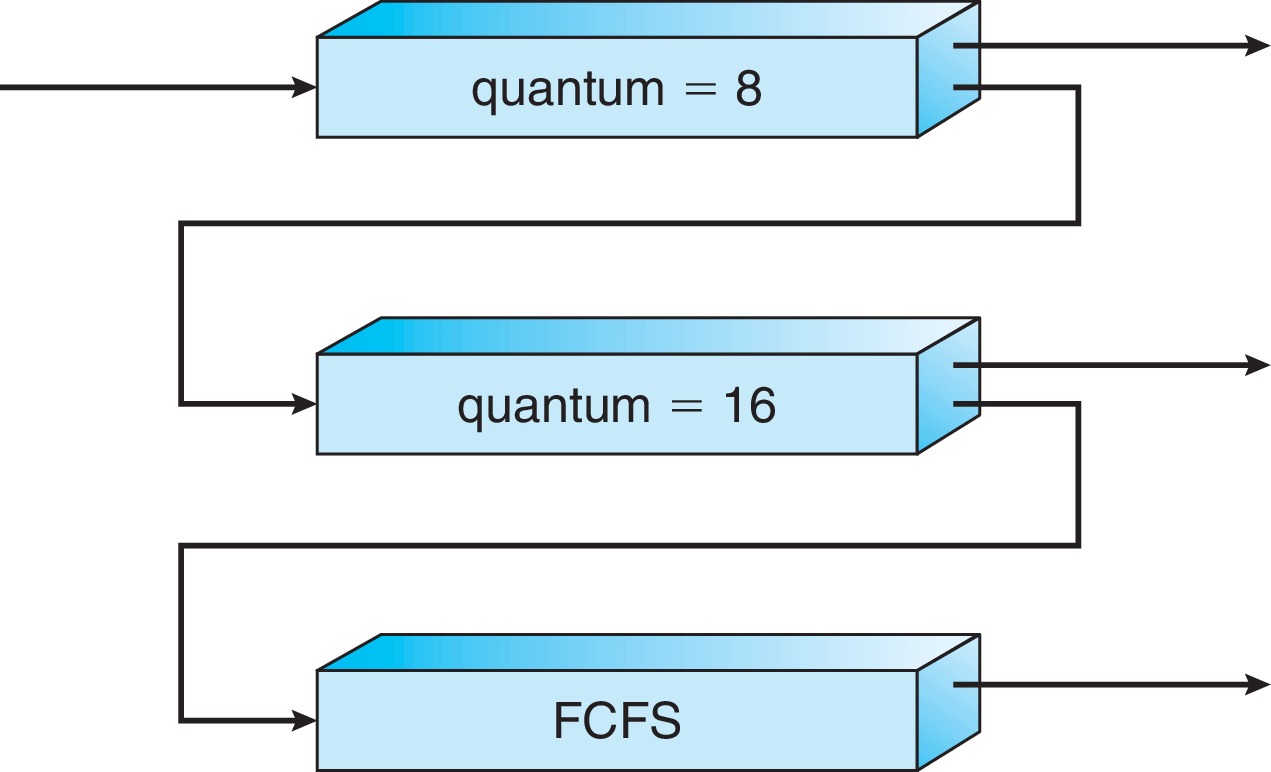

  • 5.3.6 Multilevel Feedback Queue Scheduling





    Put jobs in queues based on recent CPU usage. Allow migration from queue to queue. "Hungrier processes" move up to higher priority queues - prevents starvation.


• 5.4 Thread Scheduling

  I won't cover this section in lecture or ask anything about it on tests. Basically it compares and contrasts scheduling issues of user-level threads versus kernel-level threads. It also discusses Pthreads API functions that, under some conditions, allow a programmer to choose between, for example, the many-to-many model and the one-to-one model.


  • 5.4.1 Contention Scope


  • 5.4.2 Pthread Scheduling




• 5.5 Multiprocessor Scheduling


  • 5.5.1 Approaches to Multiple-Processor Scheduling





    Asymmetric Multiprocessing (AMP) is a possibility: All OS code runs on just one of the processors, and so only one process at a time has access to system data structures. This avoids synchronization problems.

    Virtually all modern operating systems support Symmetric Multiprocessing (SMP) - system code can run on any processor. OS code on each processor schedules that processor.

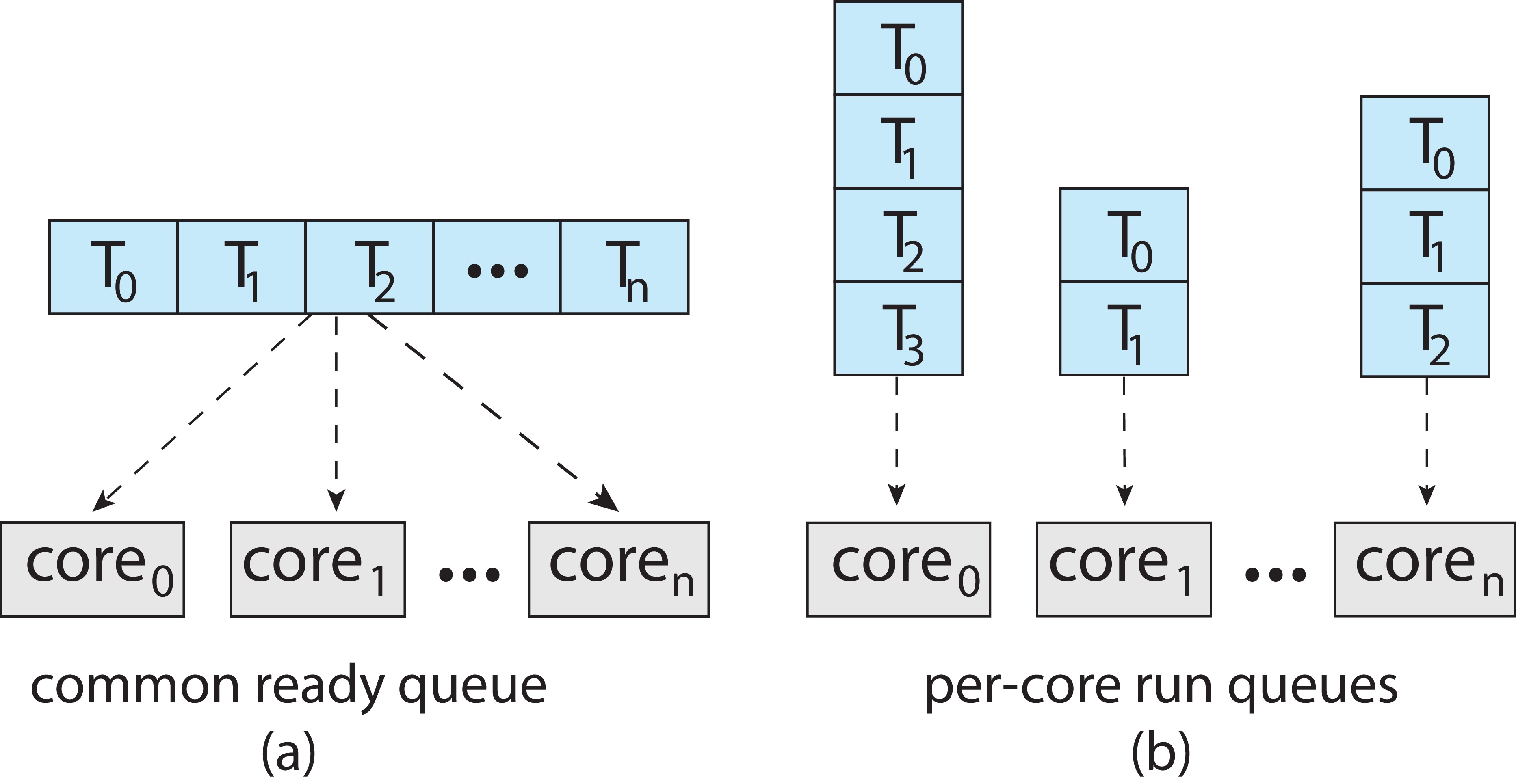

    SMP can be used in conjunction with either a common ready queue or separate ready queues for each processor. (See figure 5.11.)

    Access to a common ready queue has to be programmed carefully (synchronization problem).

    On the other hand, load balancing can be problematic if there is a separate ready queue for each processor. What if some queues are empty and others are full?


  • 5.5.2 Multicore Processors









    Multicore processors are basically multiprocessors on a single chip.

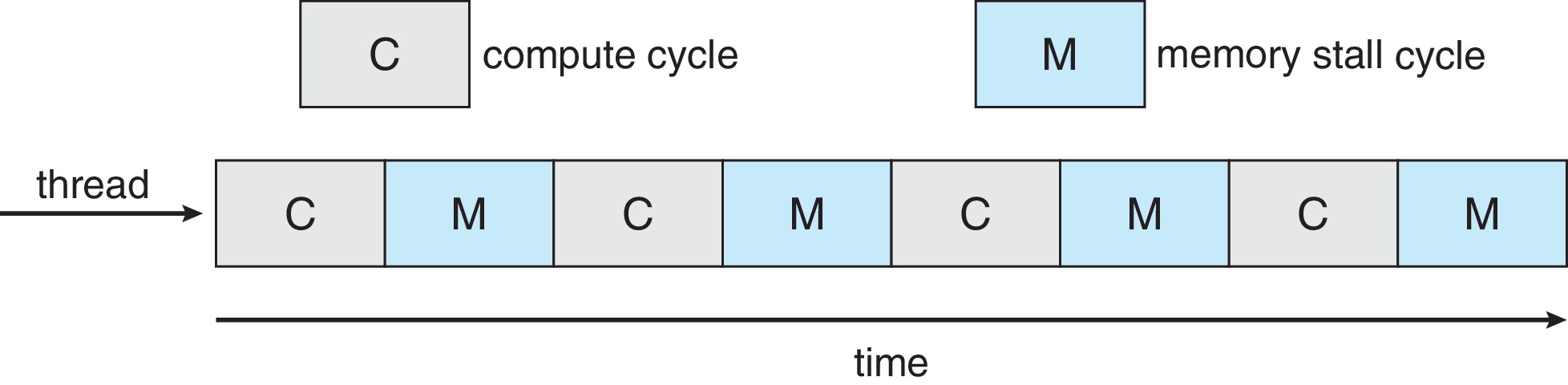

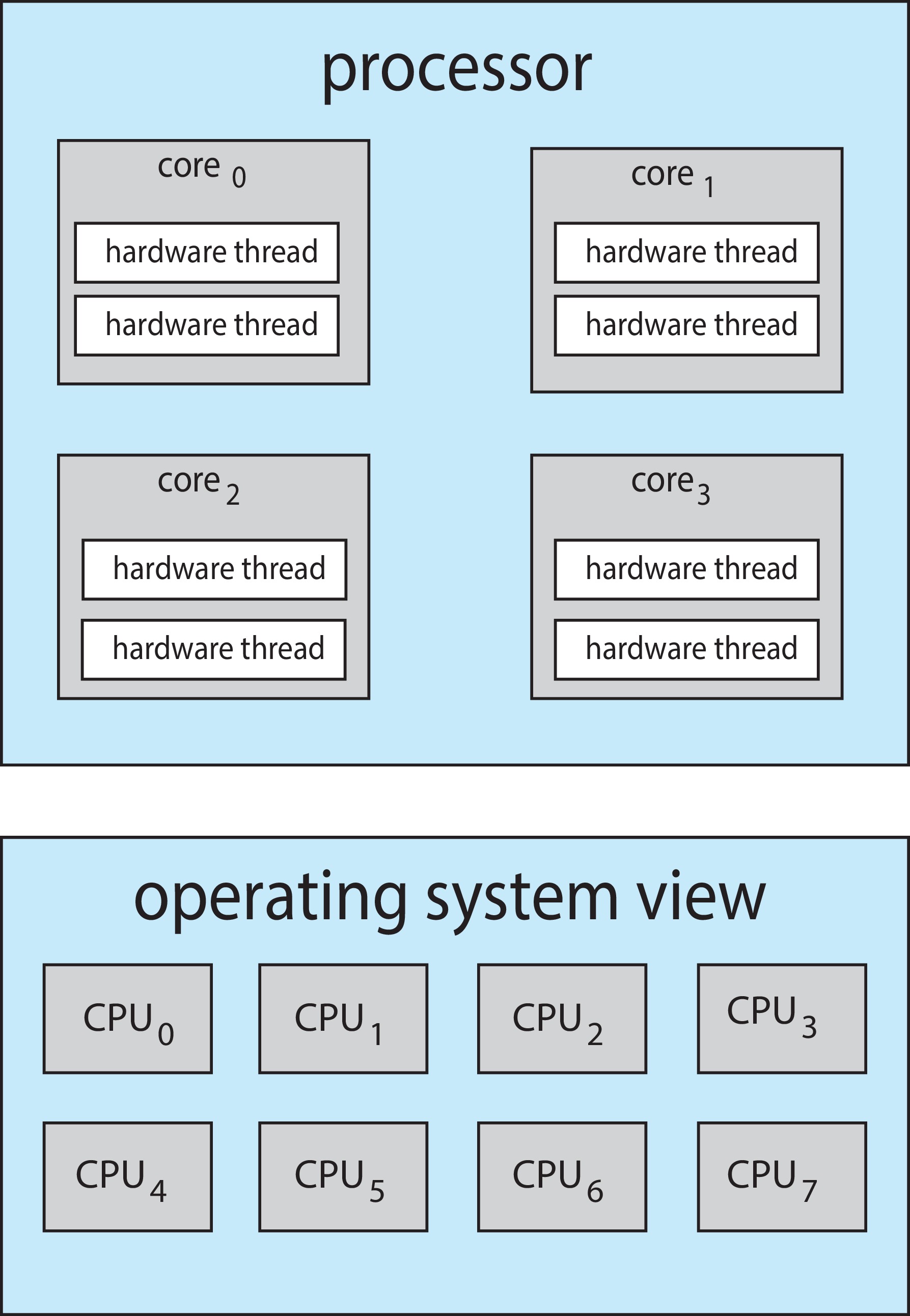

    A core may implement two or more logical processors by supporting the compute cycle of one thread during the memory stall cycle(s) of the other(s).

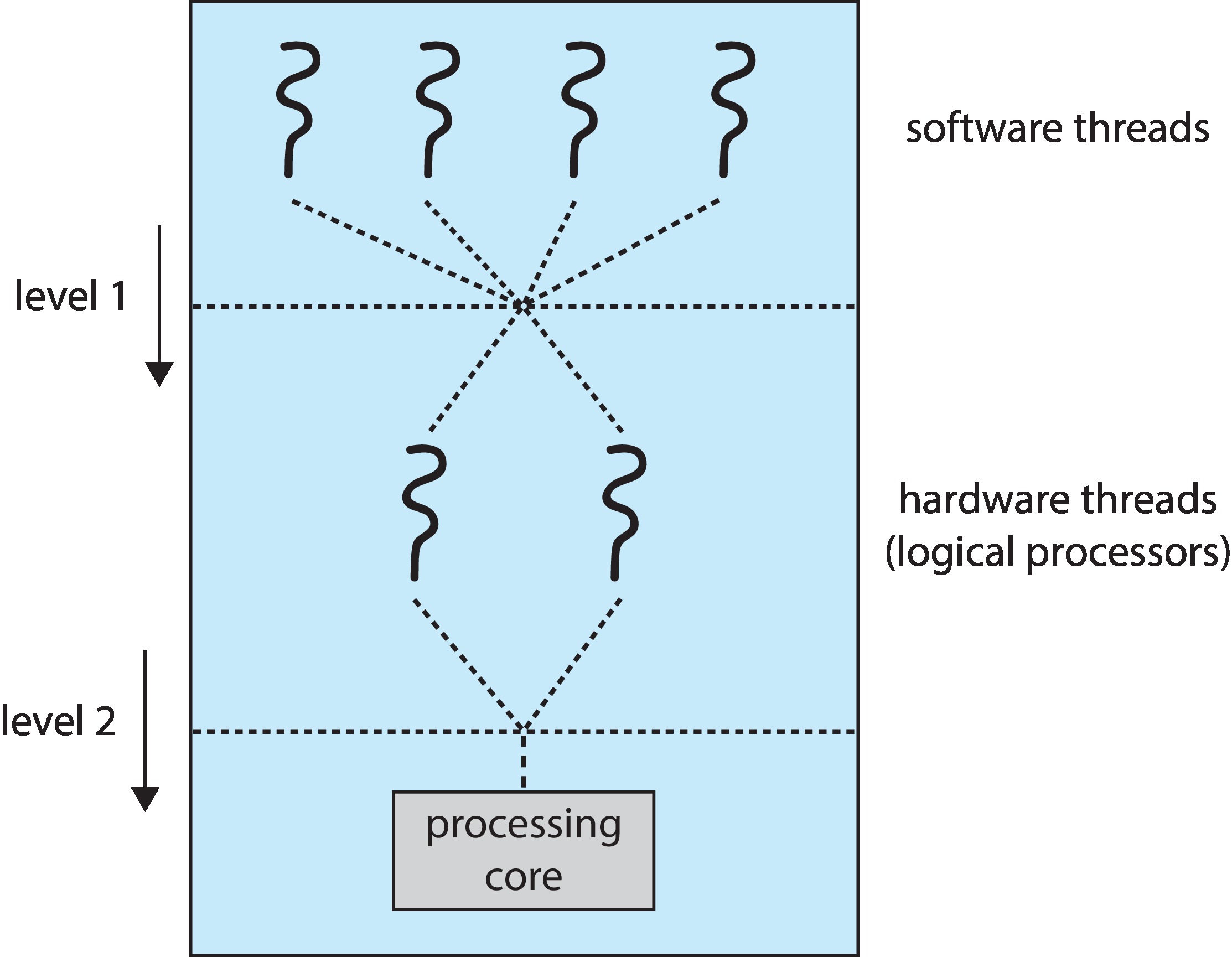

    This means that one level of scheduling is done by the hardware of the cores when they select among the threads assigned to them.


  • 5.5.3 Load Balancing

    When each processor has a separate ready queue, there can be an imbalance in the numbers and/or kinds of jobs in the queues. Push and pull migration are standard approaches to load balancing.

    With push migration, a system process periodically checks ready queues and moves processes to different queues, if need be. If you are waiting for a cashier at a large store and a floorwalker directs you to another queue, that is similar to push migration.

    With pull migration, OS code running on each processor X notices when X has little work to do, and tries to take jobs from other ready queues. When you are waiting for one checker at a food market, and another checker says "I can help you over here," that is similar to pull migration.


  • 5.5.4 Processor Affinity





    Processor Affinity If a process migrates from one CPU to another, the old instruction and address caches become invalid, and it will take time for caches on the new CPU to become 'populated'. For this reason, OS designers may build the short-term scheduler to treat processes as having affinity for the CPU on which they have been executing most recently.

    The idea of soft processor affinity is for the scheduler to give priority to putting the process on its 'home' CPU, but not to make doing so an absolute requirement. With hard processor affinity, there's little or no flexibility to allow a process to migrate to a different CPU.

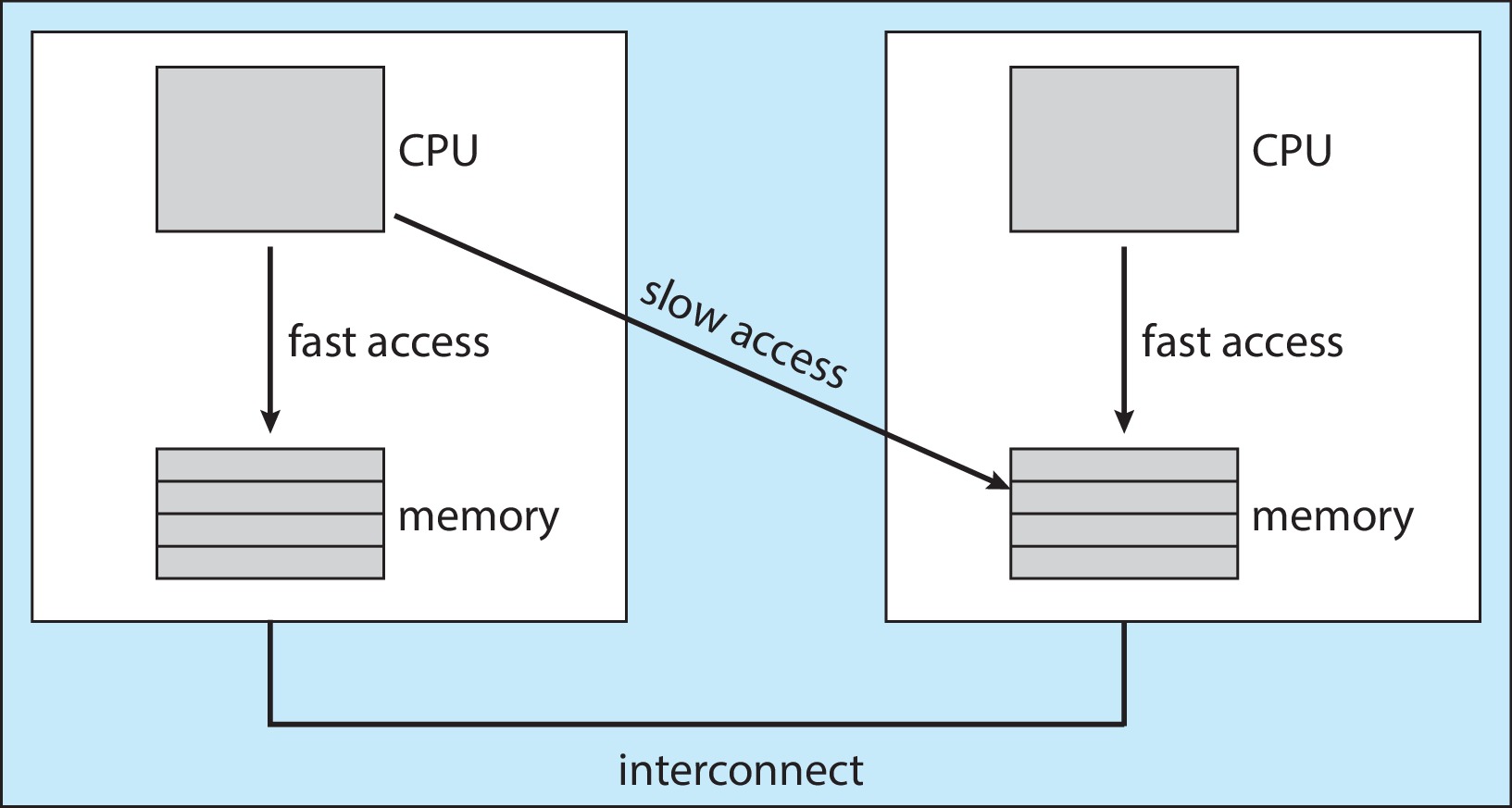

    Another factor is architectures with non-uniform memory access (NUMA) -- e.g. when there are multiple units with integrated CPU and memory. Here it is advantageous for the scheduler and memory allocator to cooperate to keep a process running on the CPU that is 'close' to the memory in which it is resident.

    Note that load balancing tends to work counter to the idea of processor affinity.


  • 5.5.5 Heterogeneous Multiprocessing

    In a heterogeneous multiprocessor (HMP), the processors may not all be essentially equivalent to each other.

    An example is the big.LITTLE architecture supported by some Advanced Risc Machines (ARM) processors. There are high-performance but power-hungry big cores, and energy-efficient but lower-performance little cores.

    A CPU scheduler, particularly on a mobile device, can take advantage of a system like that. For example, it may schedule long-running low-demand background processes on little cores, and performance-hungry applications that don't run for long on big cores.




• 5.6 Real-Time CPU Scheduling


  • Soft real-time systems guarantees only to give high priority to certain processes with real-time requirements.


  • Hard real-time systems guarantee that certain processes will execute within their real-time constraints.

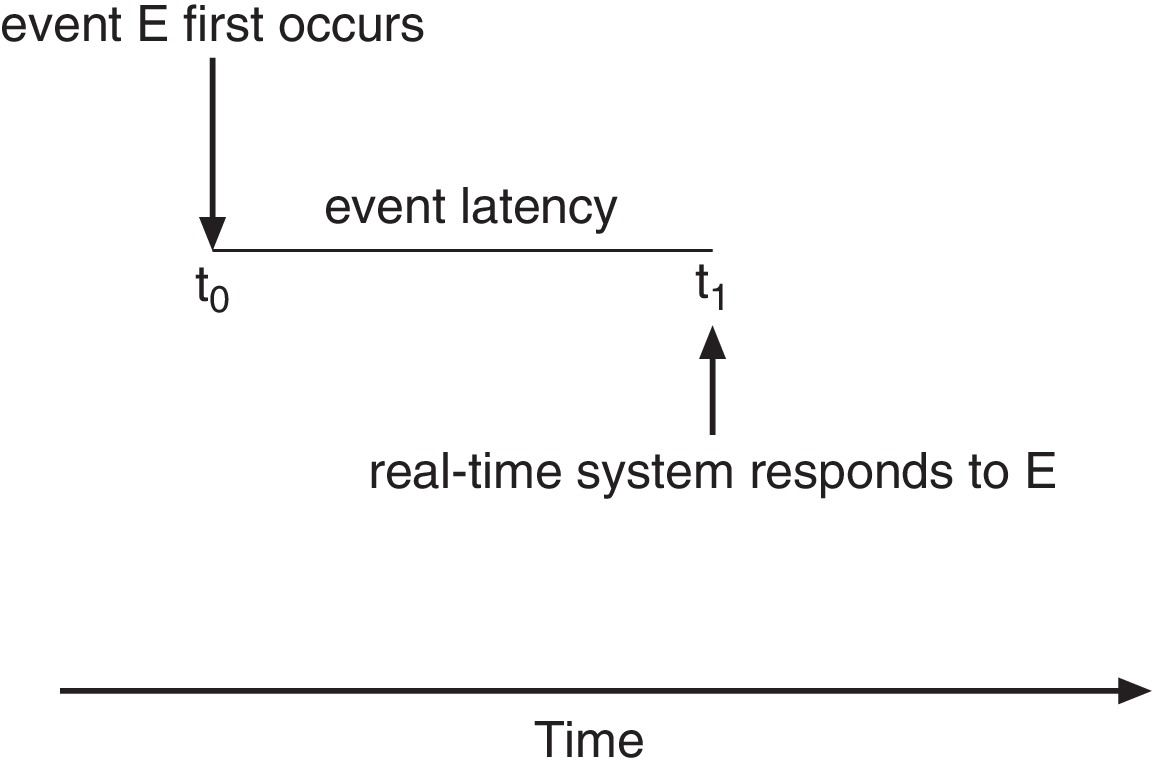

  • 5.6.1 Minimizing Latency

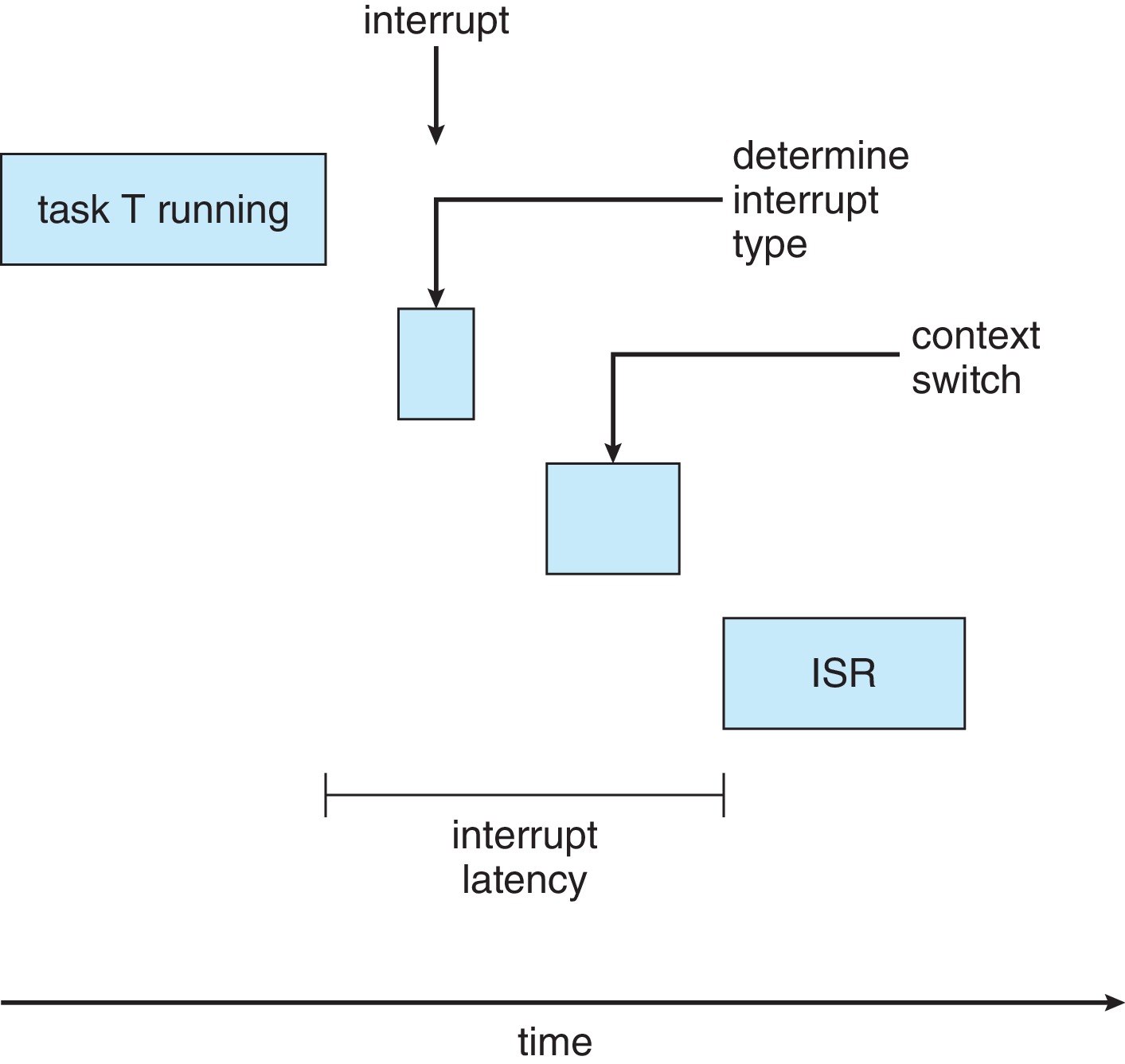

    • In order to assure that deadlines are met, a hard real-time system must enforce a bound on interrupt latency, the elapsed time between when an interrupt arrives at a CPU and when the service routine for the interrupt starts execution.


    • Other ways to help assure that deadlines can be met:


      • Require that interrupts be disabled only for very short periods of time.
      • Implement a dispatcher that performs very fast context switches.
      • Allow preemption of processes, so that high priority processes can be dispatched without delay.
      • Create means for low-priority processes to quickly release resources needed by a high-priority (real-time) process.


  • 5.6.2 Priority-Based Scheduling

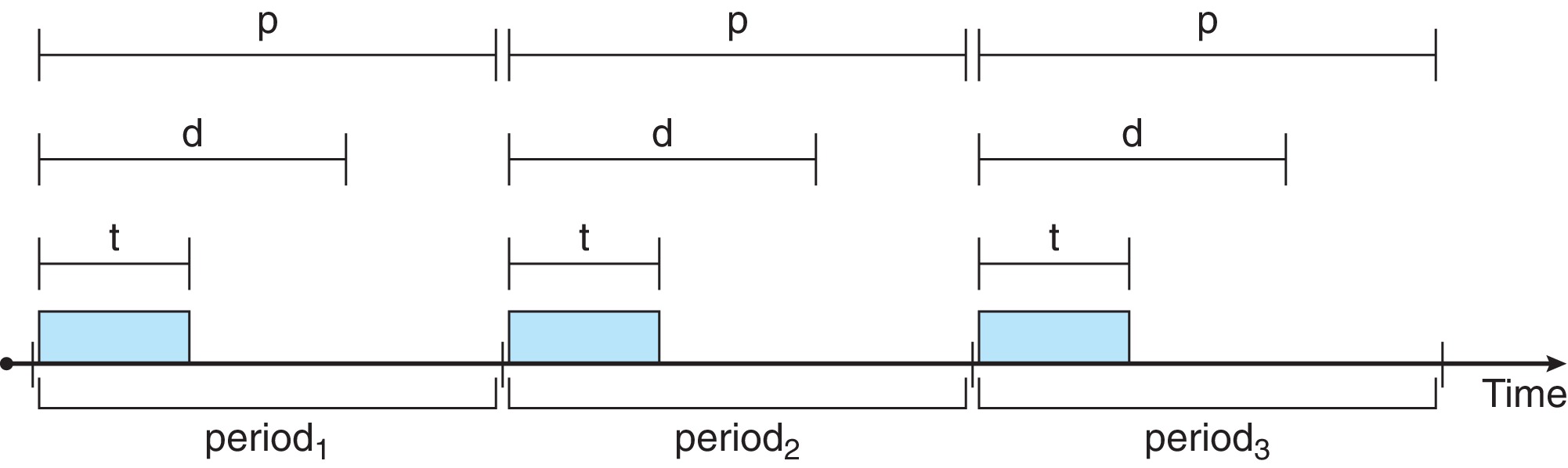

    • The text considers periodic hard real-time processes. These processes require the CPU at constant intervals (periods). An example, found here is "a video decompressor may have to run 30 times per second at 33.3 millisecond intervals." Besides the period p, two other constants are associated with a periodic process, the time t required to complete the task, and the deadline d. We assume the relation

      0 ≤ t ≤ d ≤ p



    • One of the jobs of the scheduler in a hard real-time system is to examine the characteristics of each periodic process, and determine whether it (the scheduler) can guarantee that the deadline(s) of the process will always be met.


    • If so, the scheduler admits the process.


    • If not, the scheduler rejects the process.

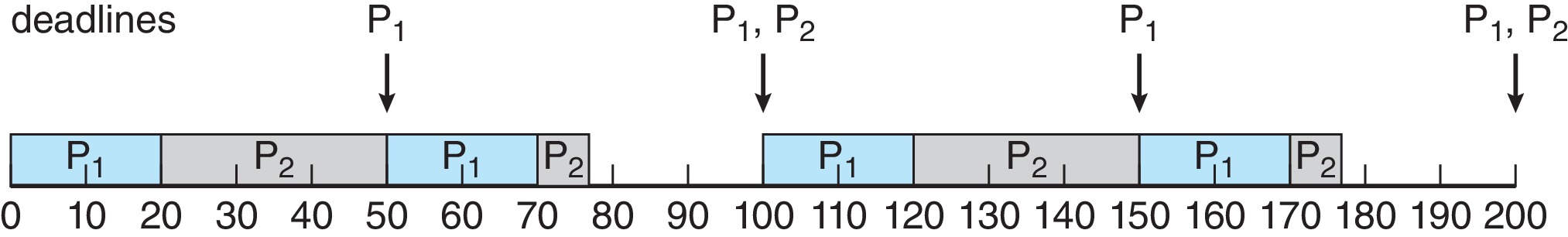

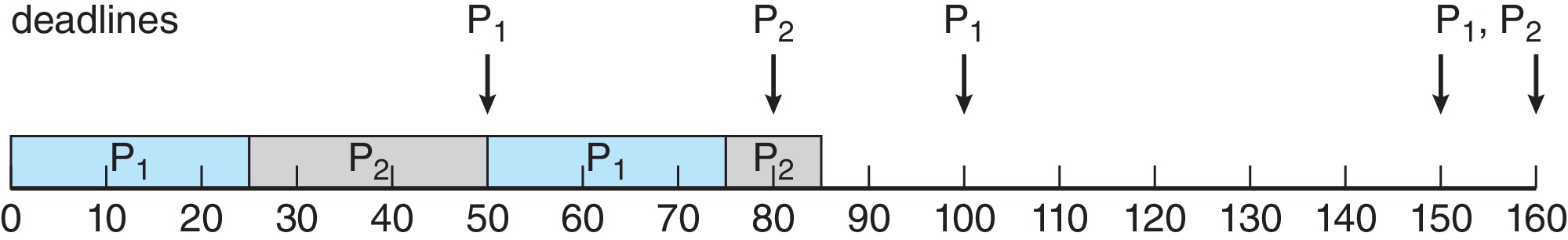

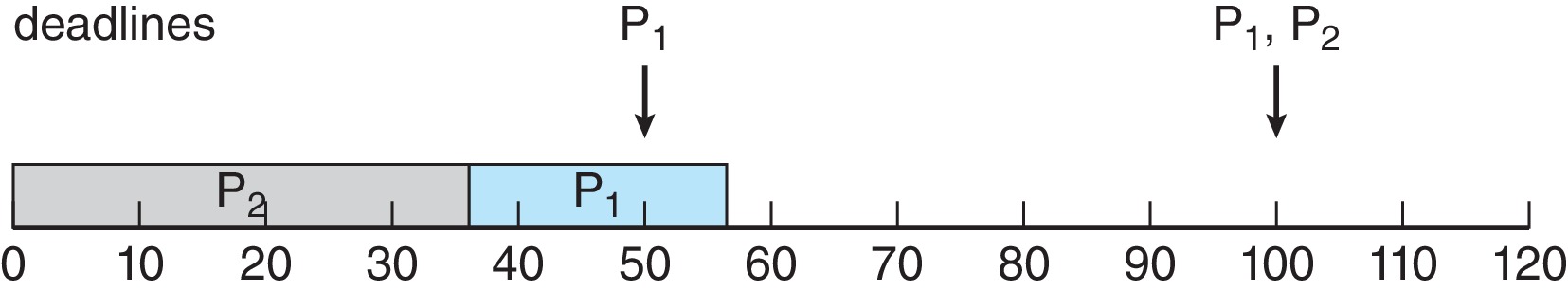

  • 5.6.3 Rate-Monotonic Scheduling





    • Rate-monotonic scheduling utilizes static priorities and preemption.


    • Periodic processes with shorter periods have priority over periodic processes with longer periods.


    • With this scheduling discipline, a set of periodic processes have the 'best chance' of meeting all deadlines. In other words, if rate-monotonic scheduling does not allow the processes to always meet their deadlines, then no other algorithm that assigns static priorities can do so.

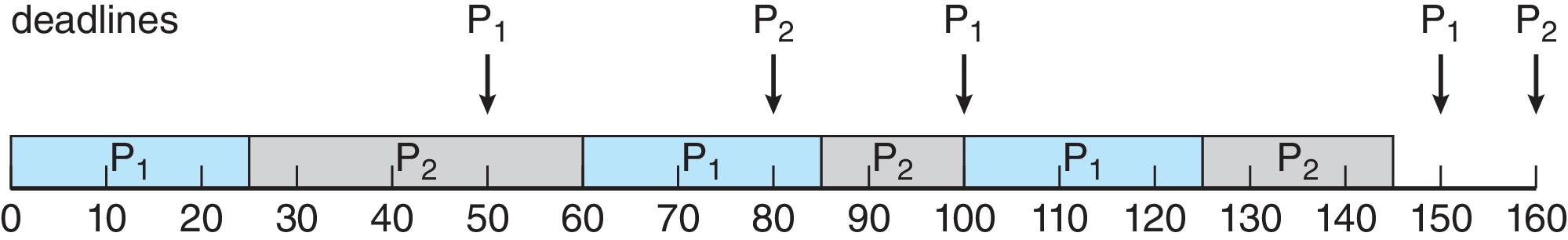

  • 5.6.4 Earliest Deadline First Scheduling





    • EDF scheduling is an algorithm that minimizes maximum lateness by giving priority to the process with the earliest deadline. Relative priorities of processes can change based on which future deadlines are currently known.


    • EDF can perform better than Rate-monotonic scheduling, and it does not require that processes be periodic, or that they have fixed processing time t.


    • All that's required is that the process be able to 'announce' its deadline to the scheduler when it becomes runnable.


  • 5.6.5 Proportional Share Scheduling


    • Proportional share schedulers allocate shares of CPU time to each member of a group of processes.


    • The scheduler admits a client process only if the scheduler is able to allocate the number of shares that the client requests.


  • 5.6.6 POSIX Real-Time Scheduling


    • The POSIX standard provides extensions for real-time computing.


    • Basically the scheduling possibilities are forms of FIFO.




• 5.7 Operating System Examples


  • 5.7.1 Example: Linux Scheduling


    • The Linux OS started out using a traditional Unix scheduler, but in more current revisions began using something called the Completely Fair Scheduler(CFS).


    • Standard Linux has two scheduling classes, "default" and real-time. Each class has its own priority and scheduling algorithm.





    • CFS is the algorithm used for the default class.


    • CFS assigns a proportion of CPU time to each task, according to its nice value, which is a quantity traditionally used in unix-like systems as a component of the process priority formula. We may think of the nice value as a base priority.


    • The virtual runtime, or vruntime is the overall CFS priority of a process, calculated from its nice value (nv) and its amount of recent (CPU) runtime (rrt). Lower values of either nv or rrt correspond to higher CFS priority.


    • The CFS scheduler has a ready queue implemented as a red-black tree. The scheduler caches the location of the leftmost node, which represents a task with a minimum value of vruntime - a maximum priority.


    • Linux supports real-time processing by implementing POSIX Real-Time Scheduling (see section 5.6.6), and by giving real-time processes higher priority than all default-class processes.

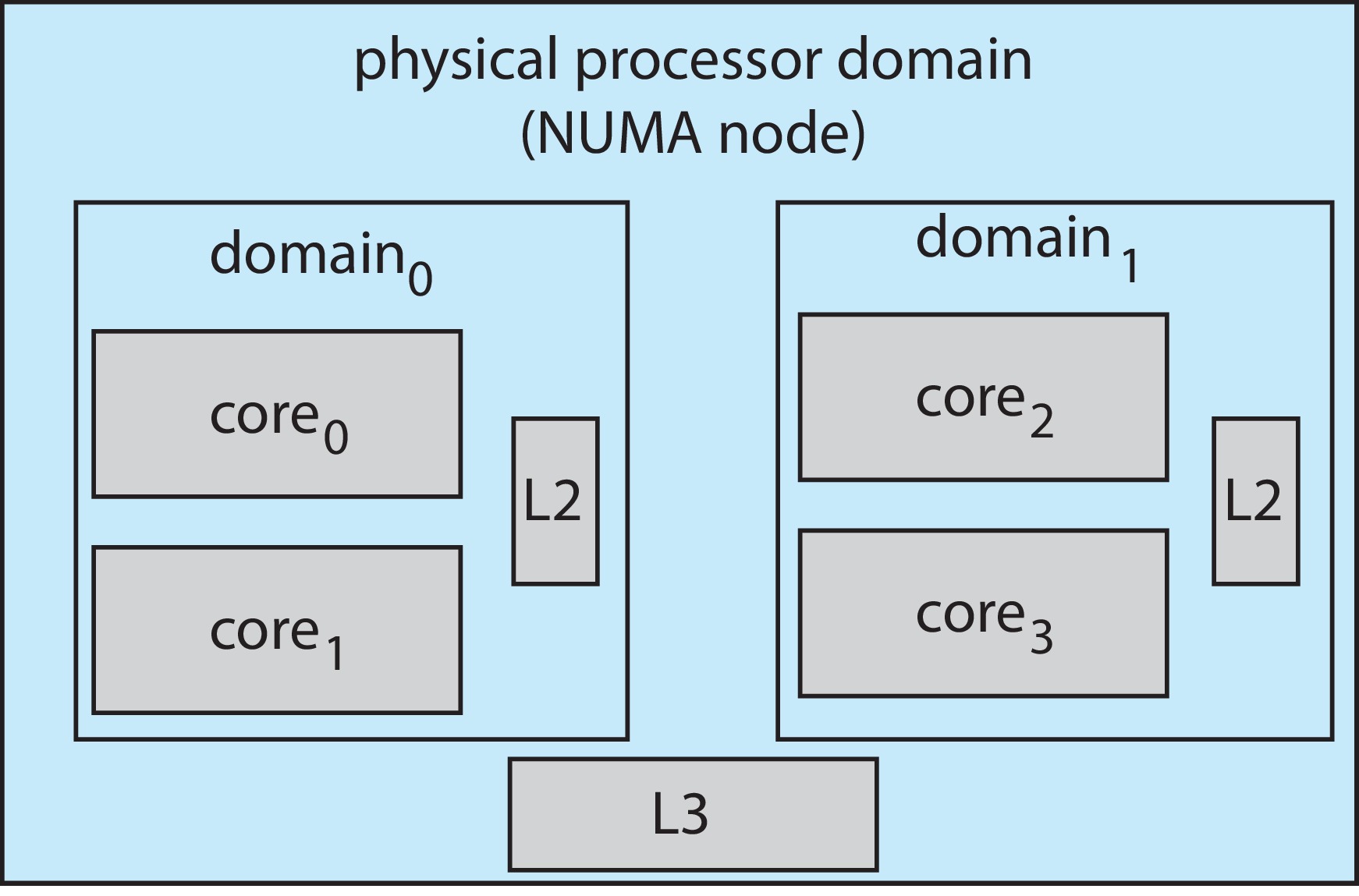

    • The CFS scheduler also supports load balancing and processor affinity. It tries to keep the total load of the members of each ready queue approximately equal. Load, roughly speaking, is a measure of expected CPU usage. At the same time, CFS tries to avoid migrating processes to cores where they can no longer use current resources, like L2 cache and on-chip memory.


  • 5.7.2 Example: Windows Scheduling


    • Windows has preemptive priority scheduling that gives real-time processes higher priority than normal processes.

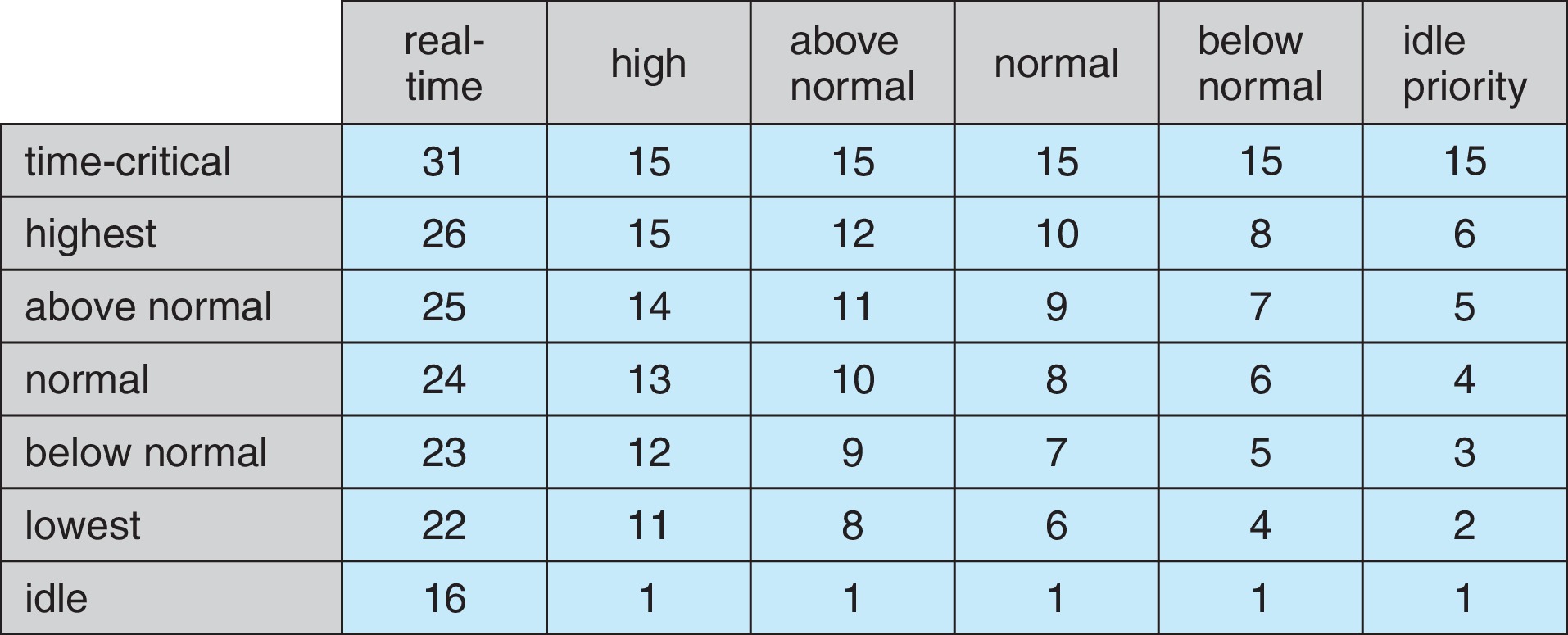

    • There are 32 levels of priority, each with its own queue.



    • The OS changes priorities of normal processes to help improve response times and mitigate starvation problems.


    • Windows 7 has user mode scheduling - a facility that allows applications to create and schedule user-level threads.


    • Windows supports processor affinity by defining SMT sets of logical processors, and attempting to keep each thread within its SMT set.


    • Windows also supports load balancing, by attempting to make evenly-distributed initial assignments of threads to processors.


  • 5.7.3 Example: Solaris Scheduling


    • Solaris has six scheduling classes: time-sharing, interactive, real time, system, fair share, and fixed priority.


    • The Solaris time-sharing class is the default. Solaris schedules the time-sharing class with a multi-level feedback queue. Processes that have used little CPU time lately get high priority. Lower priority processes get larger time slices.





    • Solaris schedules the interactive class about the same way as the time-sharing class, but it gives high priority to windowing applications.


    • In scheduling the time-sharing and interactive classes, Solaris gives smaller time slices to higher-priority proceses. It also lowers the priority of processes that use up their time slice, and it boosts priorities of processes that have recently returned from sleep.

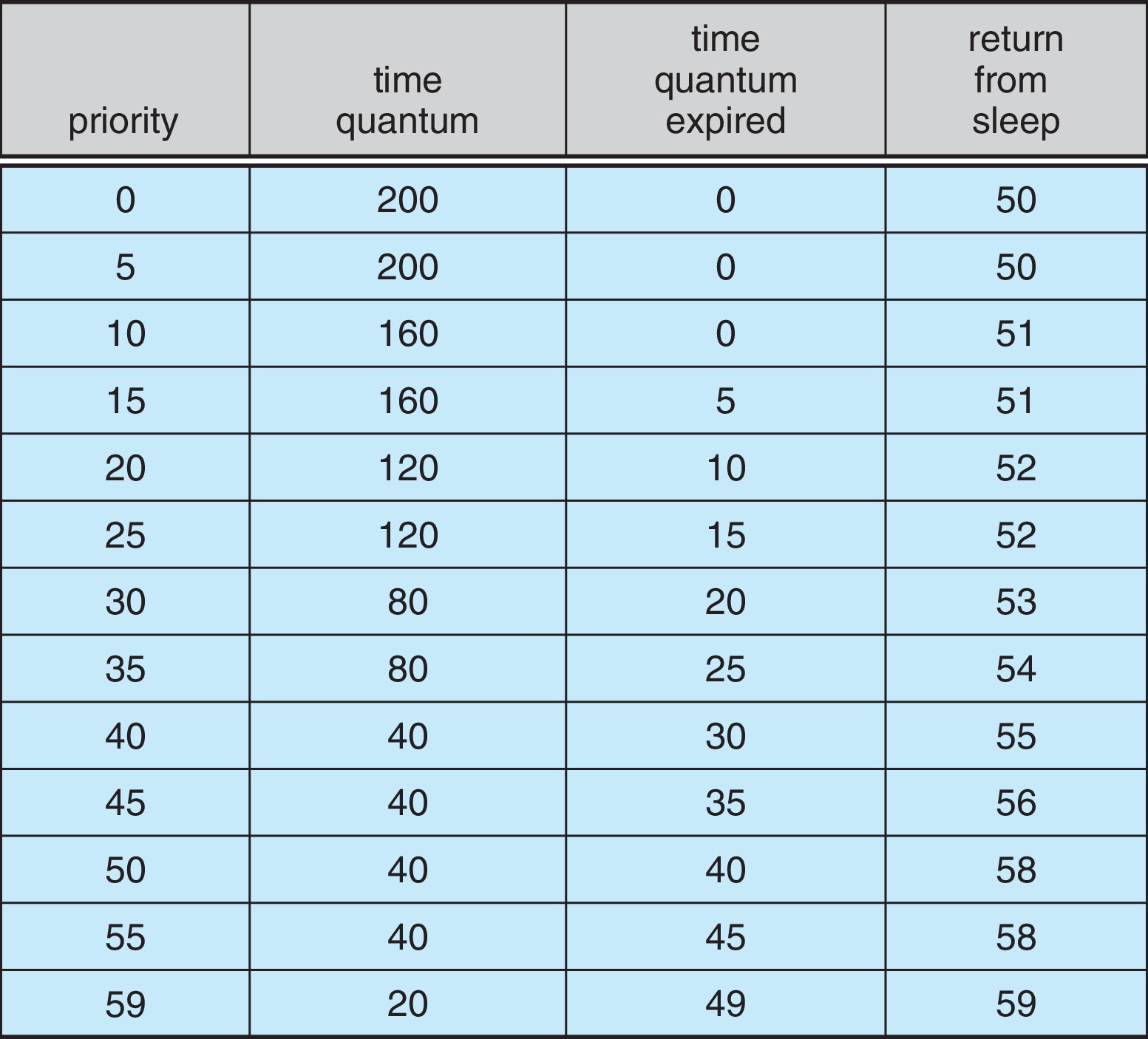

    • The scheduling algorithm for the time-sharing and interactive classes is table-driven.


    • Processes in the real-time class have priority higher than any other class.

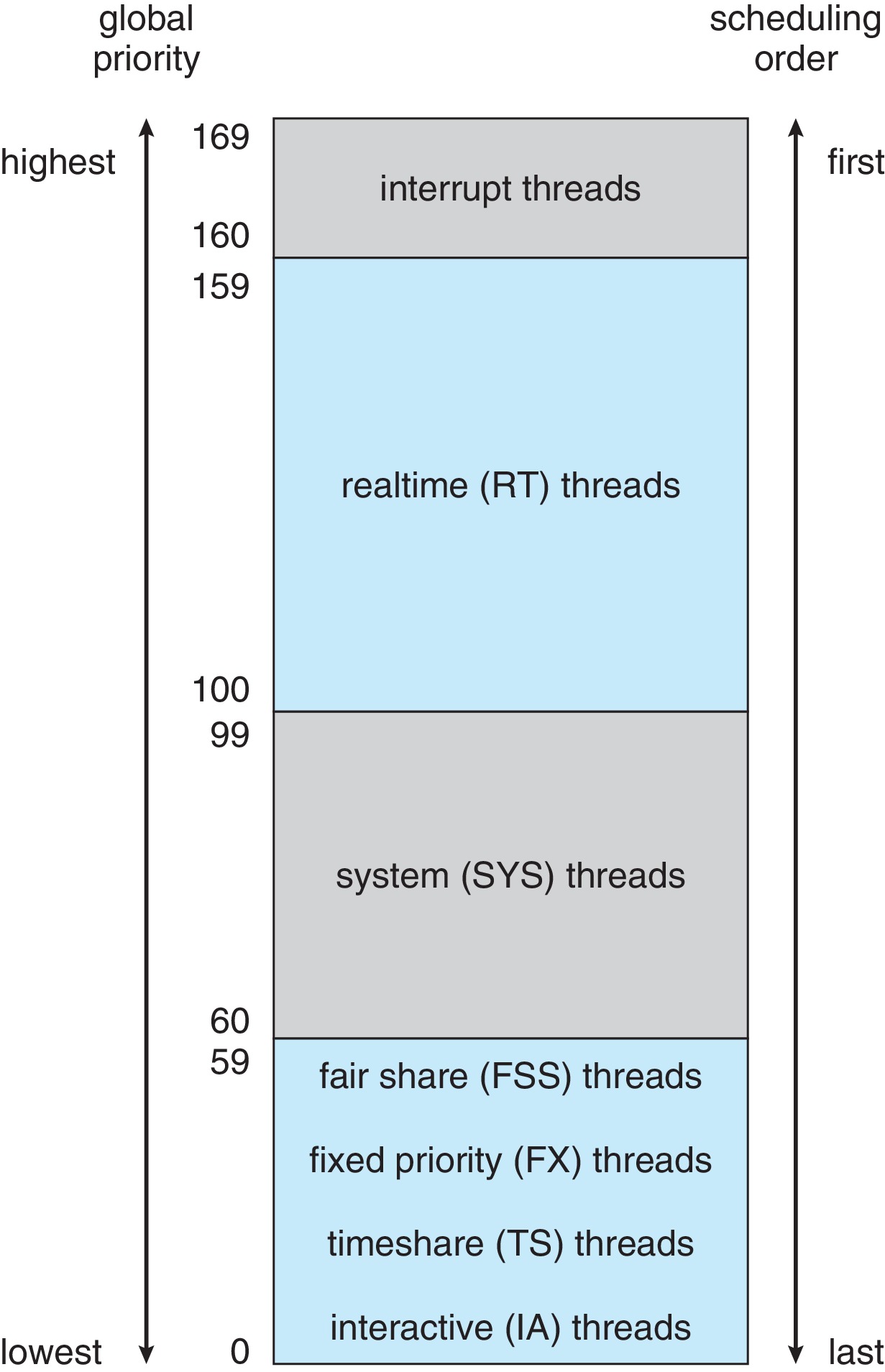

    • Solaris actually maps all the classes and priorities into a single spectrum of global priorities, and the scheduler runs the highest priority process in the ready queue.


• 5.8 Algorithm Evaluation (evaluation of scheduling algorithms)

  How do we select CPU scheduling algorithms?

  First we must choose the goals we want the scheduling algorithm to achieve, such as response time of less than one second, or low variance in wait time.

  Next we need ways to evaluate algorithms to see if they will achieve the chosen goals.





  • 5.8.1 Evaluate scheduling algorithms using Deterministic modeling

    Calculate performance based on specific test inputs -- this can be effective when trying to find a good scheduling technique for a system that tends to run the same kind of program over and over, often with very similar input from run to run -- e.g. payroll processing, census calculations, and weather prediction. This is not the style of most personal computer users, but it is nevertheless not uncommon in business and government.


  • 5.8.2 Evaluate scheduling algorithms using Queuing Models


    • Prepare by gathering system statistics.
      • distribution of CPU and I/O bursts
      • distribution of job arrival-time


    • Do queuing network analysis -- get figures for things like average queue lengths and waiting times.


    • The mathematics can be difficult so often researchers make simplifying assumptions.


    • Naturally the results may be "weaker" because of the simplifying assumptions.

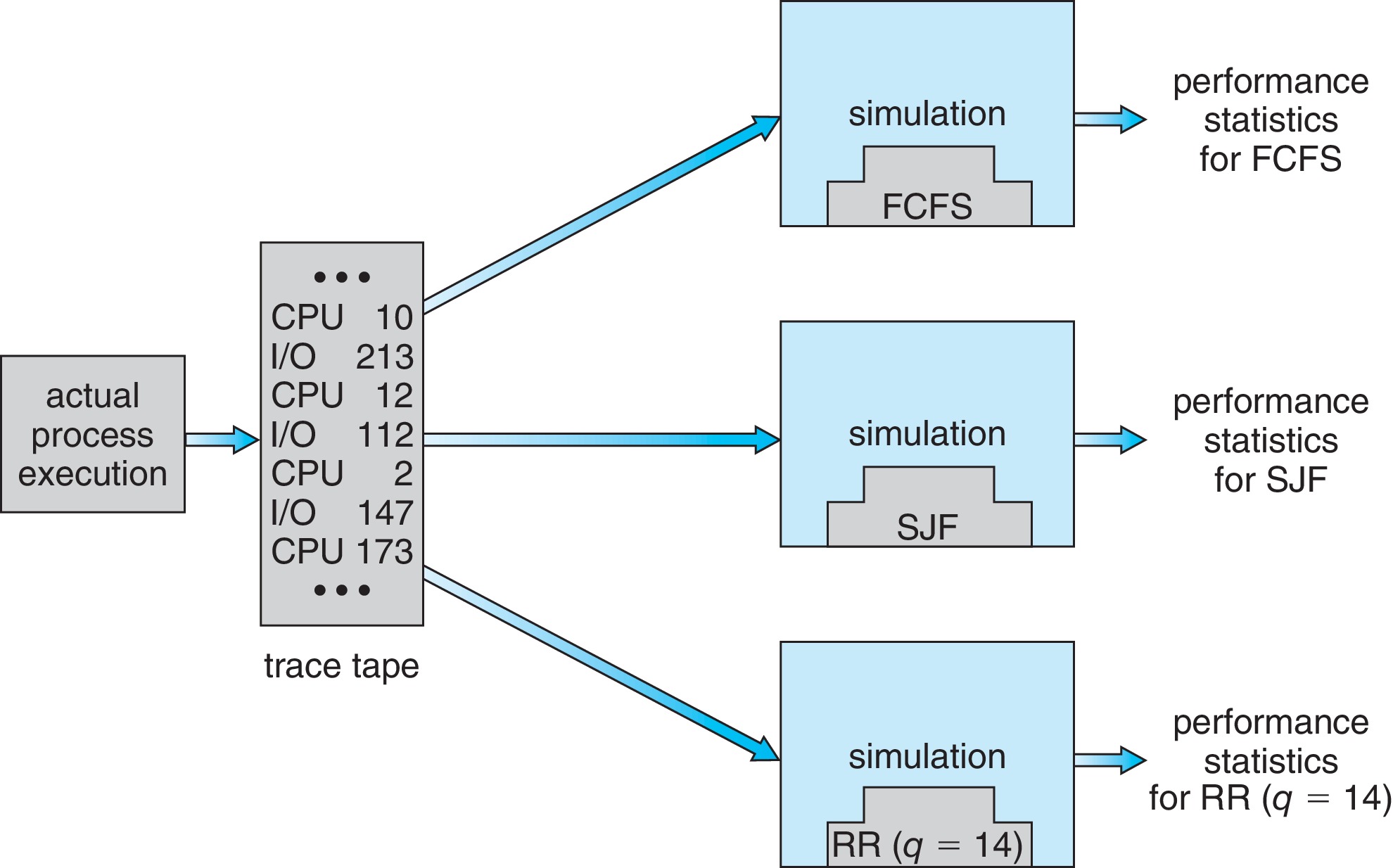

  • 5.8.3 Evaluate scheduling algorithms using Simulations


    • Represent major components and activities of the system with software functions and data structures.


    • Use a variable to represent a clock and update system state variables after each "tick."


    • Measure desired characteristics of the (simulation of the) system.


    • Use random numbers and assumed distributions to produce inputs to the system, or use traces from actual running systems.


    • Trace tapes have the advantage of making it possible to compare different algorithms on the exact same inputs.


    • Random numbers and assumed distributions may not capture enough information such as correlation in time between different kinds of events.


    • Traces can take up a lot of space on secondary storage.


    • Simulations can be expensive to code and require long periods of time to run.





  • 5.8.4 Evaluate scheduling algorithms by Implementation

    Implement scheduling algorithms on an actual system and measure their performance.


    • There are high costs of coding and system modification.


    • Inconvenience to users may be considerable.


    • User behavior may change in response to new scheduling algorithm so the benefits of the algorithm may not persist.


    • It may be useful to allow managers and users to "tune" the scheduling policy of the running system, or to provide API functions to modify priorities.


    • Solaris has a dispadmin command for tuning the scheduling policy by changing parameters of schedule classes. Java, POSIX, and Windows APIs have functions for changing the priority of a thread.
