Notes On Chapter Ten -- Modulation and Modems

• 10.0 Study Guide


  • Know the terms and concepts: carriers, frequencies, propagation, analog and digital modulation, amplitude modulation, frequency modulation, phase shift modulation, amplitude shift keying, frequency shift keying, phase shift keying, modulators, demodulators, modems, and dialup modems.
  • Understand how engineers try to get higher data rates by combining different modulation schemes on the same signal.


• 10.1 Introduction


  • How information is used to change a high-frequency electromagnetic wave, and
  • Why that is important


• 10.2 Carriers, Frequency, and Propagation


  • Depending on the medium there will be certain frequencies that propagate better than others.
  • This is a common way of getting good performance: Place a continuously oscillating "carrier" electromagnetic wave on a medium - one that propagates well - and transmit information by making small changes to the carrier.


• 10.3 Analog Modulation Schemes


  • The small changes made to the carrier are called "modulation"
  • Basically there are only three changes one can make to a wave:
    • Amplitude modulation (AM)
    • Frequency Modulation (FM)
    • Phase Shift Modulation




• 10.4 Amplitude Modulation

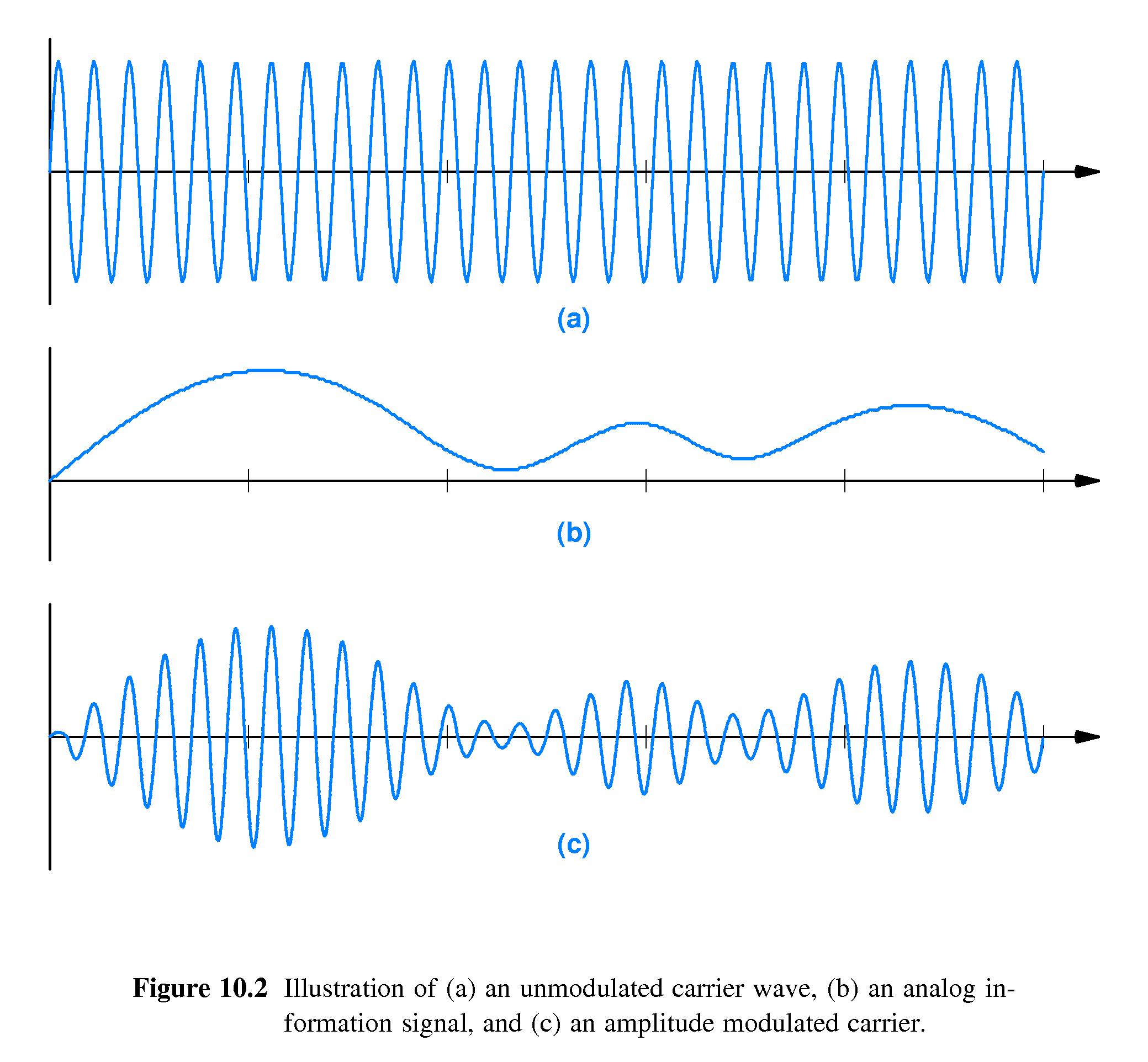

  • The sender varies the amplitude of the carrier in proportion to the desired information signal.
  • When AM is used to carry an analog signal, the "envelope" of the modulated wave has the shape of the signal.




• 10.5 Frequency Modulation

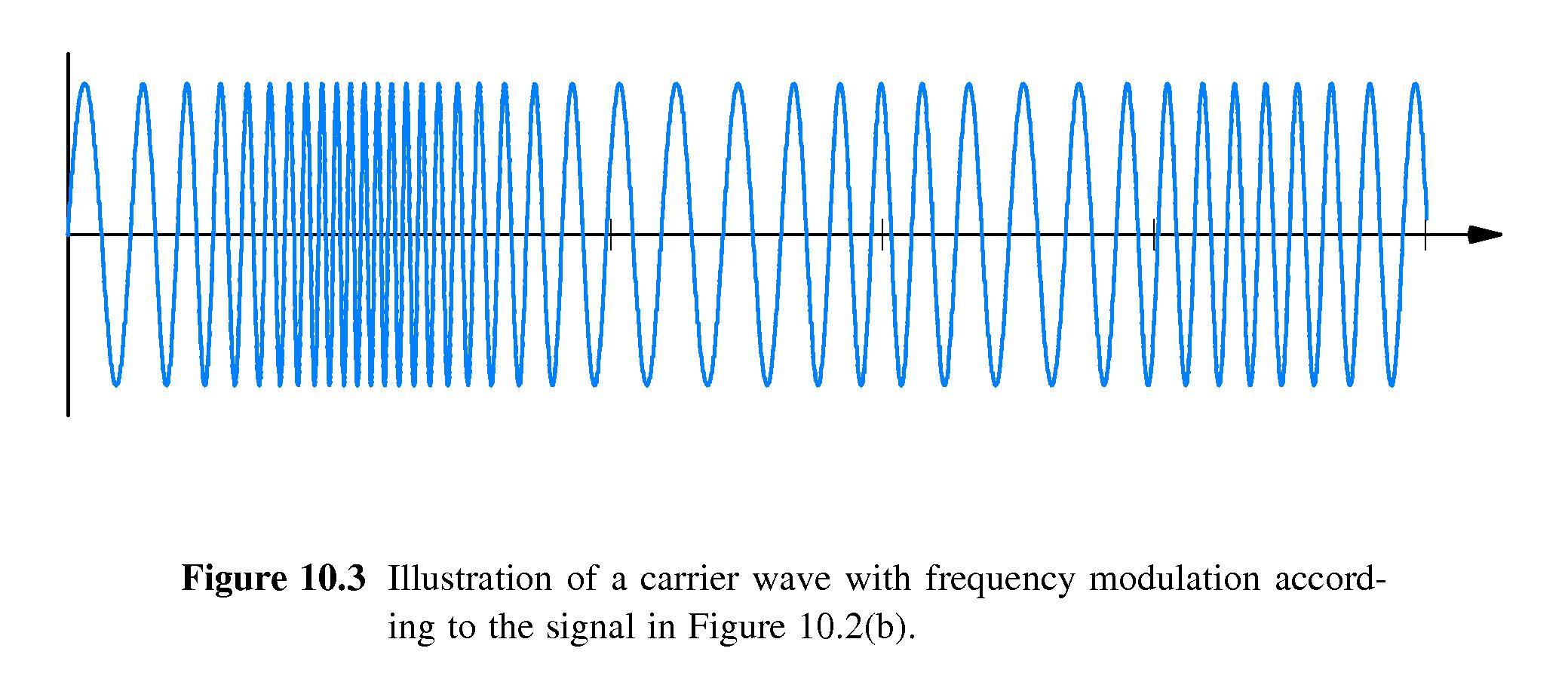

  • Using FM, the sender slightly increases the frequency of the carrier corresponding to where the information signal is strong, and decreases it where the signal is weak.




• 10.6 Phase Shift Modulation

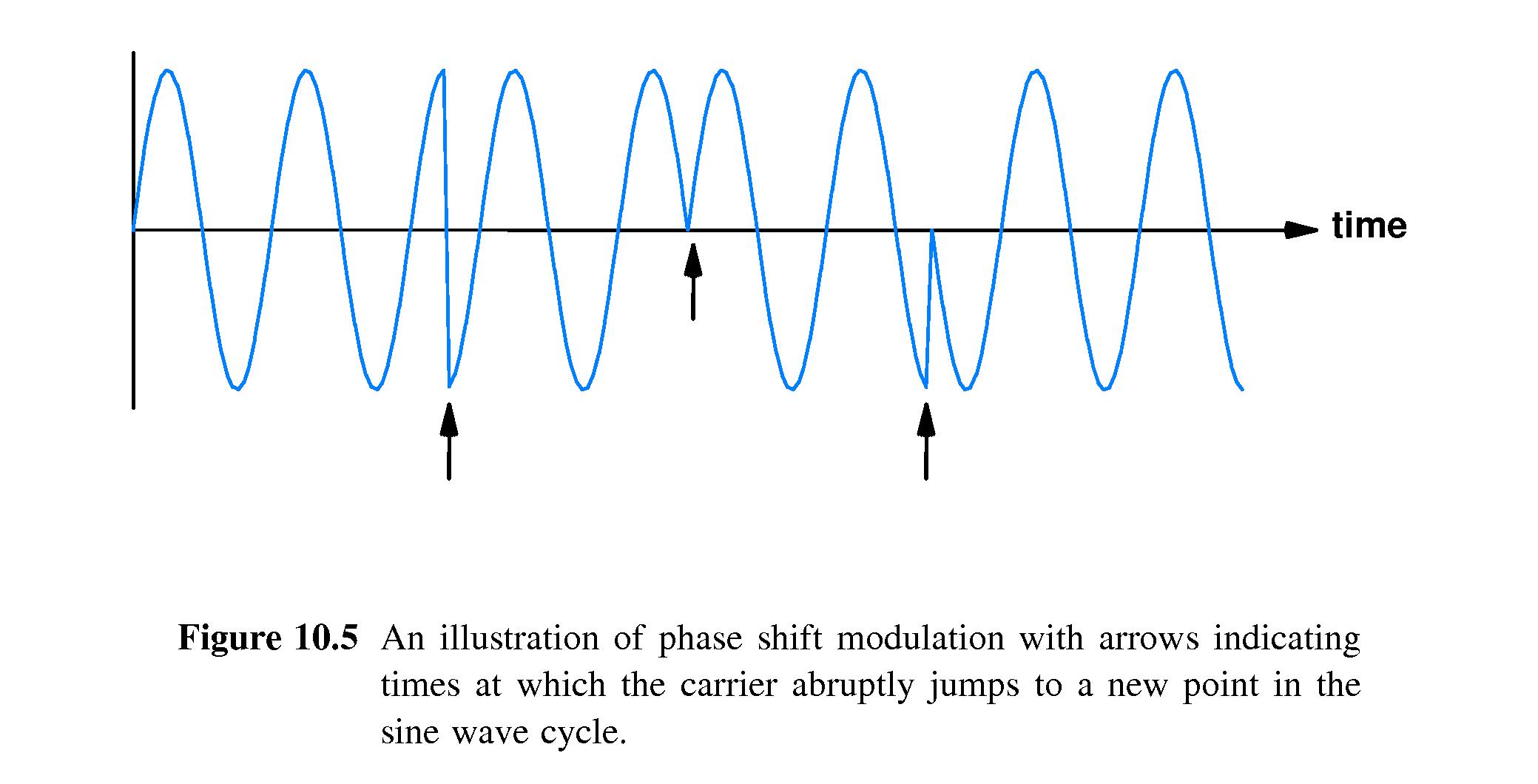

  • Phase shift modulation changes "the offset from a reference time at which the sine wave begins." In other words, it "slides" the waveform forward or backward slightly.
  • It is difficult to distinguish from FM in the case of an analog signal, so phase shift modulation is mostly used on digital signals.


• 10.7 Amplitude Modulation and Shannon's Theorem


  • Unlike the exaggerated depiction of figure 10.2(c), AM actually varies the amplitude only slightly, and does not allow the amplitude to approach zero.
  • Lowering the amplitude too much would significantly lower the signal-to-noise ratio, which in turn could lead to lower effective bandwidth.
  • One might visualize the signal getting "lost in the noise."


• 10.8 Modulation, Digital Input, and Shift Keying

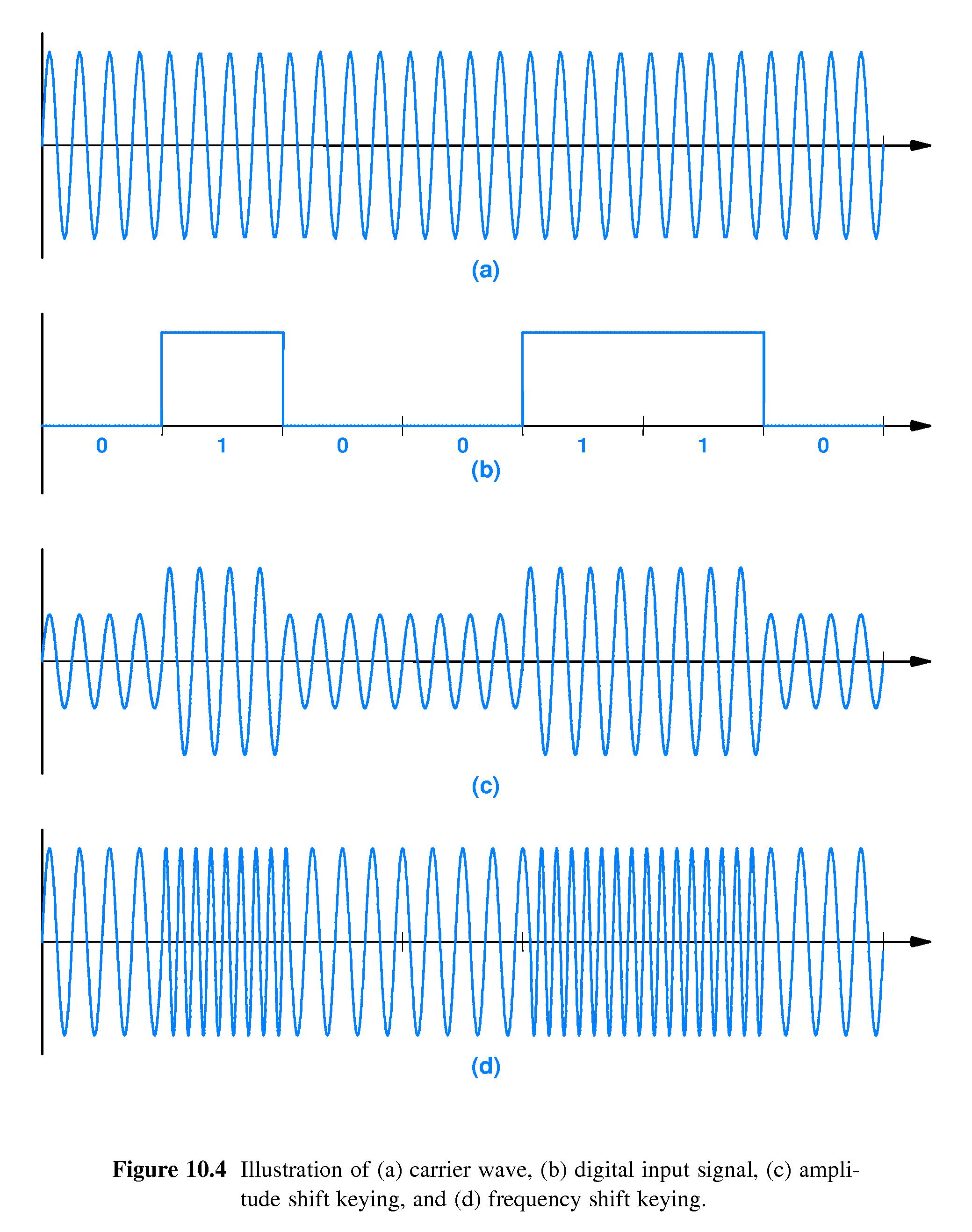

  • When digital data is used to modulate a carrier, it is often called shift keying, instead of modulation - amplitude shift keying (ASK) or frequency shift keying (FSK).
  • There is a small fixed set of possible modulated values.
  • For example, with ASK, there might be only two amplitudes - full amplitude to represent a 1-bit, and some significantly smaller amplitude to represent a 0-bit.
  • With FSK, there might be only two frequencies used.




• 10.9 Phase Shift Keying


  • phase shift keying provides a convenient way to allow more than one bit to be sent during each period of the carrier.
  • For example, the four phase angles of -90, 0, 90 and 180 provide a two-bit code.




• 10.10 Phase Shift and a Constellation Diagram

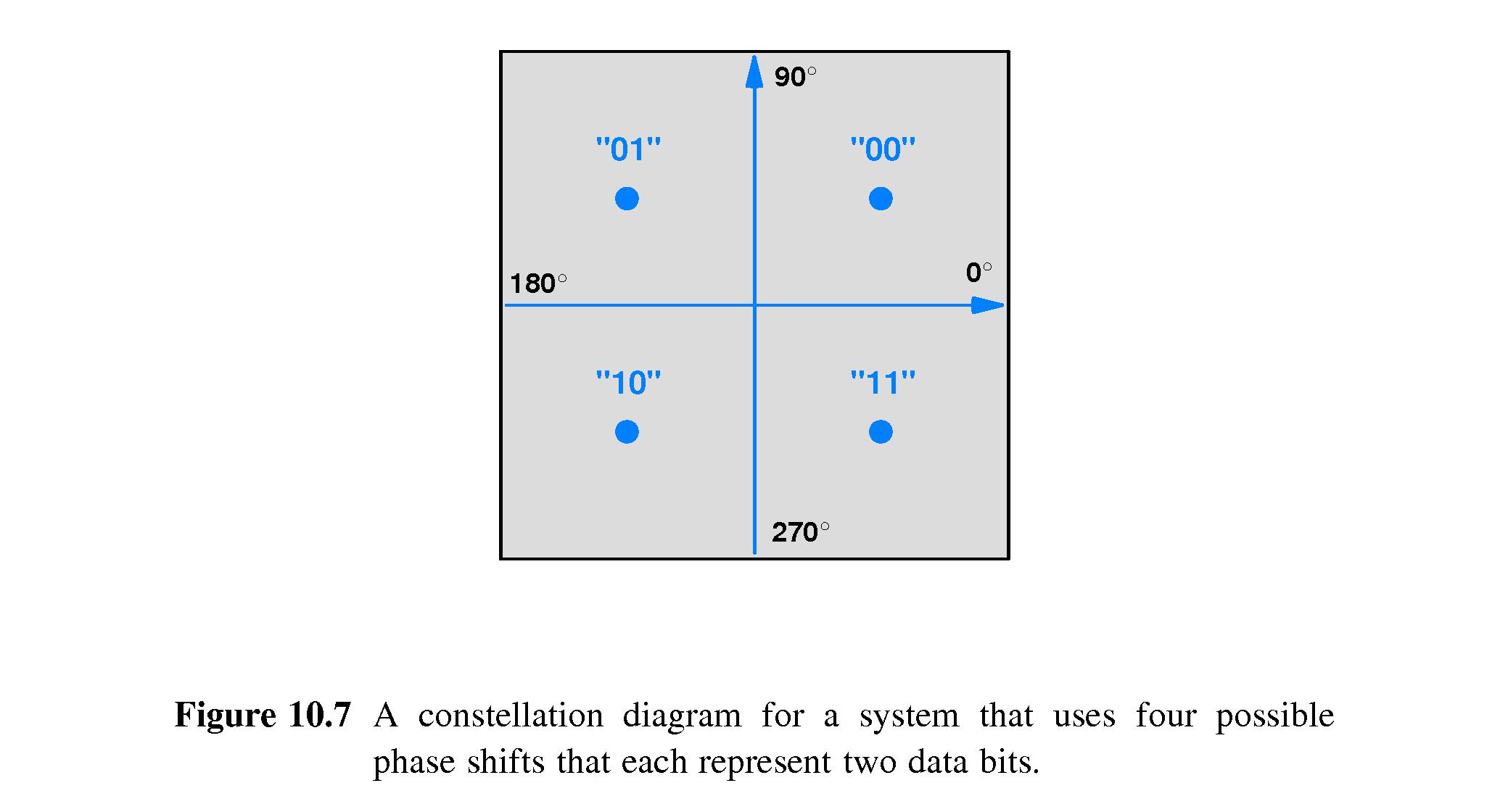

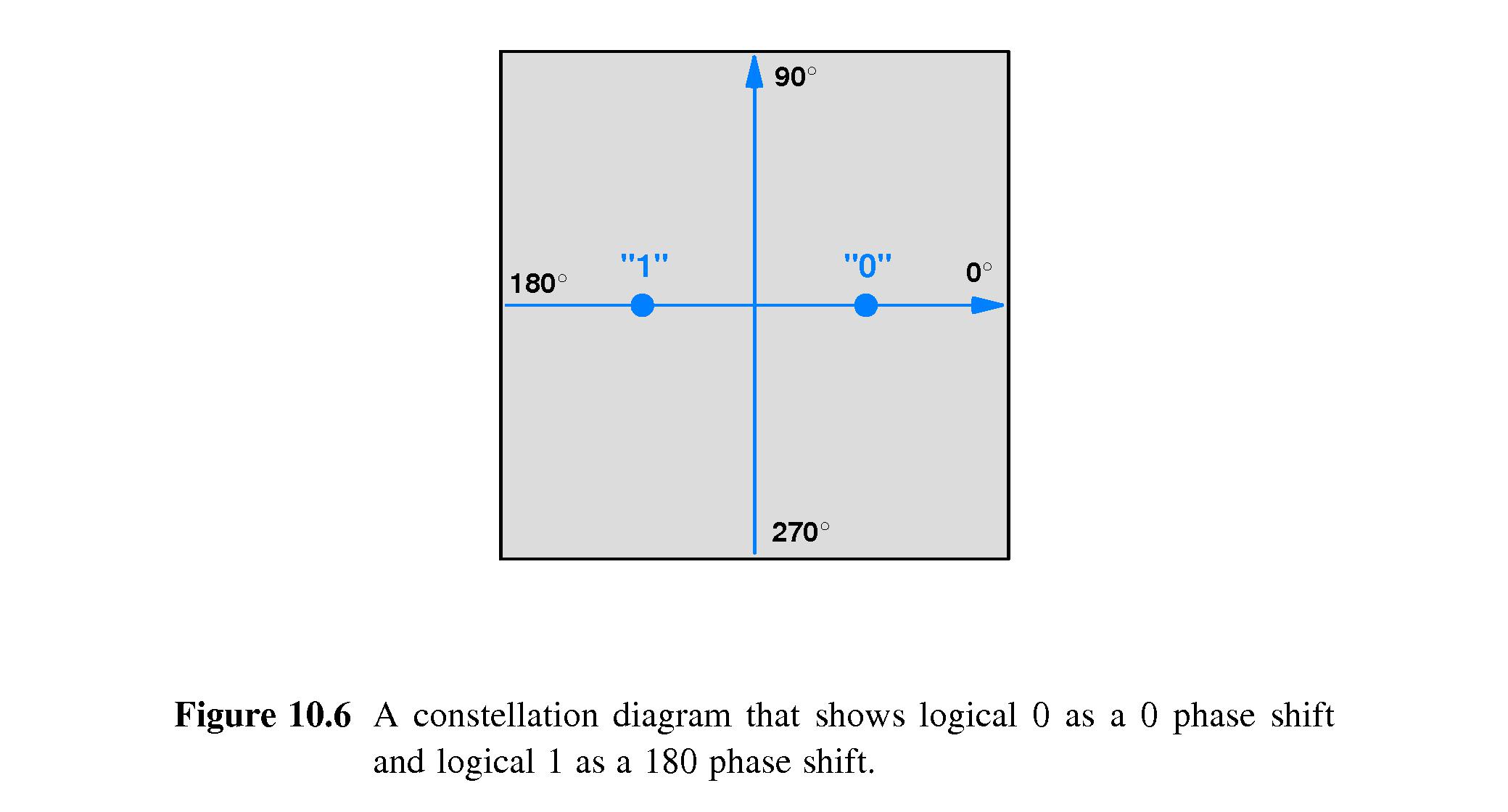

  • The constellation diagrams (figures 10.6 and 10.7) illustrate one- and two-bit codes that can be implemented with phase shifting.
  • Noise and distortion limit the ability of hardware to distinguish among minor differences in phase shifts.
  • Therefore it is not practical to use very many different phase shift keys.






• 10.11 Quadrature Amplitude Modulation

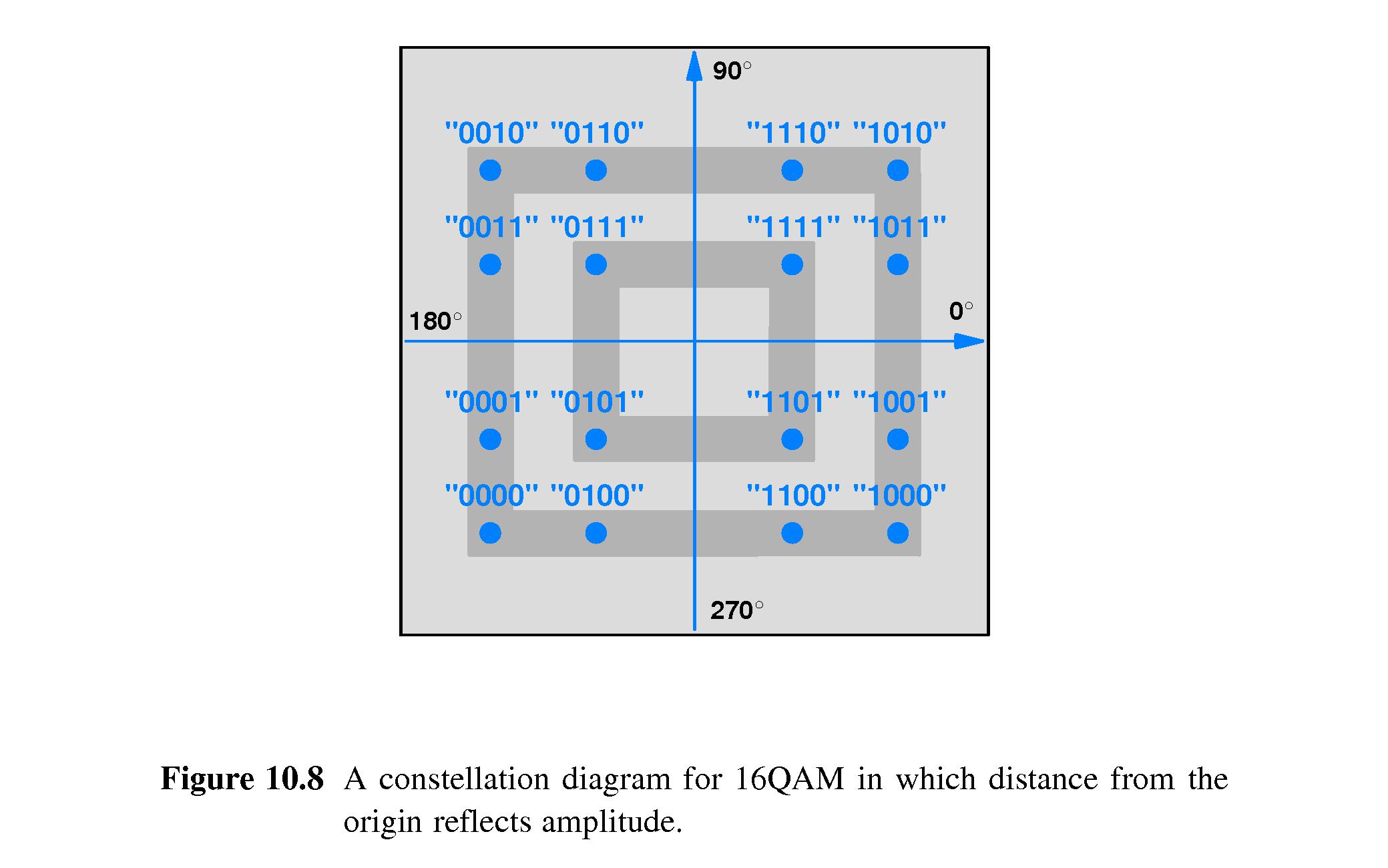

  • QAM schemes combine amplitude and phase shift keying to achieve, for example the sending of a 4-bit codeword in each period of the carrier signal.




• 10.12 Modern Hardware for Modulation and Demodulation

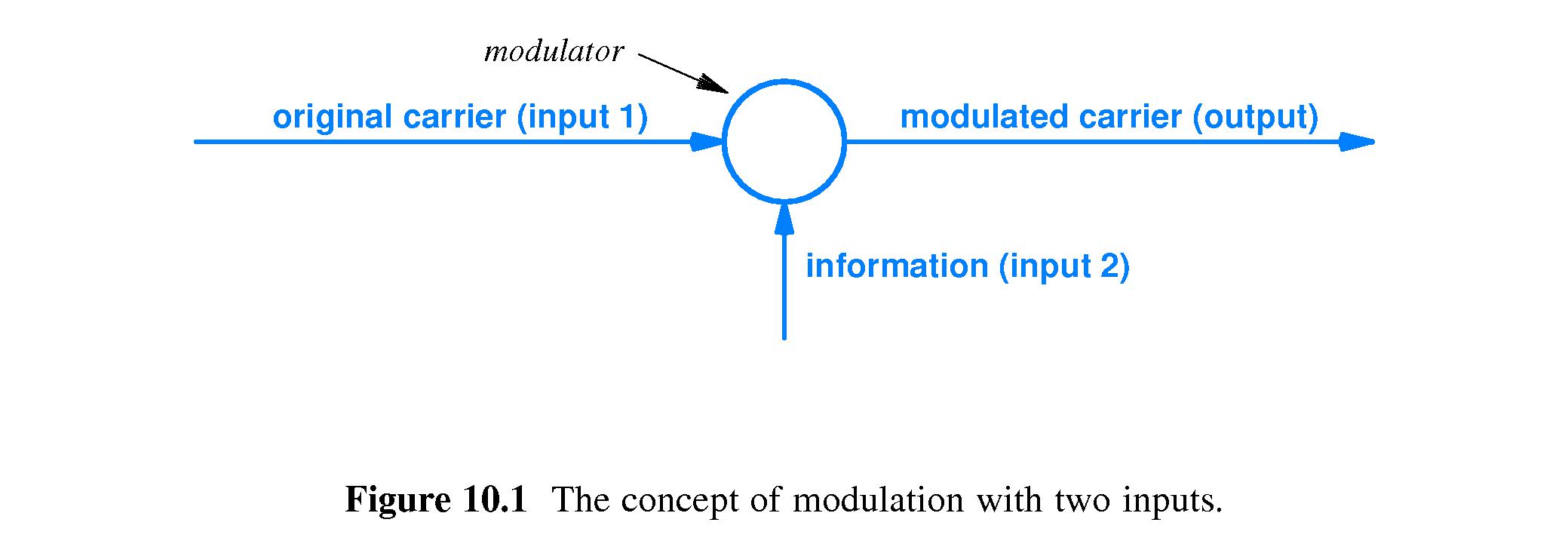

  • A modulator is a device that accepts a stream of data bits and applies the corresponding modulation to a carrier wave (which causes the data to be transmitted on the carrier).
  • A demodulator is a device that inputs a modulated carrier signal and extracts from it the stream of data bits that was used to modulate the carrier. The demodulator outputs the data stream, so it can be used as input to another device.

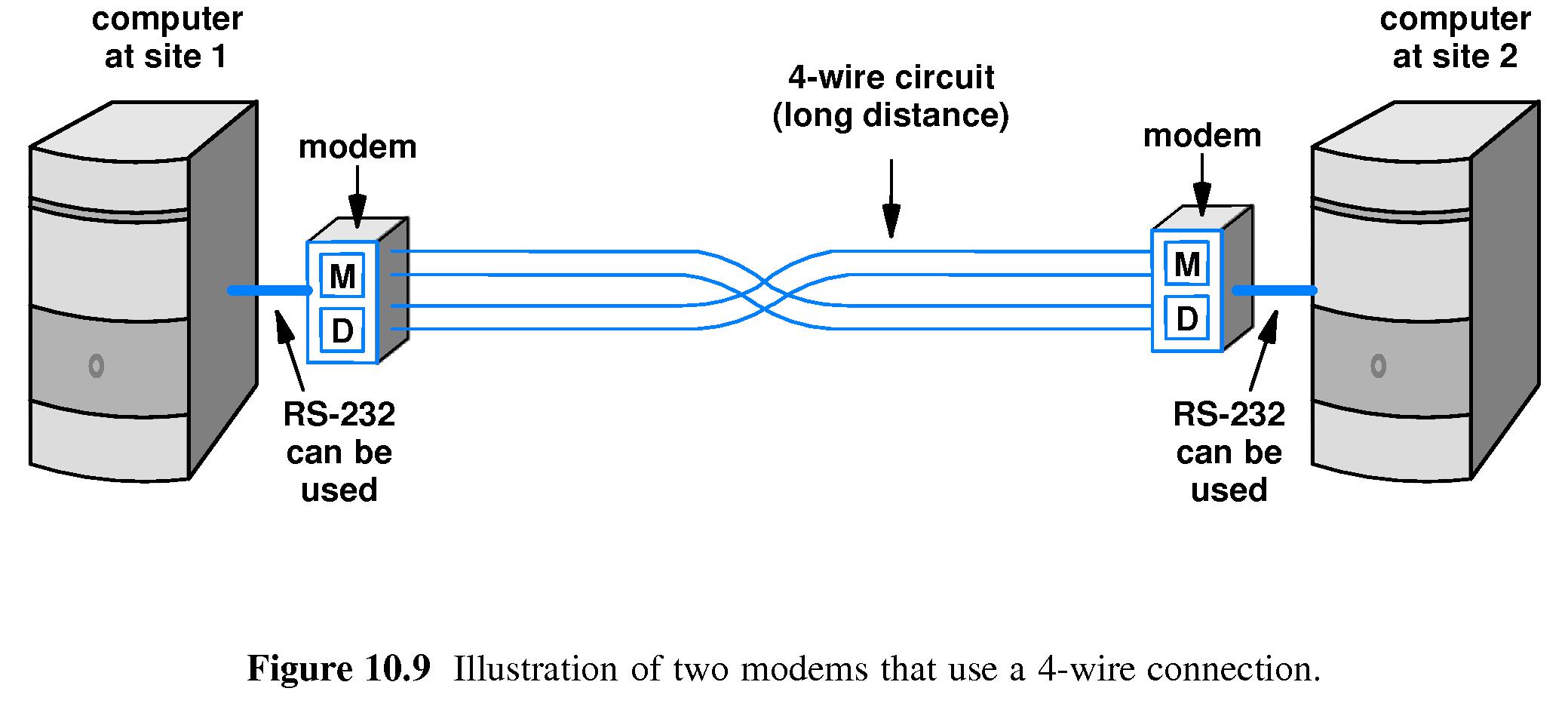

  • Over a full-duplex communication channel using modulation and demodulation of a carrier, a modulator and demodulator are needed on both ends of the channel. Typically the two devices are combined into one unit - called a modem.




• 10.13 Optical and Radio Frequency Modems


  • There are RF modems to use with RF, and
  • Optical modems to use with optical fiber
  • The technology varies with the media, but the principle is the same - modulation of a carrier, and demodulation at the receiving side of the connection.


• 10.14 Dialup Modems


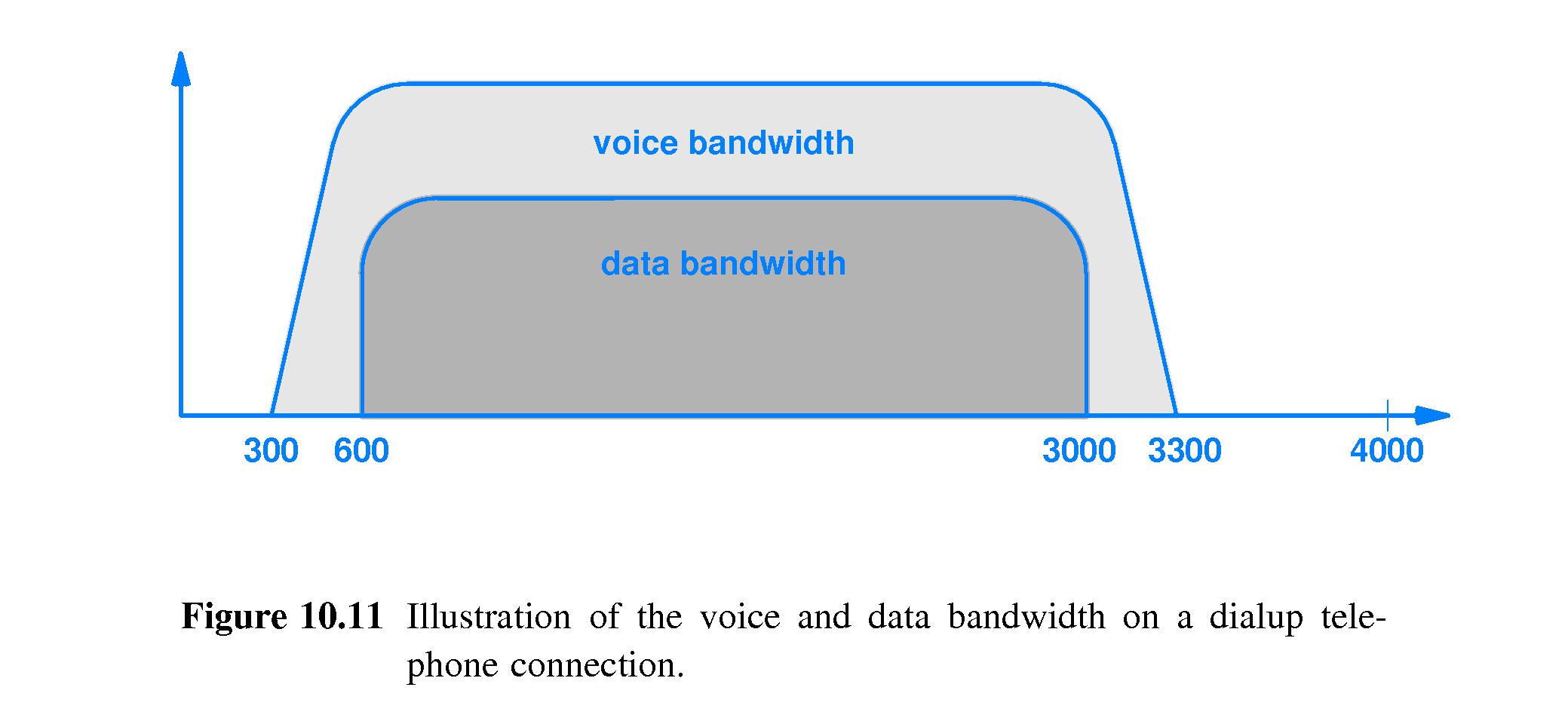

  • A dialup modem modulates a (relatively low-frequency) analog audio carrier according to digital input it receives from, say, a computer.
  • A dialup modem combines the functionality of a modem and a telephone. It can dial telephone numbers and answer incoming telephone calls.
  • When dialup modems were first designed, every stage of transmission of a telephone call was implemented utilizing modulated analog audio carrier technology.
  • Nowadays telephone companies use digital technology internally.

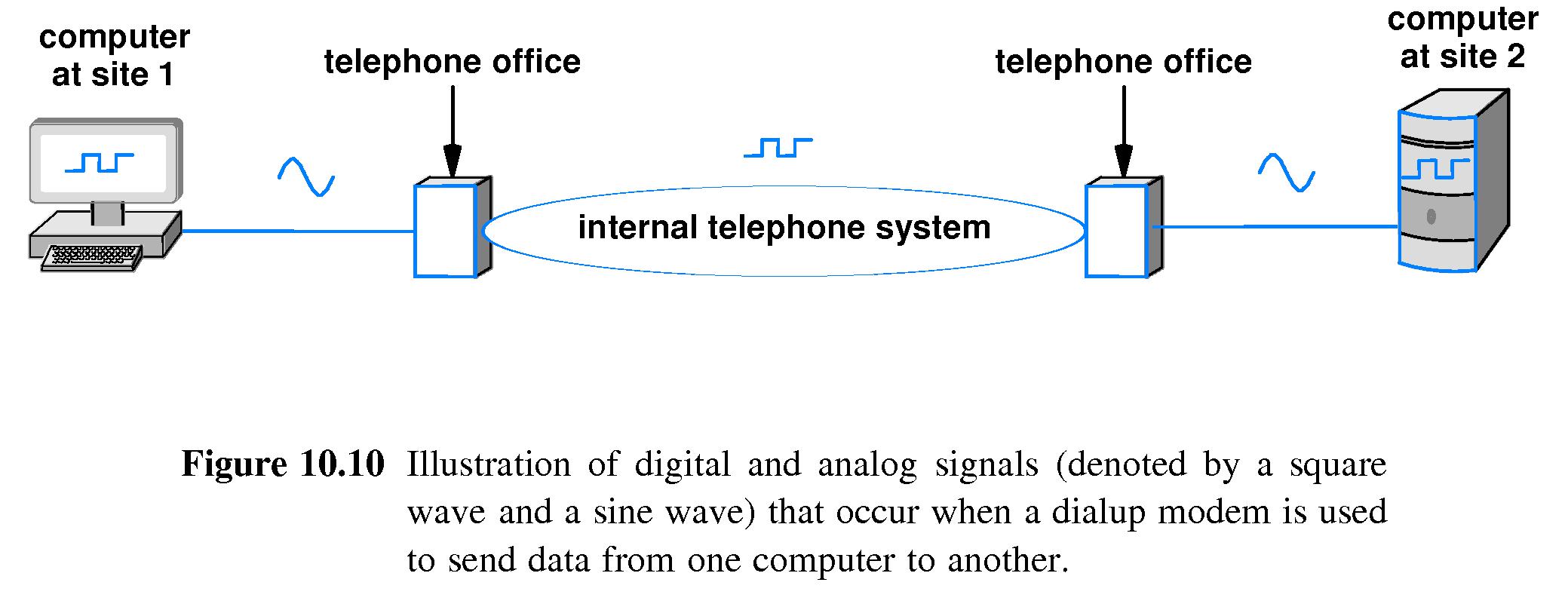

  • Calls that travel a long distance are digitized by telephone company equipment at a local telephone 'station' and transmitted to another station near the other party's telephone. That station translates the digital signal back into audio before relaying it to the other party.
  • So ironically, the digital info from a computer is translated by a modem into analog, and back into digital by the telephone company equipment. (Of course, the digital formats used by the computer and the telephone company are not compatible, so some kind of translation would be needed in any case.)
  • When a modem is part of the circuitry inside a computer it is called an internal modem. If it plugs in to the outside of a computer, it's an external modem




• 10.15 QAM Applied to Dialup


  • QAM is used with modern dialup modems to achieve higher bit rates.




• 10.16 V.32 and V.32bis Dialup Modems

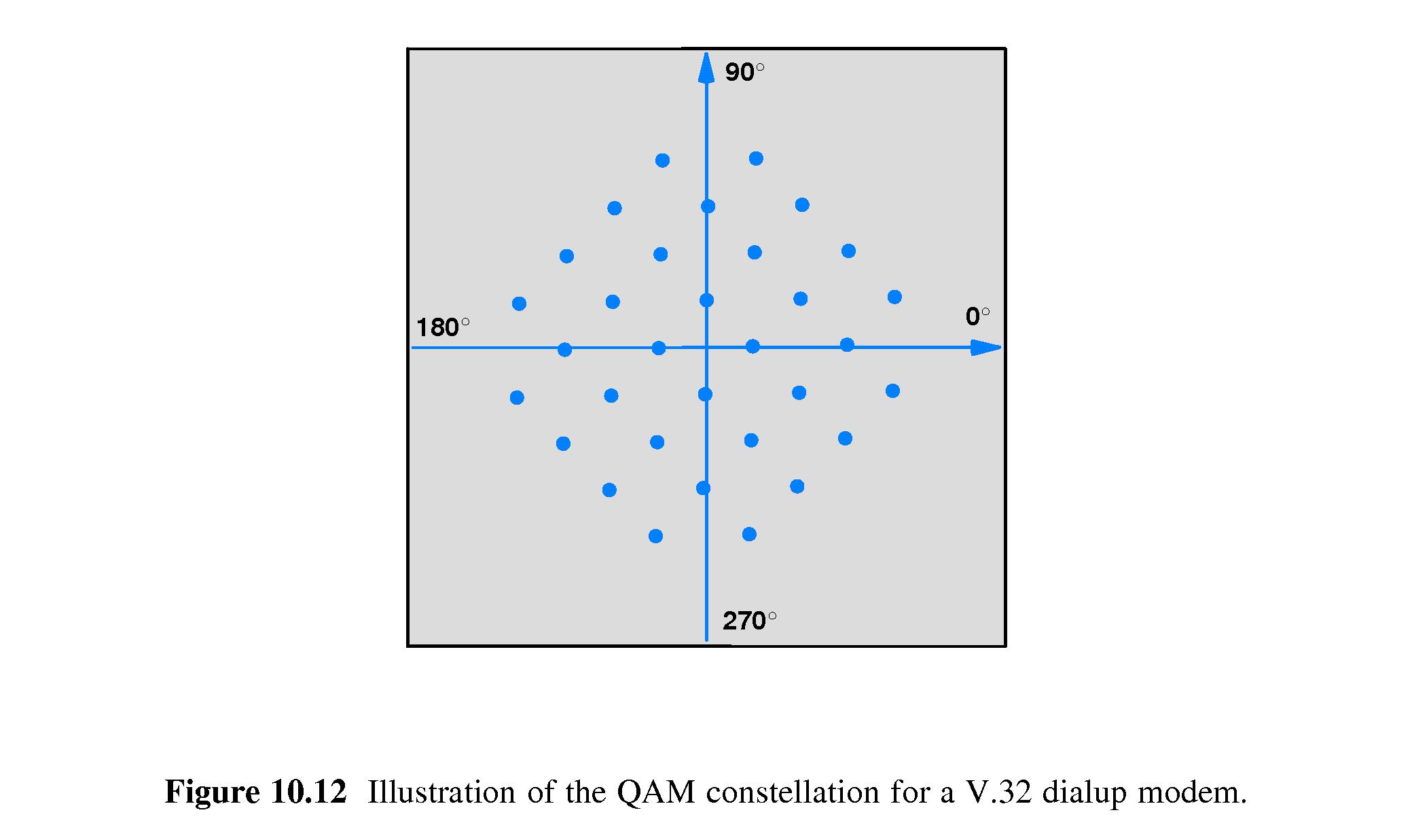

  • The V.32 dialup modem standard uses 32 combinations of amplitude shift and phase shift to achieve a full-duplex data rate of 9600 bps.

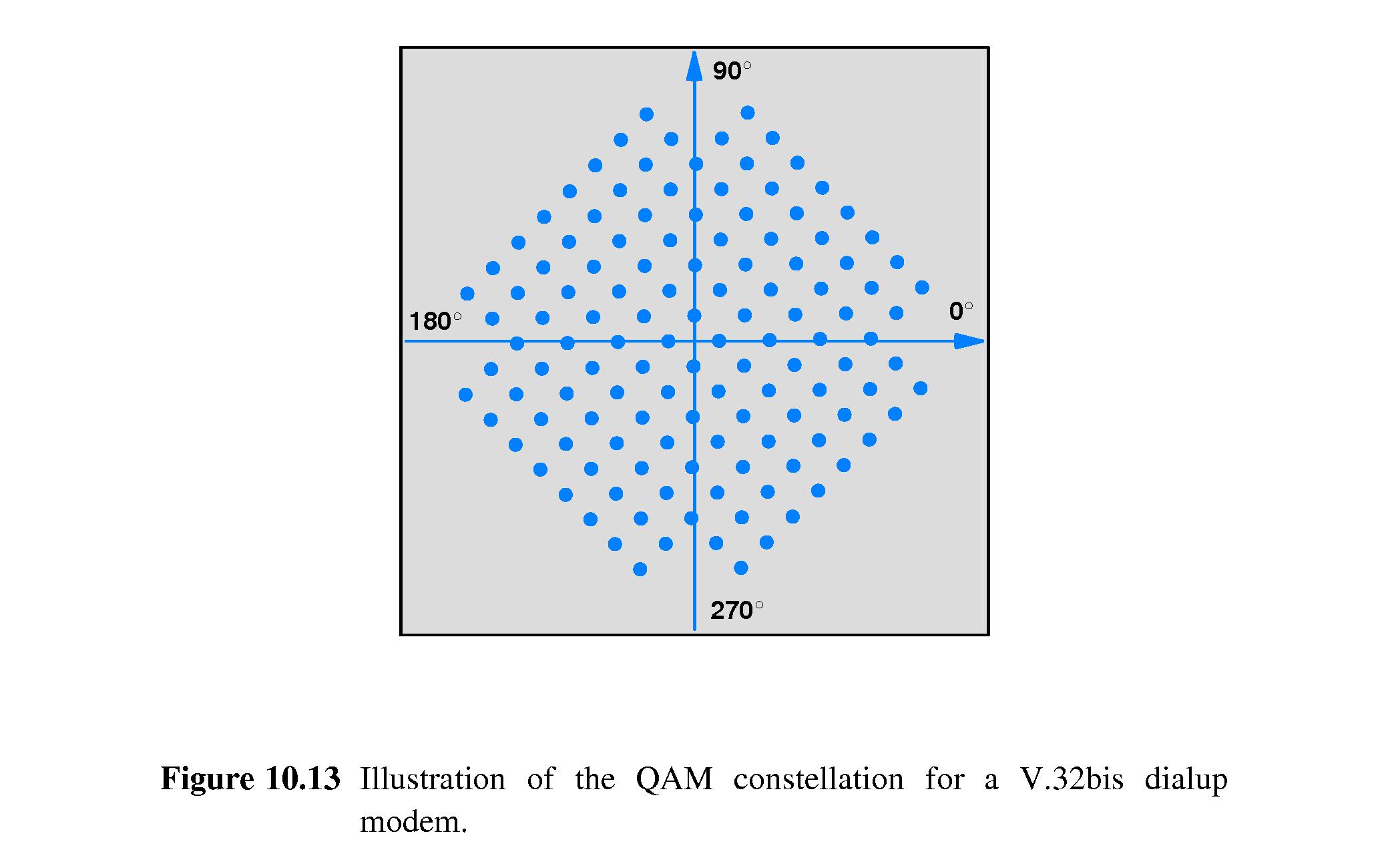

  • The V.32bis standard employs 128 combinations of phase shift and amplitude shift, and achieves a data rate of 14,400 bps (also full-duplex).
