Notes On Chapter Twenty-Five -- TCP: Reliable Transport Service

• 25.0 Study Guide


  • Understand that TCP is a connection-oriented, Point-to-Point, Reliable, Full Duplex, Stream Interface protocol with reliable connection and shut down. Understand some of the details of each thing in the foregoing list of characteristics.
  • Understand what problems have to be solved to make TCP reliable: unreliable communication, end system reboot, heterogeneous end systems, and congestion.
  • Understand how sequencing handles duplication and out-of-order delivery.
  • Understand how positive acknowledgement with retransmission handles the problem of lost packets.
  • Understand how unique connection identifiers are used to avert replay errors.
  • Understand how sliding window flow control allows data to be sent at a relatively high rate, but not so fast that receivers are overwhelmed.
  • Remember that TCP monitors round-trip delay time and adapts its retransmission timeout values accordingly.
  • Remember details of how TCP's back off and slow start methodology handles congestion (see notes on section 25.13).


• 25.1 Introduction


  • Transport protocols in general
  • TCP in particular
  • Services provided by TCP
  • How TCP provides reliable delivery


• 25.2 The Transmission Control Protocol


  • The Transmission Control Protocol, TCP provides reliable transport service on the Internet.
  • An application using TCP can treat the Internet pretty much like an abstract I/O system - for example, like a file system. That is not the case for applications that use a best-effort connectionless service such as UDP. Therefore TCP makes things easier for network application programmers.


• 25.3 The Service TCP Provides to Applications


  • Seven major features of TCP:
    1. Connection Oriented: requires connection creation, use, and tear-down.
    2. Point-to-Point Communication: a connection has exactly two endpoints.
    3. Complete Reliability: ensured complete in-order delivery
    4. Full Duplex Communication: either party can send data any time.
    5. Stream Interface: data sent and received as a continuous stream.
    6. Reliable Connection Startup
    7. Graceful Connection Shutdown: TCP ensures that all data is delivered and both sides are in agreement before their connection is shut down.


• 25.4 End-to-End Service and Virtual Connections

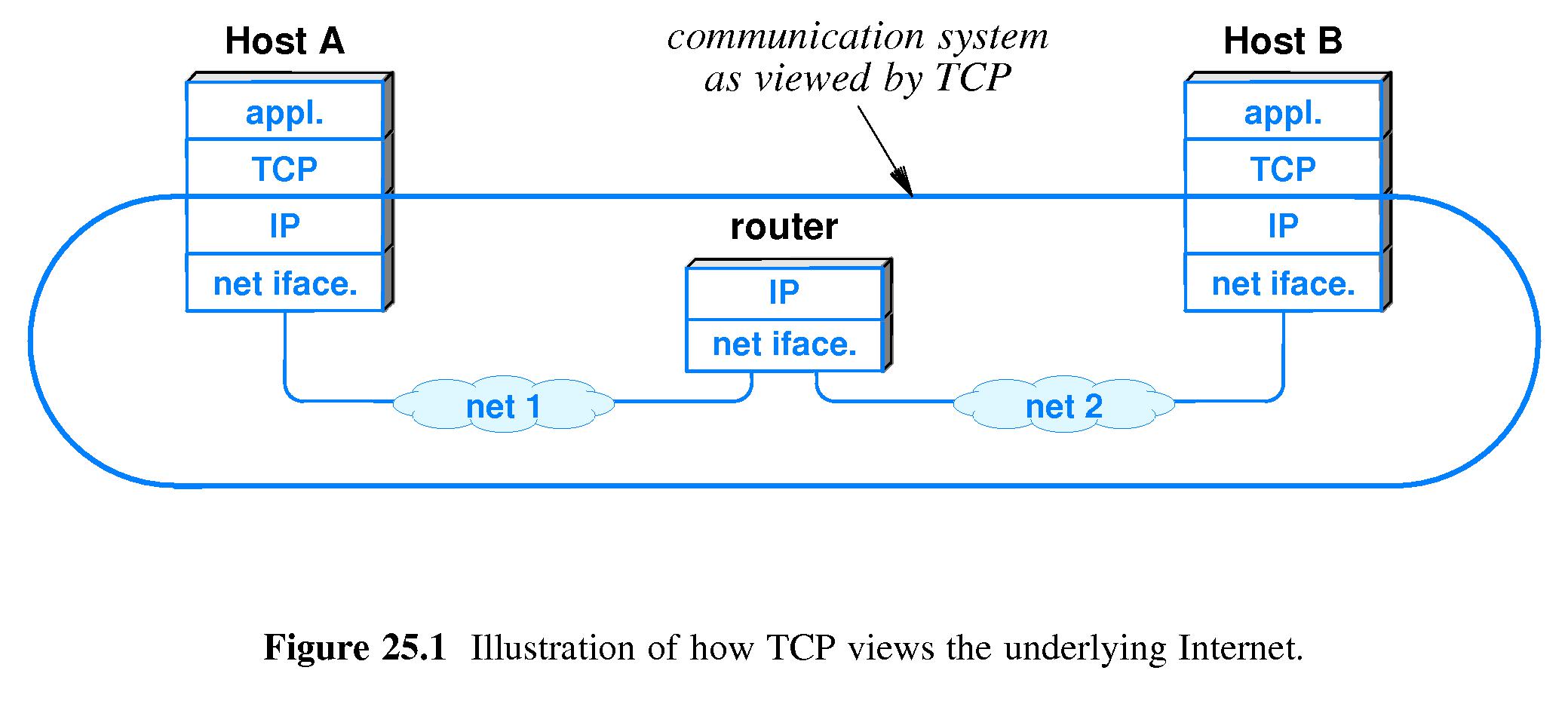

  • Refer to Figure 25.1.
  • TCP is an end-to-end protocol - it provides communication between two applications (processes).
  • TCP is connection-oriented but the connections are virtual.
  • A TCP segment (packet) travels across a physical network encapsulated in an IP datagram.




• 25.5 Techniques that Transport Protocols Use


  • The Major Potential Problems:
    • Unreliable Communication Messages sent across the Internet are subject to loss, duplication, corruption, delay, and out-of-order delivery
    • End System Reboot Communicating hosts can crash and reboot at any time.
    • Heterogeneous End Systems different hosts may differ immensely in the speeds that they can send and receive data.
    • Congestion in the Internet Intermediate switches and routers can be overrun with data.
  • Question: How does TCP detect and recover from such problems?


  • 25.5.1 Sequencing to Handle Duplicates and Out-of-Order Delivery
    • A sender assigns a sequence number to each TCP segment.
    • Receivers use the sequence numbers to make sure that they hand off segments in order to the next layer up. (The receiver stores the sequence number of the last packet received in order, plus a list of packets that have arrived out of order.)
    • Receivers also detect duplicate packets by checking sequence numbers.


  • 25.5.2 Retransmission to Handle Lost Packets
    • TCP uses positive acknowledgement with retransmission.
    • A receiver of a TCP segment sends a short message of acknowledgement (an ACK) back to the sender.
    • The sender has the responsibility to make sure that each segment is received intact.
    • The sender keeps track of how much time has elapsed after it sends each segment. The sender will retransmit the segment if it does not receive an ACK within a certain time limit.
    • The sender will continue in this manner, retransmitting a packet again and again if it continues to be unacknowledged.
    • After a certain number of retransmissions, the sender will eventually 'give up' and "declare that communication impossible."
    • It should be noted that retransmission can result in duplication of packets - which underscores the importance of the fact that TCP is able to deal with duplicate packets.


  • 25.5.3 Techniques to Avoid Replay
    • Replay: refers to the danger that a long-delayed packet from a previous connection will be accepted as part of a later conversation, and the correct packet bearing the same sequence number discarded as a duplicate.
    • If a protocol assigns a unique identifier to each connection, and includes the identifier in each packet, then replays can be detected.
    • If the initial sequence number for a new connection is larger than any sequence number used recently by a previous connection between the same endpoints, then packets from the previous connection won't be confused with packets from the new connection. (See RFC 6528.)


  • 25.5.4 Flow Control to Prevent Data Overrun

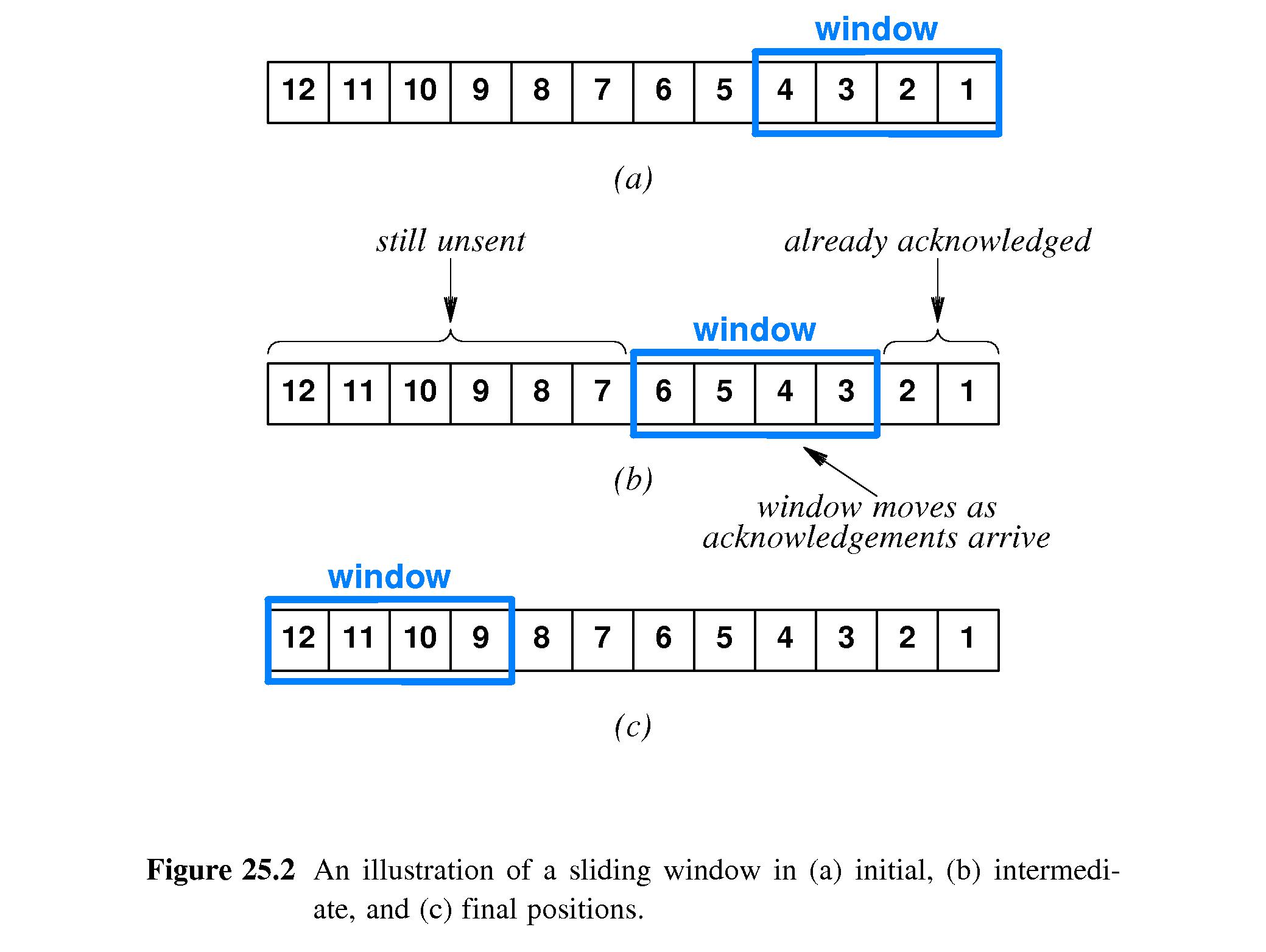

    • Refer to Figures 25.2 and 25.3.
    • The purpose of flow control is to prevent data from being sent faster than receivers can process it.
    • Stop-and-go protocols will do the trick - the sender waits for each packet to be acknowledged by the receiver before sending another packet.
    • However, stop-and-go can slow senders much more than necessary and result in unacceptably low data transfer rates.
    • A sliding window scheme is likely to work as well and produce much higher data rates. The receiver preallocates buffer space for a certain number (the window size) of packets.
    • The sender keeps track of how full the receiver's buffer is.
    • The sender only sends a packet if it is sure there is room for it in the receiver's buffer.
    • Suppose the sender knows that the receiver does not keep ACK'd packets in its buffer.
    • Then it is safe for the sender to keep sending packets until the number of un-Ack'd packets is equal to the buffer size .
    • At that point, the receiver's buffer could be full, or about to become full so the sender must pause until more packets are ACK'd.
    • Under ideal conditions, the sender can send a window's worth of packets at a time, then receive an ACK for all of them almost as quickly as the round-trip time of a single message between sender and receiver. At that point the sender can send another window's worth of packets, and so on, repeating indefinitely. This would result in a data rate of about

      T_W = T_g X W

      Where T_W is the data rate that can be achieved with a sliding window of size W, and T_g is the data rate that can be achieved with stop-and-go processing.
    • Thus under ideal conditions, if T is the time it takes for a datum to travel from the sender to the receiver and back, the sender may be able to send almost a window's worth of data in every time slot of length T.
    • In contrast, using stop-and-go, the sender could only send one packet in each time slot of length T.
    • Of course the amount the sender can send in a given time is also limited by the available bandwidth. So the approximation above would be more accurate if written this way:

      T_W = min { C, T_g X W }

      where C is the maximum data rate of the communication channel.








• 25.6 Techniques to Avoid Congestion

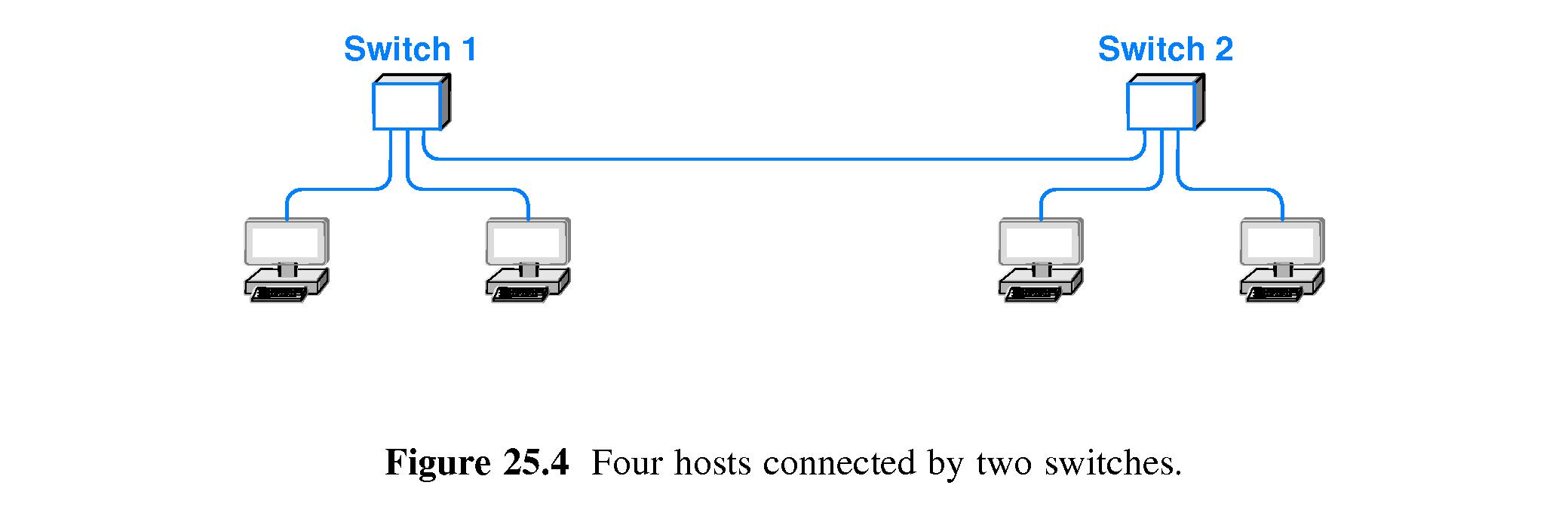

  • Refer to Figure 25.4
  • Congestion is a very real and constant 'threat' on today's networks.
  • The basic reason is that routers and links often do not have the ability to handle the amount of traffic that can potentially be injected into them.
  • One approach is to create a scheme wherein devices downstream send messages back to the sources telling it to slow down.
  • Sources can react a little faster if they just temporarily reduce their window size when an acknowledgement times out. The reason is usually congestion.
  • One advantage of relieving congestion quickly is that routers and hosts 'drop' packets when their buffers overflow. More dropped packets mean more retransmission, hence more load on the network.




• 25.7 The Art of Protocol Design


  • Protocol design details must be chosen carefully.
  • Sliding Window and Congestion control algorithms are examples of pieces of a protocol design that can potentially interact and conflict in complex ways, because one is designed to speed up data flow, and the other is designed to slow it down.


• 25.8 Techniques Used in TCP to Handle Packet Loss


  • Refer to Figure 25.5.
  • In designing a protocol such as TCP, one has to be careful when programming how long TCP will wait for an ACK before retransmitting a packet.
  • Waiting too long leads to less utilization of the network and lost time on the sending and receiving hosts. Not waiting long enough means unnecessarily loading the network with duplicate packets.
  • To calculate a reasonable wait time, one should consider not only the distance to the destination, but the delay due to traffic congestion.




• 25.9 Adaptive Retransmission


  • TCP monitors round-trip delay on each connection and adapts its timeout values according to changing conditions.
  • TCP uses a formula to set timeouts that allows it to be conservative during periods when delay is fluctuating.


• 25.10 Comparison of Retransmission Times


  • Refer to Figure 25.6.
  • During times when delay remains fairly constant, the timeout maintained by TCP for a connection is an amount slightly higher than the current mean round-trip delay.
  • Waiting this long is enough to conclude that the packet was probably lost. However it's not likely to be a wait that is much longer than necessary.




• 25.11 Buffers, Flow Control and Windows


  • Refer to Figure 25.7.
  • TCP flow control follows the sliding window paradigm describer earlier, but not in every detail.
  • The TCP window is measured in bytes.
  • TCP does not use ACK's as an indication of current window size. It uses a separate mechanism called a window advertisement
  • A receiver sends a window advertisement with each acknowledgement.
  • When the receiver runs out of buffer space it advertises a zero window




• 25.12 TCP's Three-Way Handshake

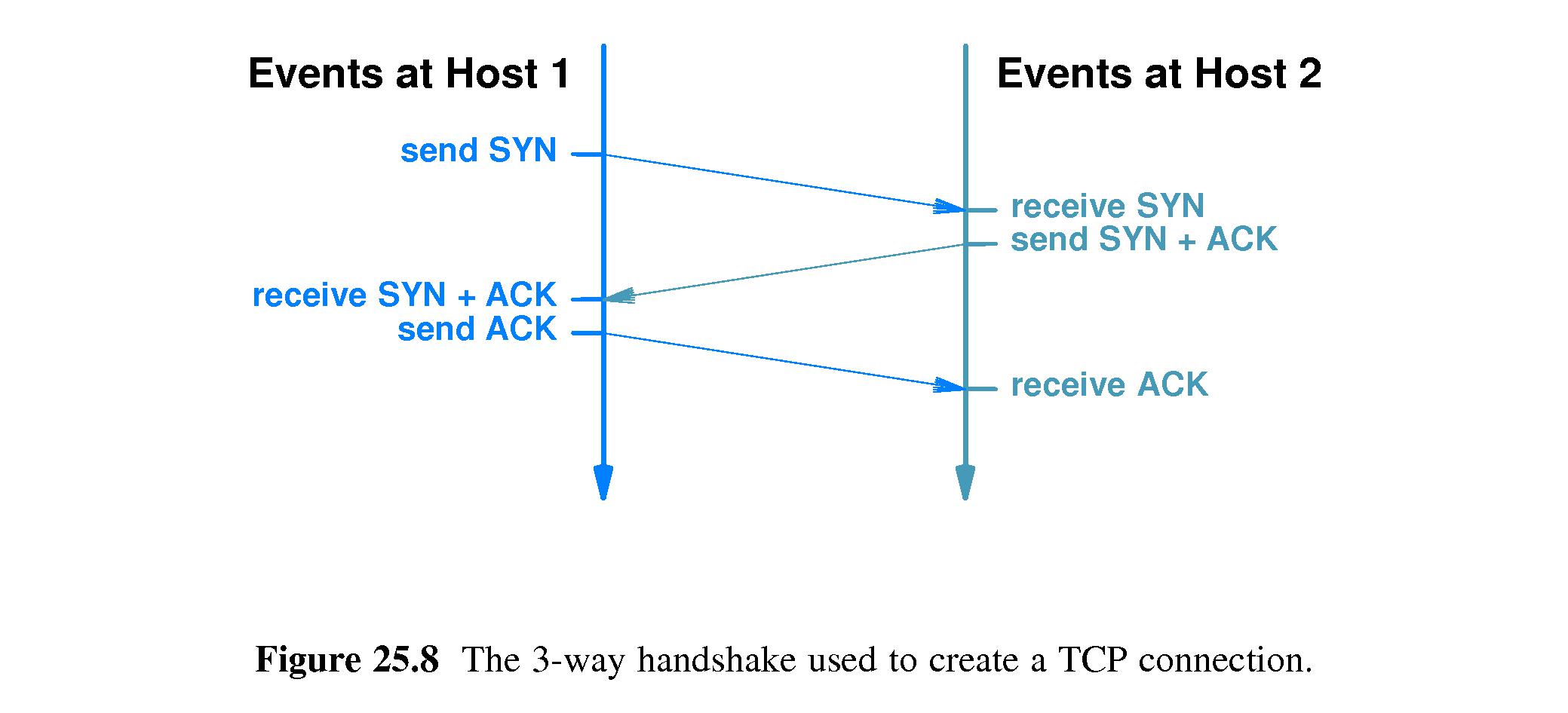

  • Refer to Figure 25.8.

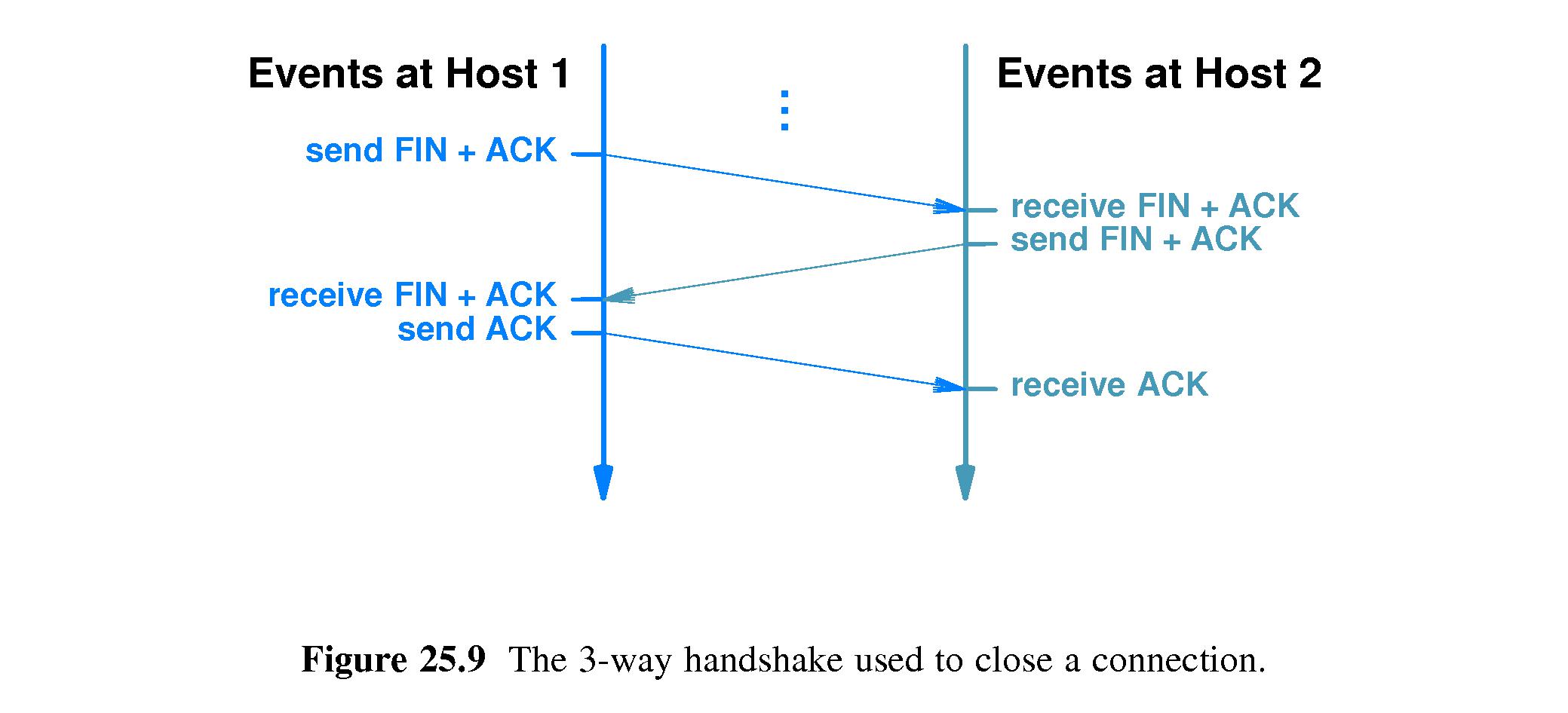

  • Refer to Figure 25.9.
  • When TCP either establishes or closes a connection, it uses a sequence of three messages.
  • These sequences are called three-way handshakes.
  • When establishing a connection, each side is required to generate a random 32-bit number called a sequence number. Sequence numbers serve as connection identifiers for use in avoiding replay problems.






• 25.13 TCP Congestion Control


  • When starting a new connection or when a message is lost, TCP backs off - it sends nothing for a while except one message.
  • If the first message is ACK'd without loss, TCP sends two additional messages.
  • If those are ACK'd normally it sends four more, and so on until reaching a point where it is sending half the window size.
  • After that it ramps up slowly and linearly until reaching the window size (assuming there's no sign of congestion).
  • When TCP connections collectively use this slow start methodology on the Internet, it works to alleviate congestion. It helps avoid sending a lot of packets into congested areas.


• 25.14 Versions of TCP Congestion Control


  • Versions of TCP/IP congestion control by tradition are named after cities in Nevada.
  • Most systems are now running NewReno


• 25.15 Other Variations: SACK and ECN


  • (SACK)
    • The idea of SACK is to allow receivers to specify exactly which segments have to be resent.
    • It turned out not to usually work any better than the old cumulative acknowledgment
  • (ECN)
    • The idea of ECN is for routers to mark packets that experience congestion and for receivers to notify the senders about the marks when returning ACKs.
    • ECN is not used much. The information tends to be stale when it gets back to the senders.


• 25.16 TCP Segment Format

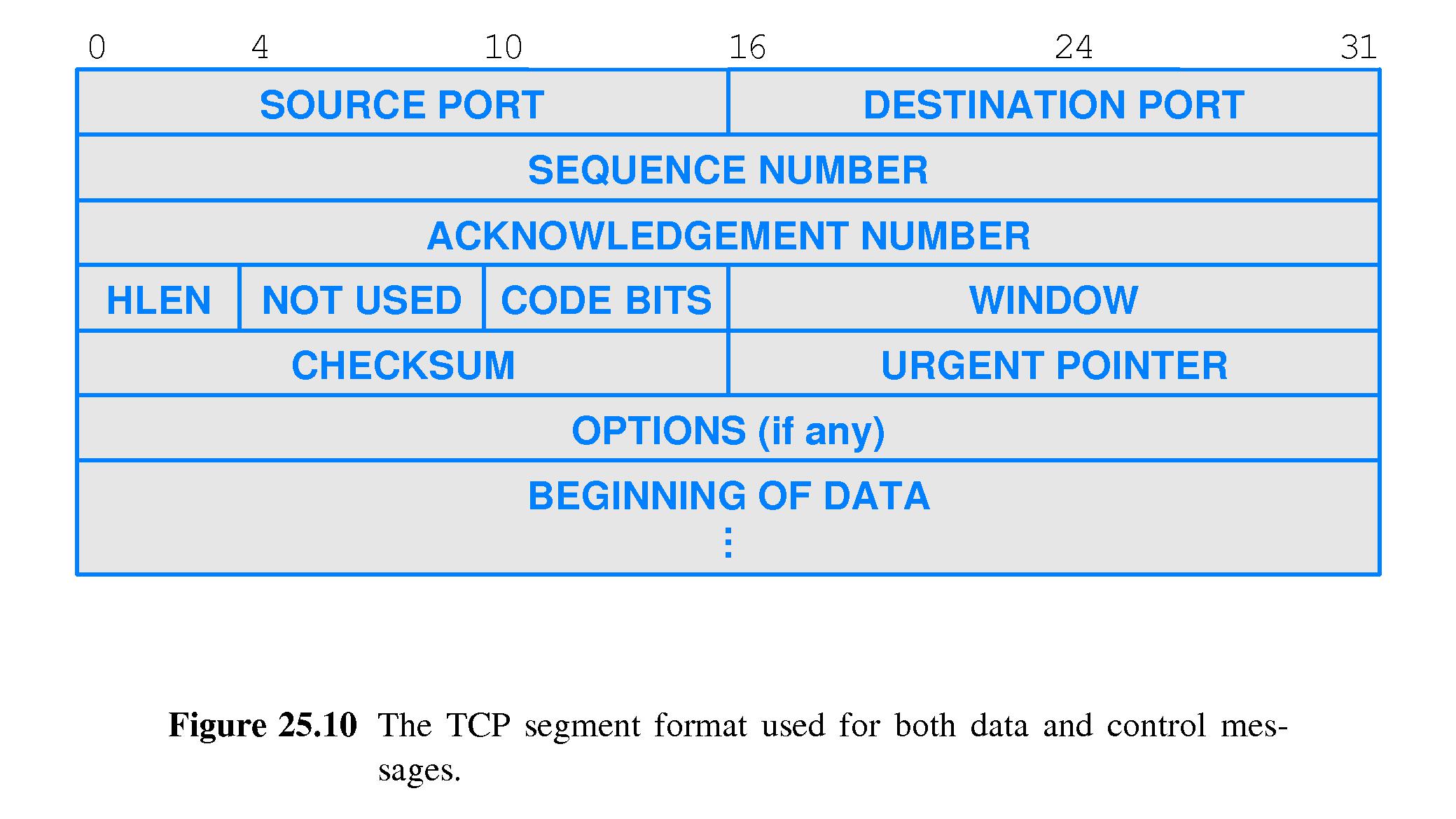

  • Refer to Figure 25.10.
  • TCP uses the same TCP segment format for all messages.
  • Some of the fields refer to the 'incoming' data stream (coming from the DESTINATION PORT), and others to the 'outbound' data stream (coming from the SOURCE PORT and contained in the DATA section of the segment).
  • Importantly, the SEQUENCE NUMBER field is the sequence number of the first octet of data (payload) carried in the segment in the outbound direction,
  • the ACKNOWLEDGEMENT NUMBER is the first sequence number for which data is missing in the incoming direction, and
  • the WINDOW denotes the amount of buffer space available for incoming data on the SOURCE host (this is the advertisement).
