(rev. Feb 27, 2017)
Notes On Chapter Eleven
-- Multiplexing and Demultiplexing (Channelization)
- 11.0 Study Guide
- Be able to explain the basics of why multiplexing is needed,
how multiplexing works, and what multiplexors and demultiplexors do.
- Be able to explain the key ideas of FDM, WDM, TDM, and CDM
- Be able to describe the idea of statistical TDM
- Be able to describe the need for _inverse_ multiplexing,
how it works, and what inverse multiplexors and inverse
demultiplexors do
11.1 Introduction
- Motivation for multiplexing
- Basic types of multiplexing
- Basis provided by modulated carriers
- 11.2 The Concept of Multiplexing
- Multiplex:
to combine information streams from multiple
sources for the purpose of transmitting them over a shared medium.
- Multiplexor: a device that performs multiplexing
- Demultiplex:
to separate information that has been multiplexed
back into its constituent information streams.
- Demultiplexor: a device that performs demultiplexing

- 11.3
The Basic Types of Multiplexing
- Frequency Division Multiplexing (FDM, widely used)
- Wavelength Division Multiplexing (form of FDM used with fiber)
- Time Division Multiplexing (TDM, widely used)
- Code Division Multiplexing (cell phone mechanisms)
- 11.4 Frequency Division Multiplexing
-
FDM is the familiar idea of "channels" in radio and television.
- The idea of FDM is to use multiple carriers of different frequencies
simultaneously on a medium like a copper wire or optical fiber (or
to broadcast through the air with RF, as with radio and tv)
- The effect is to give each communicating pair
a "private"
communication path - like a separate "wire" just for
the use of that pair.
- Demultiplexors use filters to select a small range of frequencies
near just one of the carrier frequencies, and suppress other
frequencies.

-
Any modulation scheme can be used on each carrier.

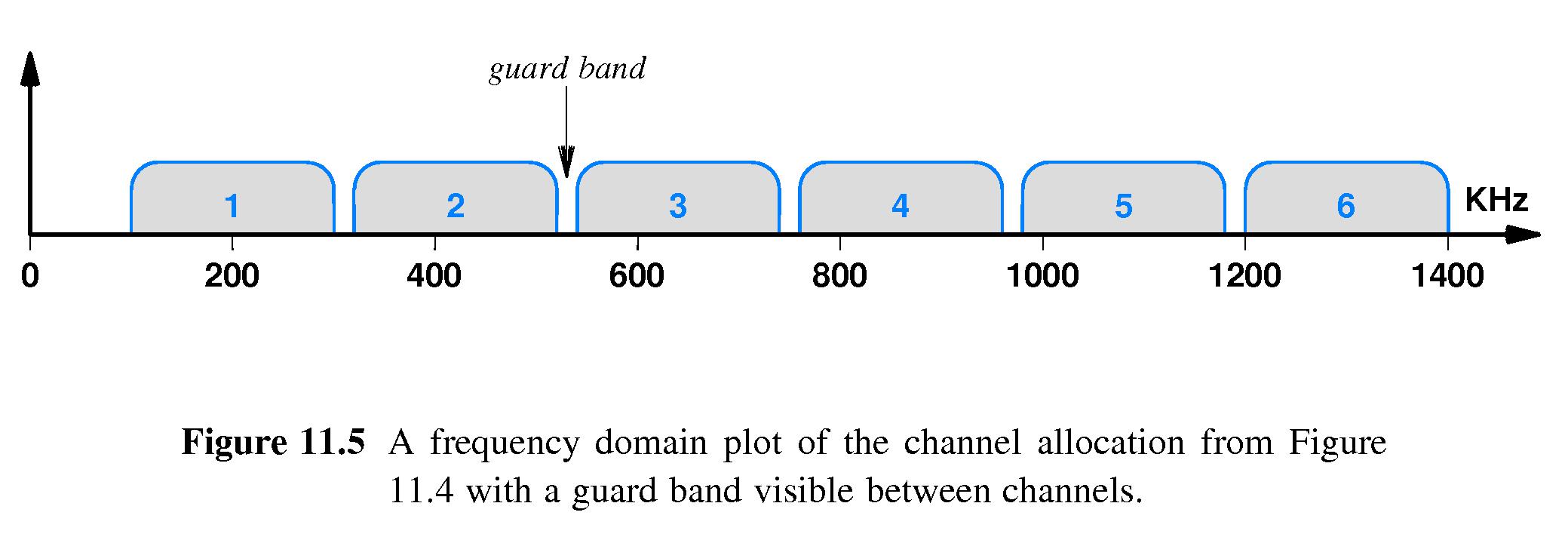

- Carrier frequencies that are too close are difficult for
a demultiplexor to separate, and they can interfere with each other.
Therefore FDM schemes separate carriers with gaps called
guard bands.

- 11.5 Using a Range of Frequencies per Channel
- Carrier 'channels' often contain a relatively wide range
of frequencies.
- Users of the channel can divide it up into K
'sub-carriers'
and, to achieve high data rates, send 1/K of the data over each
carrier.
- To increase immunity from interference, a sender can transmit the
same information over several 'sub-carriers' and give the receiver
the option to use the ones that experience the least interference.
This is the basic idea of
spread spectrum.
- 11.6 Hierarchical FDM
- By
using outputs of some multiplexors as inputs to other, it is
possible to cause large numbers of individual communication streams
to flow into a single shared medium supporting a very large number of
data streams.
- This technique is used in telephone systems -
for example 3600 telephone
channels together on one 14,400 Hz signal band.

- 11.7 Wavelength Division Multiplexing (WDM)
- In the case of optical fibers,
multiplexors and demultiplexors use prisms.
- This is the idea of wavelength division multiplexing (WDM)

- 11.8 Time Division Multiplexing
- TDM is the main alternative to FDM.
- Basically TDM is just 'taking turns'
using the shared medium.
- The "turn taking" of TDM may or
may not be the "round robin" kind.
- There may or may not be delays/gaps
between the sending of different items.

- 11.9 Synchronous TDM
-
On synchronous networks, TDM performs round robin sharing and there
are no gaps between items sent.

- 11.10 Framing Used in the Telephone System Version of TDM
- The telephone company TDM scheme adds an extra framing channel and
alternating framing bits to help the demultiplexor stay synchronized
or (at least) detect errors.

- 11.11 Hierarchical TDM
-
Hierarchical TDM works similarly to hierarchical FDM.
- An important difference is that with TDM,
the bit rate increases at each stage,
rather than the number of frequencies increasing, as with FDM.
- At a stage where there are N inputs of bit rate R, one needs the
output bit rate to be no less than NR.

- 11.12 The Problem with Synchronous TDM: Unfilled Slots
- Under a 'vanilla' form of TDM, if a source has nothing to send when
its time arrives, an "empty slot" is sent - probably a zero-filled
block with some sort of invalid flag included.
- Thus capacity is wasted if sources don't always
have data ready when it is their turn.

- 11.13 Statistical TDM
- In a statistical TDM scheme,
the multiplexor tries to skip over
senders that don't have data ready
until coming to one that has data.
- For this to work,
the data blocks have to contain something that
identifies the intended receiver, else there'd be no way for the
demultiplexor to decide to which output stream to assign the data.
- The packet switching of the Internet is a form of statistical TDM.

- 11.14 Inverse Multiplexing
- Inverse Multiplexing:
The idea is to
distribute a single high-speed digital input over
multiple lower-speed channels, transmit
over the multiple channels,
and reassemble the original digital signal at the receiving end.
- Inverse multiplexing is somewhat difficult to engineer.
- The scheme is used widely on the Internet.

- 11.15 Code Division Multiplexing
-
CDM is the idea behind the CDMA used with cell phones.
- People who have studied vector spaces may understand the
scheme more readily.
- The basic idea is something like doing TDM on a bit level.
- Each sender has a code called a
chip sequence.
- The chip sequence represents a vector.
- All the vectors determined by chip sequences are
mutually orthogonal.
- In effect senders multiply their messages
times their chip sequence
and send the results to the multiplexor.
- The multiplexor adds the individual inputs
from the senders and transmits the sum.
- The demultiplexor uses orthogonal projection
- it projects the sum onto each chip sequence to recover one
bit of the message from each phone.
- The scheme has some overhead that makes it less efficient than
ordinary TDM if utilization is low.
- However, if utilization is high it has
the advantage of lower delay.
It is basically bit-at-a-time TDM, so phones are delayed only about
as long as it takes all the other phones in use to send one bit -
rather than the time it would take them to send large blocks of data.
