Notes On Chapter Sixteen -- Wireless Networking Technologies

• 16.0 Study Guide


  • Know that PANs are implemented with Bluetooth, Infrared, and ZigBee standards and technology.
  • Be aware that there are many IEEE 802.11x standards for wireless networks
  • Know what spread spectrum technology is, and advantages gained by utilizing it
  • Understand how basic service sets (BSSs) interact with access points (APs) in a wireless LAN, and how APs connect up to wired sections of the LAN.
  • Know that WiMax is a wireless networking technology that has many potential uses as both an access and interconnect technology.
  • Be able to list some of the specific ways that WiMax can be used for access and/or interconnect
  • Have basic understanding of cellular architecture - for example, mobile switching centers, wired connections, antennae, cells, and handoffs.
  • Some familiarity with the history of cellular technology, including knowledge of capabilities associated with the so-called four generations.


• 16.1 Introduction


  • This chapter is about wireless technologies
  • There is a multiplicity of them

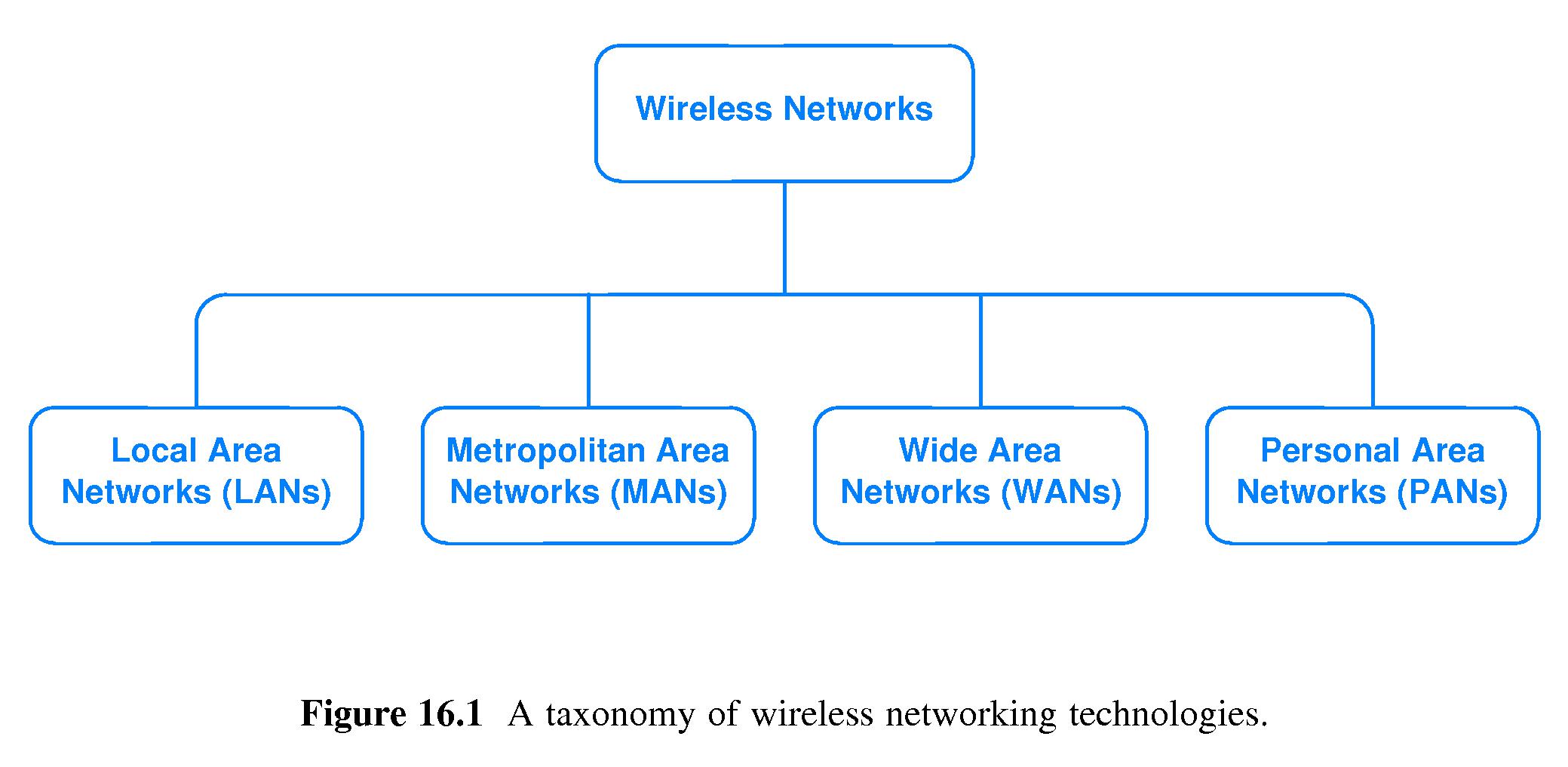

• 16.2 A Taxonomy of Wireless Networks


  • Local Area Networks (LANs)
  • Metropolitan Area Networks (MANs)
  • Wide Area Networks (WANs)
  • Personal Area Networks (PANs)




• 16.3 Personal Area Networks

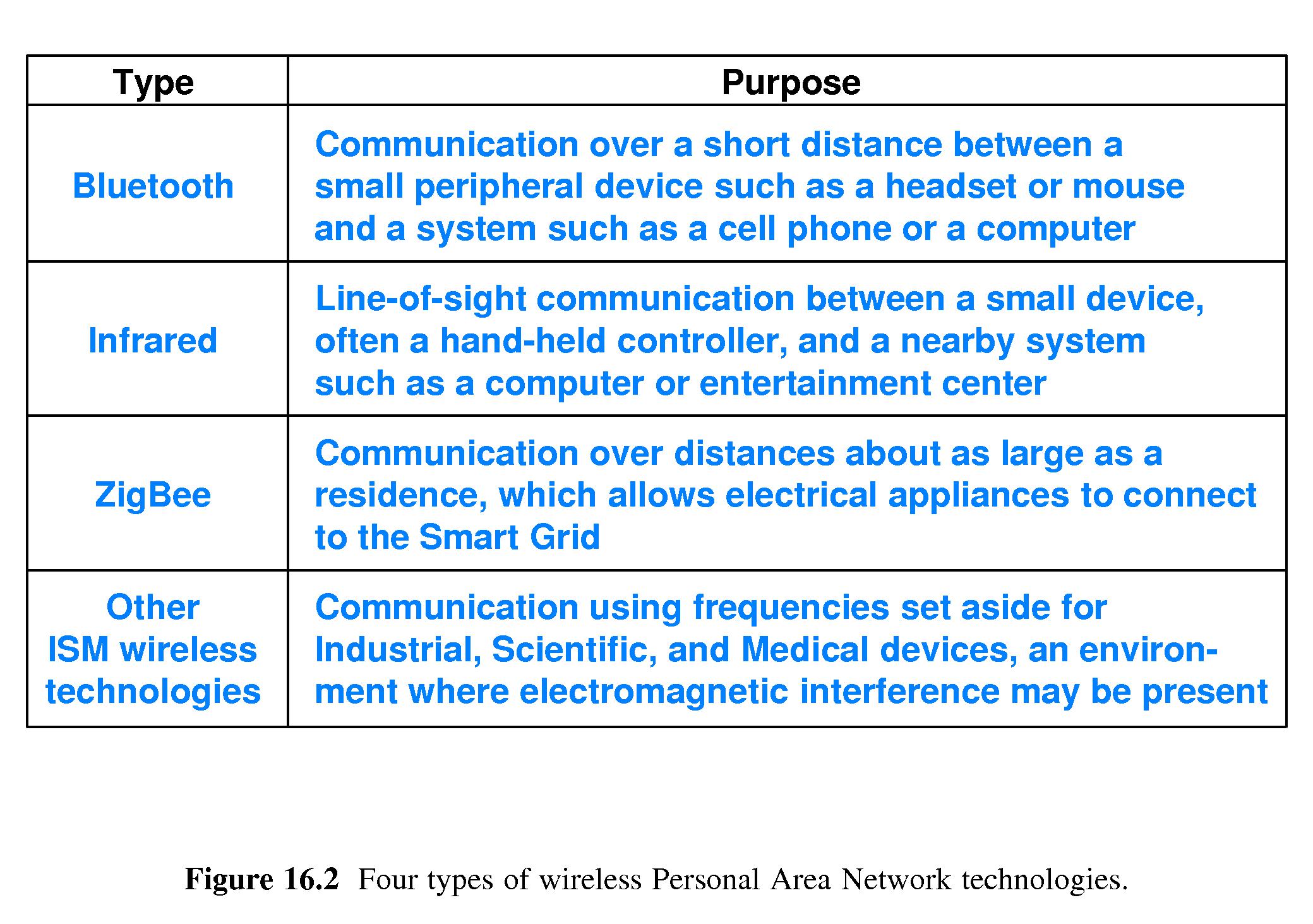

  • Examples of PAN technology uses:
  • Categories:
    • Bluetooth - e.g. headset-to-phone, computer-to-keyboard
    • InfraRed - e.g. controller to entertainment system
    • ZigBee - e.g. electric appliance to Smart Grid
    • ISM wireless (frequencies reserved for Industrial Scientific and Medical devices)

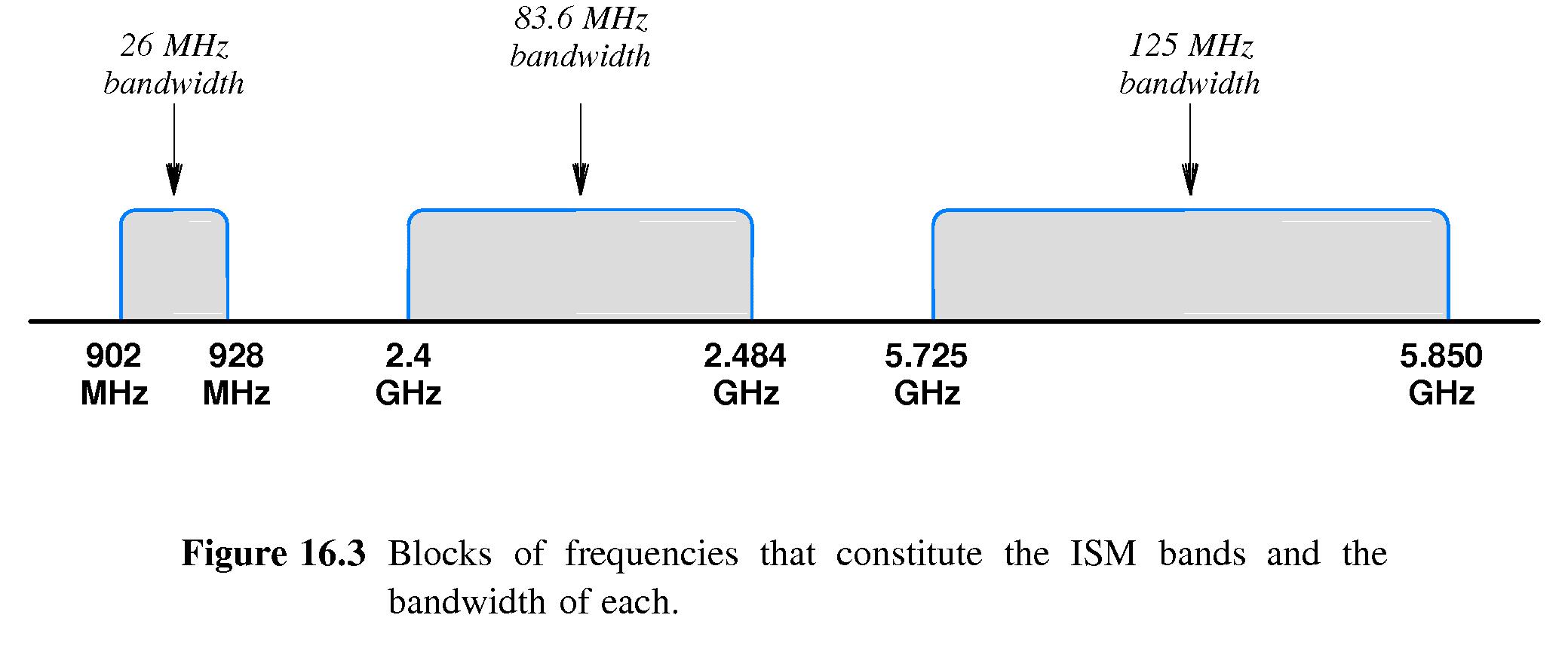

• 16.4 ISM Wireless Bands Used by LANS and PANS


  • "not licensed to specific carriers ... broadly available for products"
    • 902-928 MHz
    • 2.4-2.84 GHz
    • 5.725-5.850 GHz




• 16.5 Wireless LAN Technologies and Wi-Fi


  • IEEE provides most standards for wireless LANs (802.11)

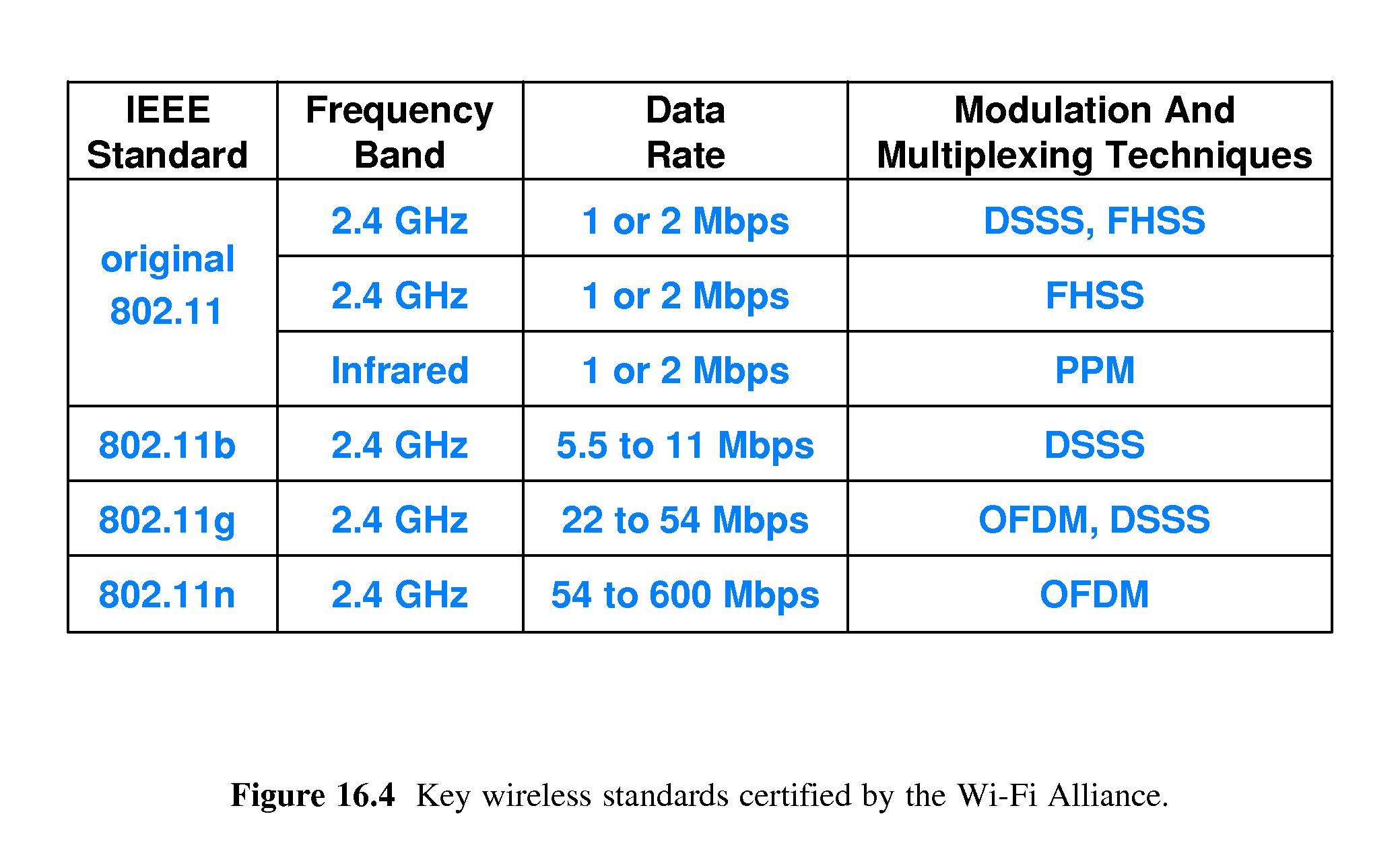

  • IEEE Standards that fall under the "WiFi Alliance" certification organization:
    • 802.11
    • 802.11b
    • 802.11g
    • 802.11n




• 16.6 Spread Spectrum Techniques


  • Advantages: increased performance and noise immunity
  • Spread Spectrum uses multiple frequencies to send data
  • Sender spreads data across multiple frequencies and receiver recombines it.
  • Three Key Multiplexing Techniques (The text describes them only very minimally.):
    • DSSS: Direct Sequence Spread Spectrum - similar to CDMA - text says it has good performance
    • FHSS: Frequency Hopping Spread Spectrum - use of a sequence of frequencies - text says it makes transmission more immune to noise

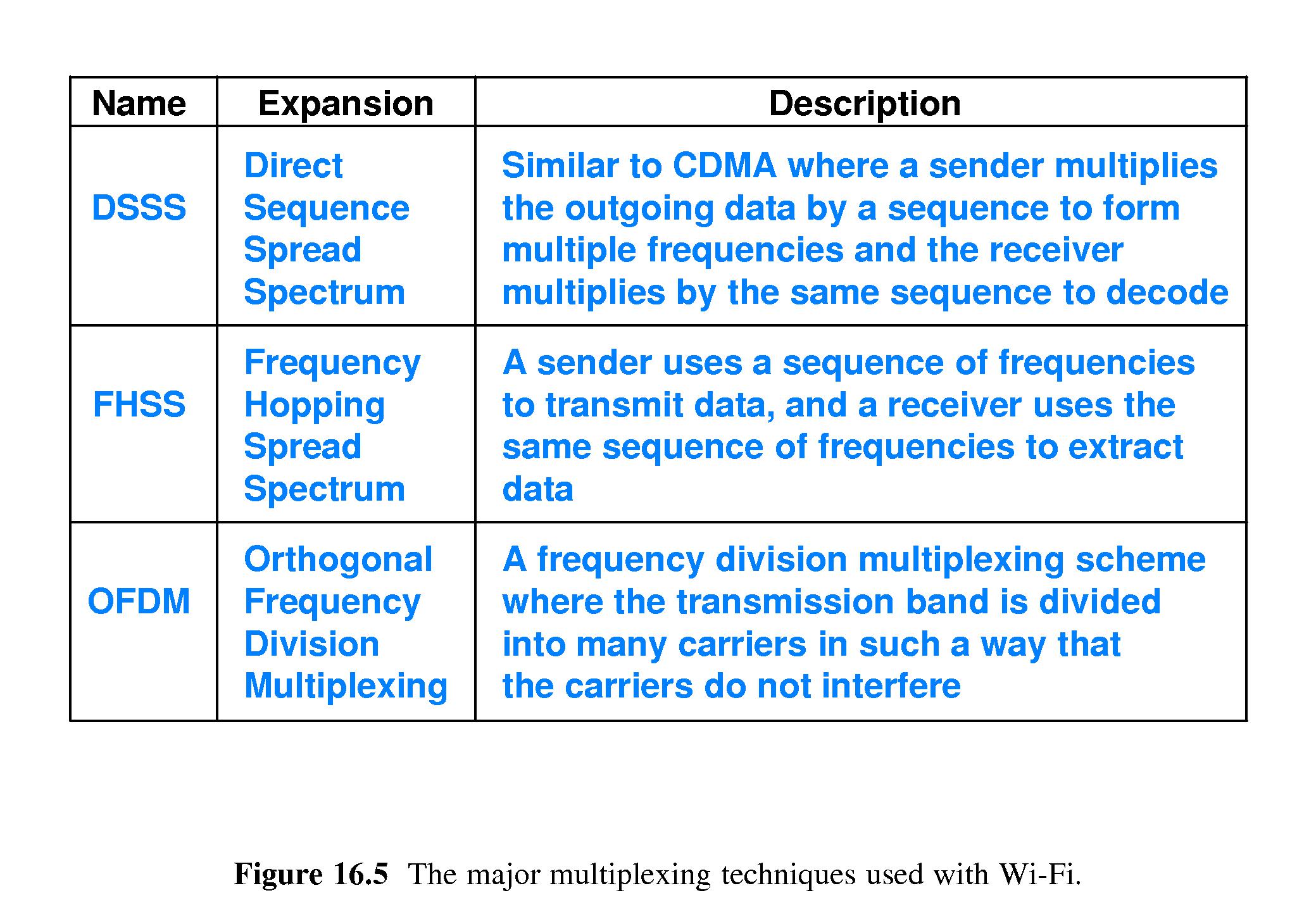

    • OFDM: Orthogonal Frequency Division Multiplexing - band divided into many non-interfering carriers - text says it offers the greatest flexibility




• 16.7 Other Wireless LAN Standards

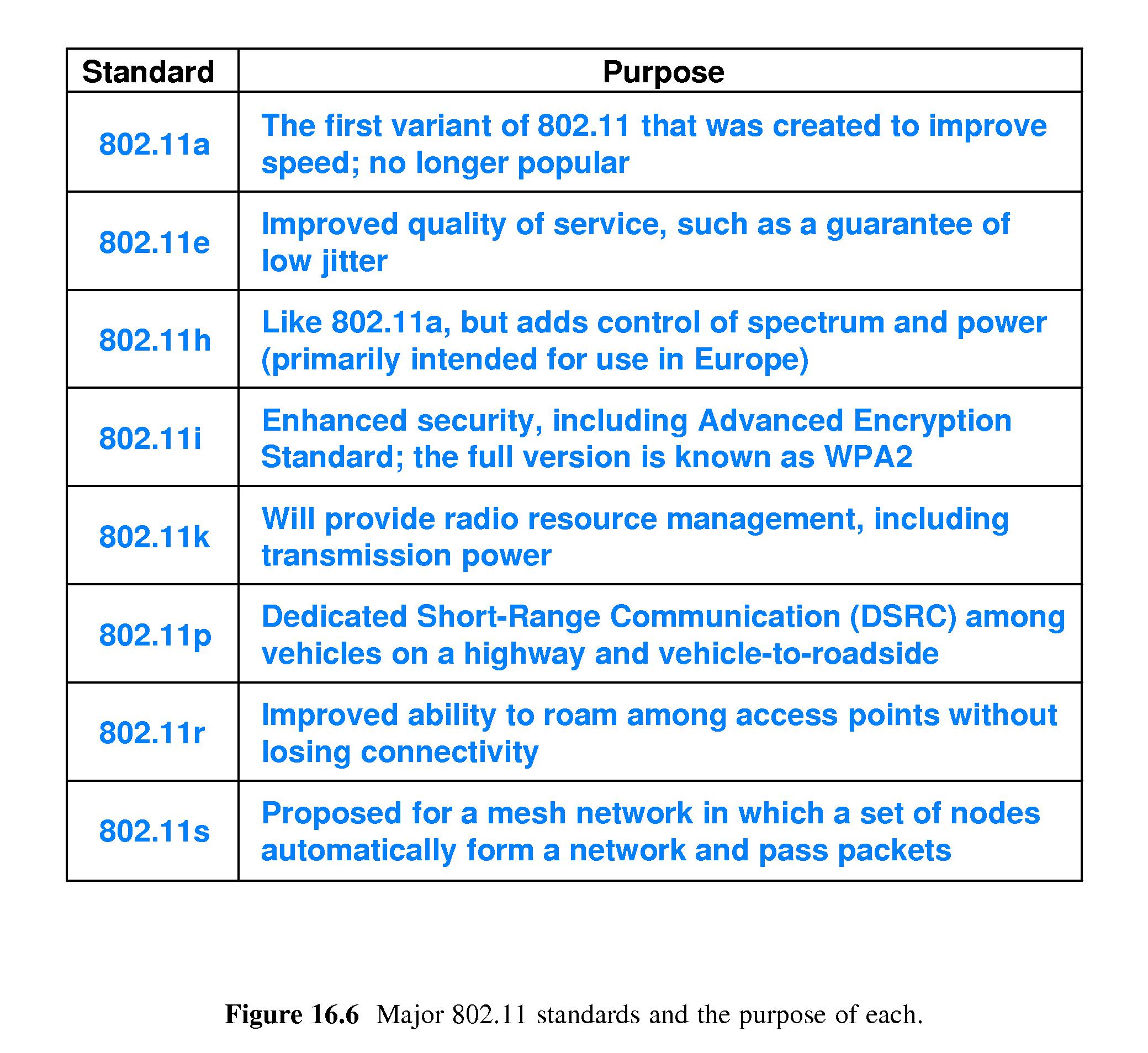

  • 802.11a: The first variant of 802.11 created to improve speed; no longer popular
  • 802.11e: improved quality of service, i.e. low jitter
  • 802.11h: like 802.11a with control of spectrum and power
  • 802.11i: enhanced security, Advanced Encryption Standard; full version is WPA2
  • 802.11k: will provide radio resource management, including transmission power
  • 802.11p: Dedicated Short-Range Communication (DSRC) among vehicles on a highway and vehicle-to-roadside
  • 802.11r: Improved roaming without loss of connectivity
  • 802.11s: proposed for a mesh network in which a set of nodes automatically form a network and pass packets




• 16.8 Wireless LAN Architecture


  • Characteristics of an Infrastructure Architecture:

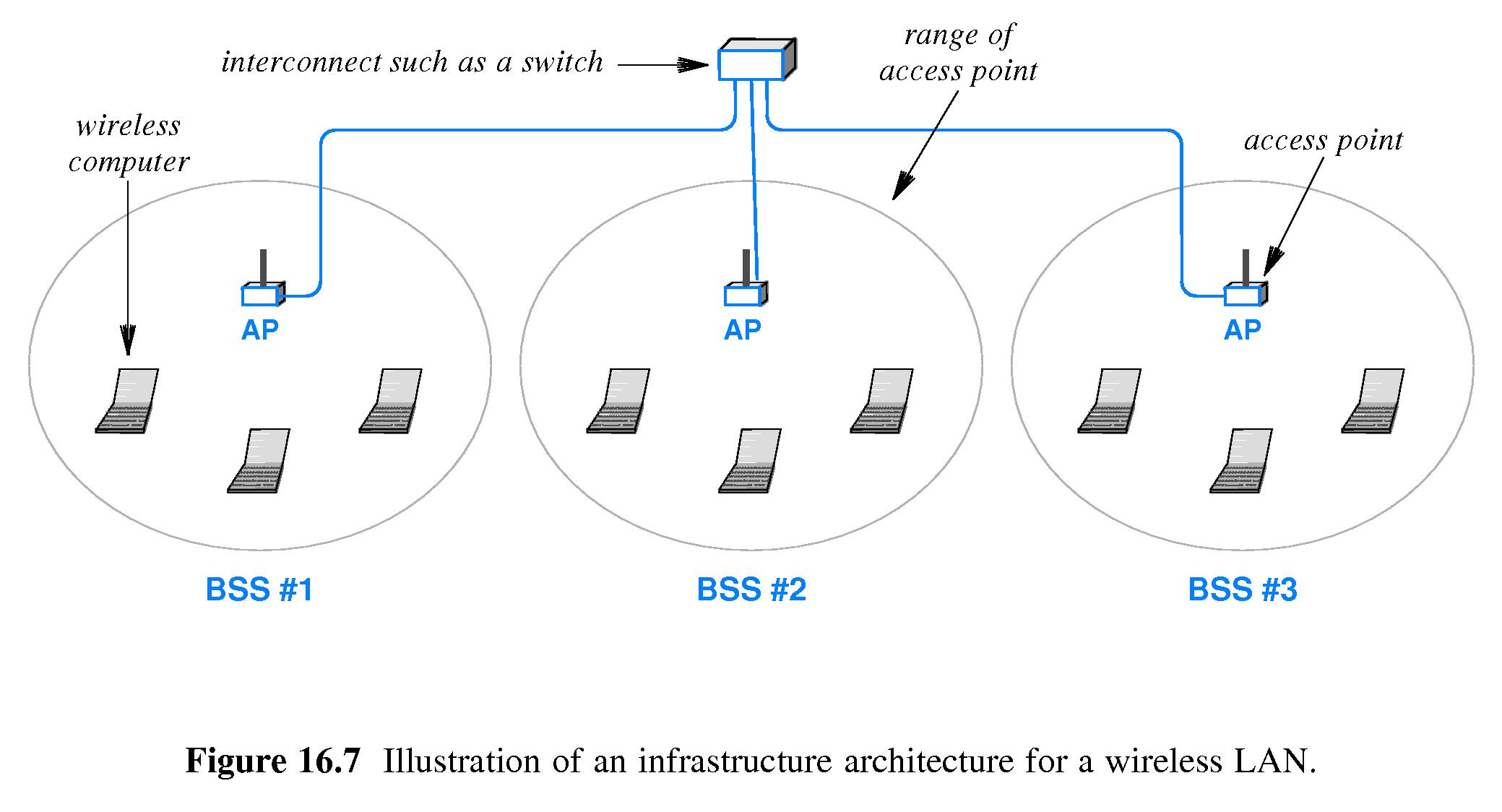

    • See figure 16.7
    • wireless hosts: computers that communicate using a wireless network
    • access point: aka base station - typically a wireless host communicates with an access point and the access point relays all packets.
    • switch or router: an interconnect mechanism used to connect access points - typically access points and switches or routers are connected by a twisted-pair Ethernet.
    • Basic Service Set (BSS): the set of computers within range of a given access point.
  • It is possible to have an Ad Hoc Wireless Network in which wireless hosts communicate with each other without relying on an access point. This architecture is not common.




• 16.9 Overlap, Association, and 802.11 Frame Format

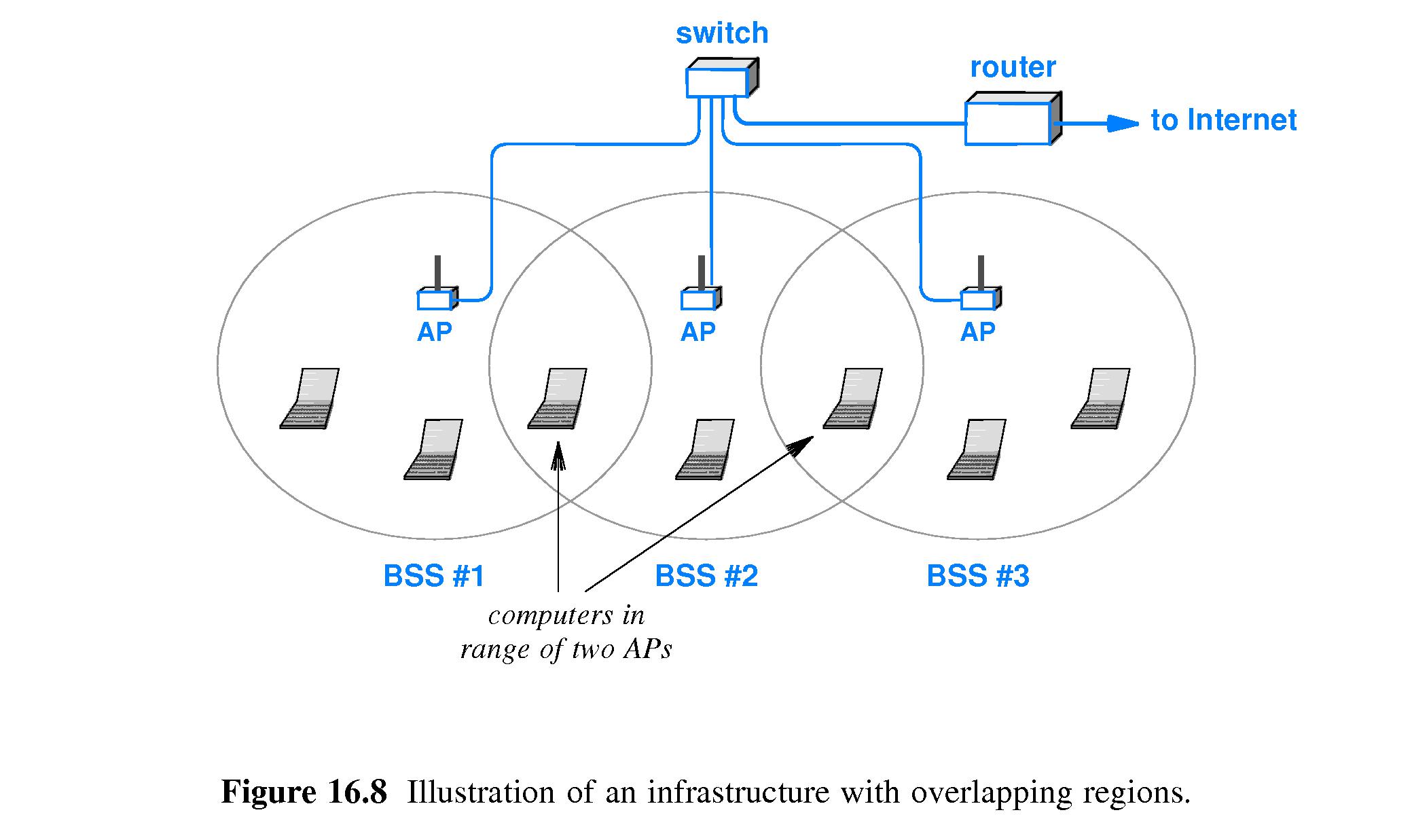

  • See figure 16.8
  • So that there will not be dead zones there must be overlaps - areas where a wireless host can reach more than one access point.
  • According to 802.11, a wireless host must associate with (send frames to) only one access point.

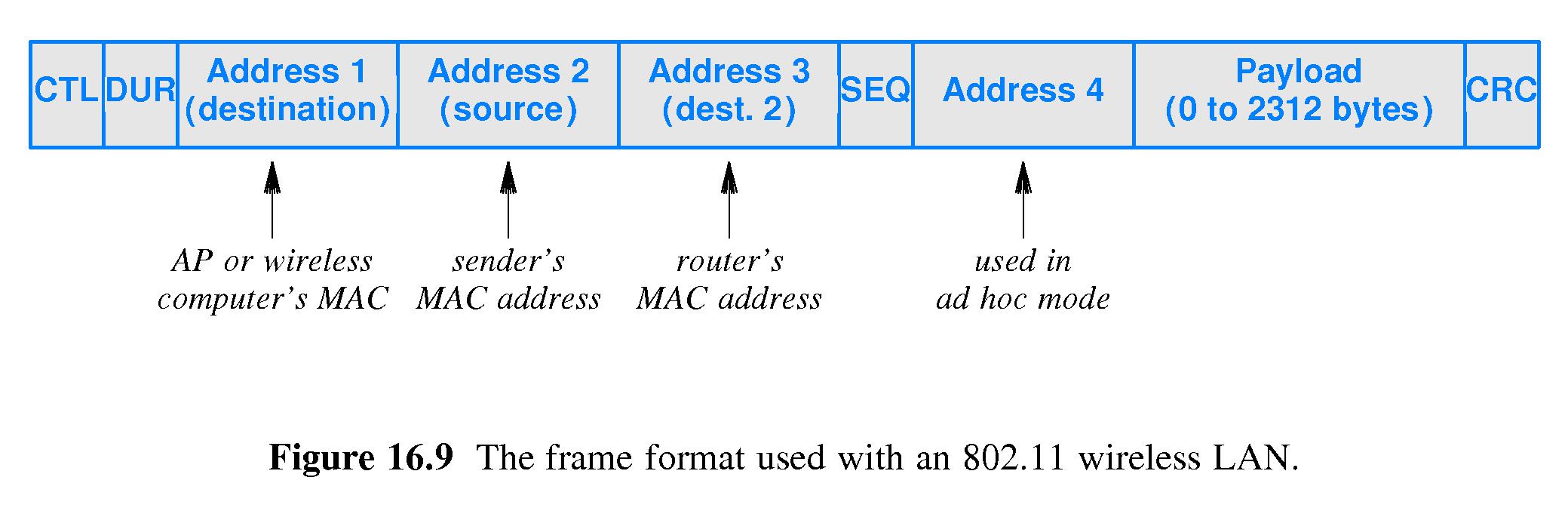

  • In an infrastructure architecture the 802.11 frame carries the MAC address of the target access point, and also the MAC address of the target router connected to the access point.




• 16.10 Coordination Among Access Points


  • Some types of access points coordinate to insure smooth handoff as a wireless computer moves from the region reached by one access point to another.
  • Other types of access points just operate independently and rely on the ability of a wireless host to change the access point to which it is associated.


• 16.11 Contention and Contention-Free Access


  • General Approaches are:
    • Point Coordinated Functions (PCF)
    • Distributed Coordinated Functions (DCF)
  • With PCF the access point controls stations in the BSS to make sure they do not interfere, for example by assigning a separate frequency to each station. This method is seldom if ever used.
  • With DCF, each station in the BSS runs a random access protocol like Carrier Sense Multi-Access with Collision Avoidance (CSMA/CA).

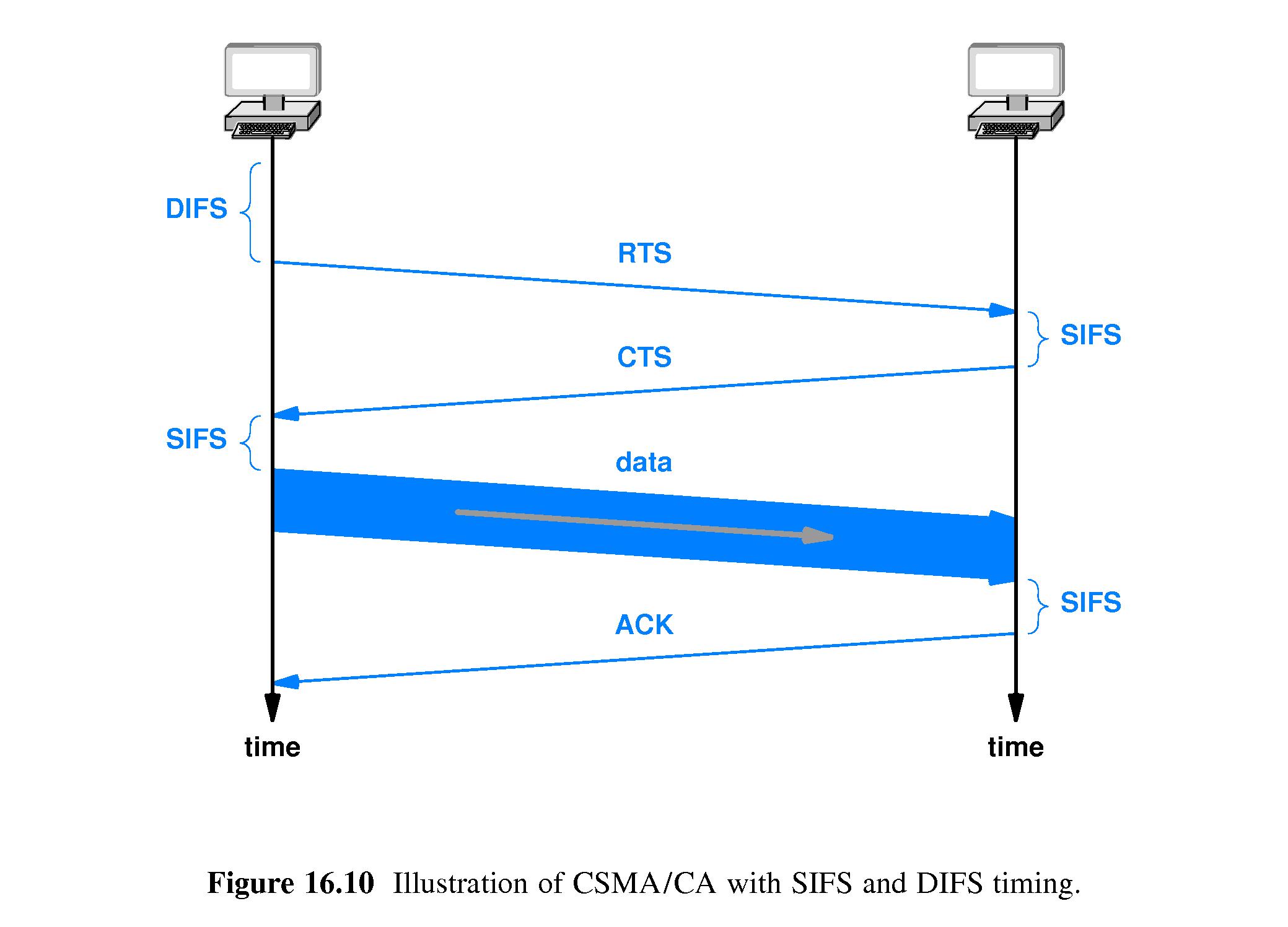

  • In CSMA/CA, a sender begins with a short RTS message and the access point responds with a short CTS message, then the sender sends its data and the access point response with an ACK.
  • The 802.11 standard specifies minimum delays between these messages.
  • If no ACK arrives the sender employs a backoff strategy.
  • Collision detection is not part of the scheme. It is difficult to distinguish collisions from weak signals and interference.
  • Conditions vary and some wireless networks must depend heavily on retransmission - others hardly at all.




• 16.12 Wireless MAN Technology and WiMax


  • Not too many MAN technologies have caught on.
  • WiMax is one MAN technology that seems to have a lot of potential
  • WiMax = World-wide Interoperability for Microwave Access = 802.16
  • Fixed WiMax (802.16-2004, 802.16d) DOES NOT provide for handoff among access points.
  • Mobile WiMax (802.16e-2005, 802.16e) DOES provide handoff among access points and can be used with mobile computers, phones and other mobile devices.
  • A WiMax cell has a range of 3-10 Km
  • WiMax can provide data rates of 10-70 Mbps

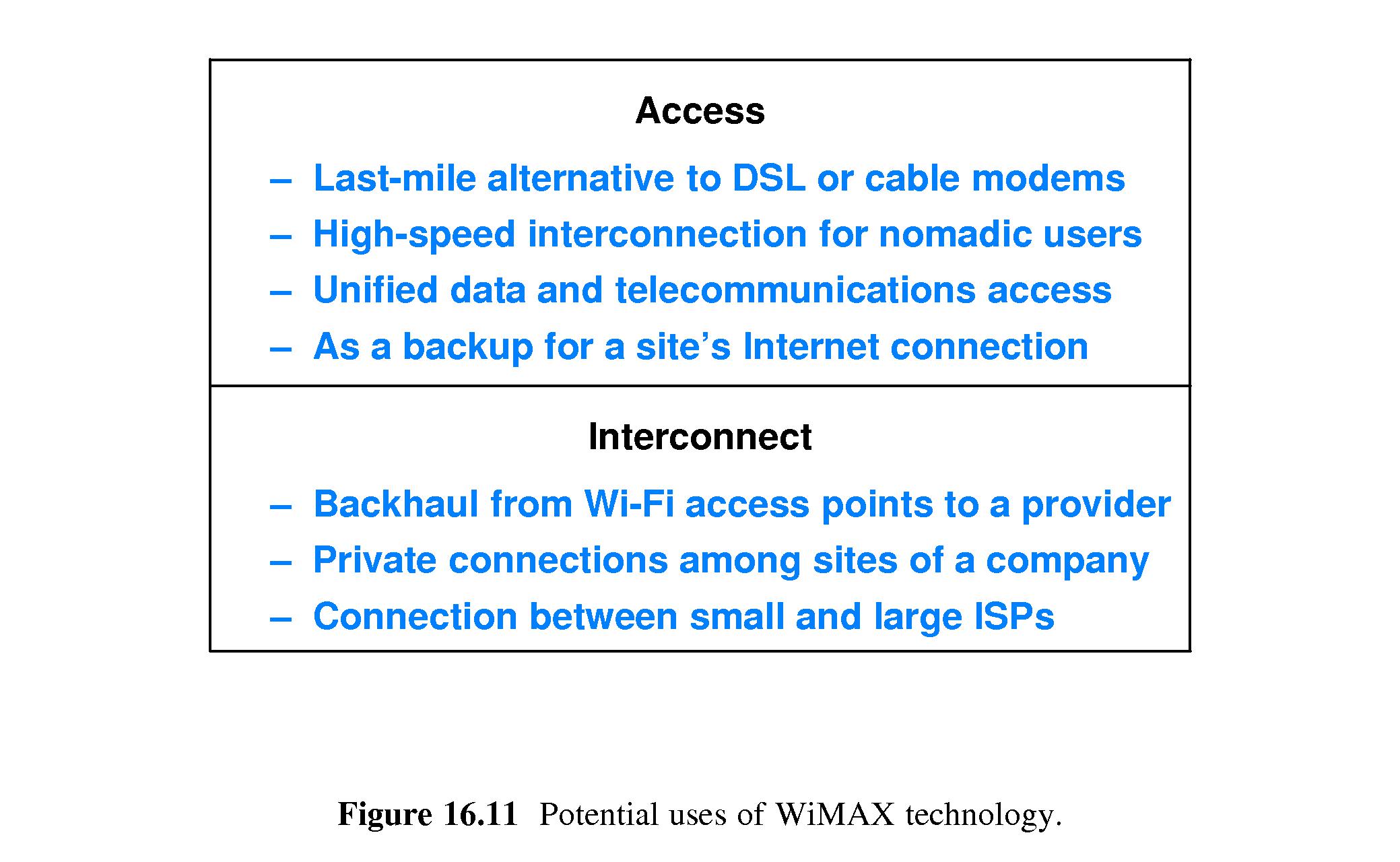

  • Applications include:
    • Last Mile Internet Access - alternative to DSL or cable modem
    • General-purpose interconnection within a city

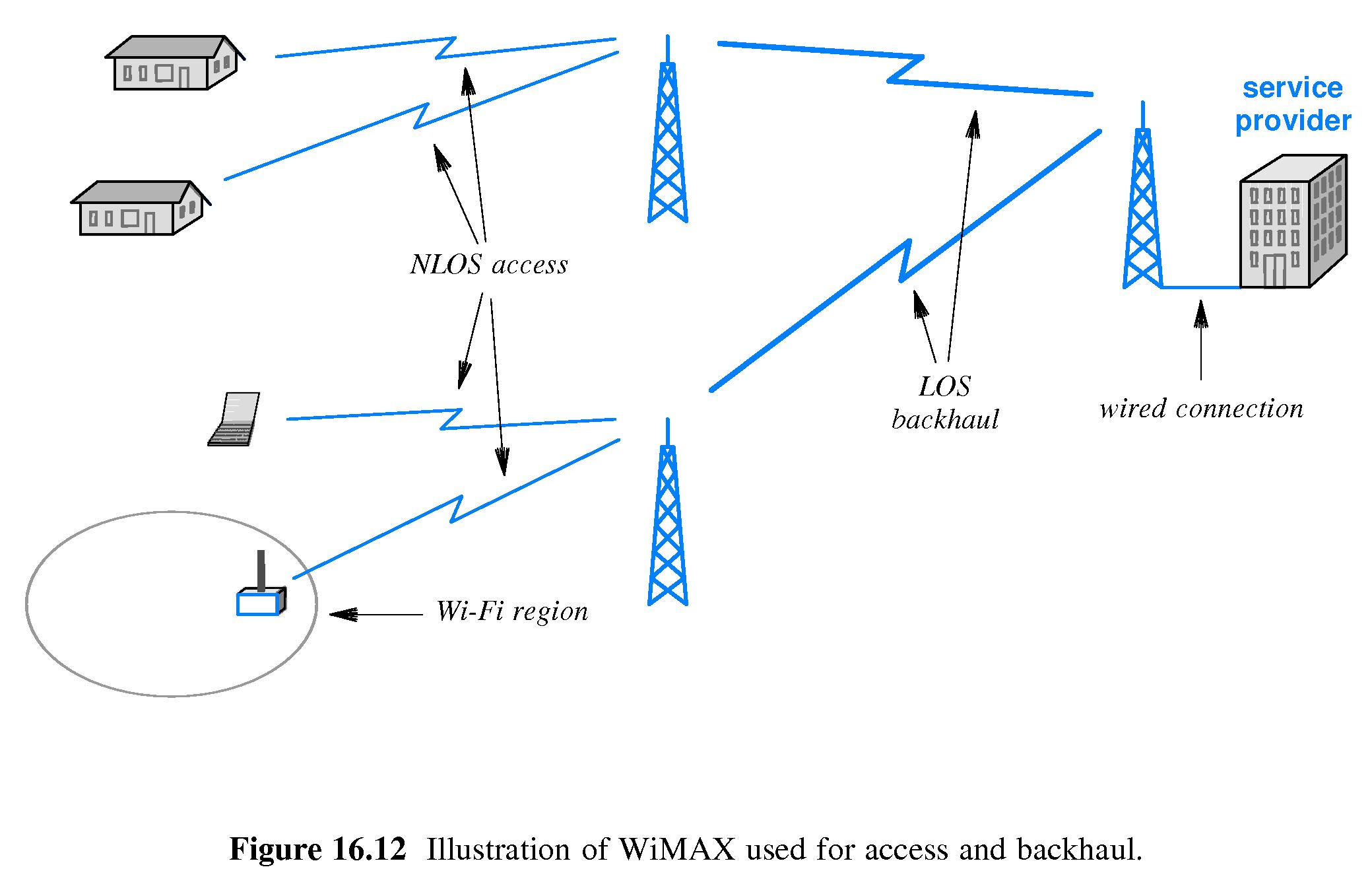

    • Backhaul - e.g. service provider central tower to remote cell towers (high data-rate LOS frequencies).
    • Unified data and telecommunications access






• 16.13 PAN Technologies and Standards

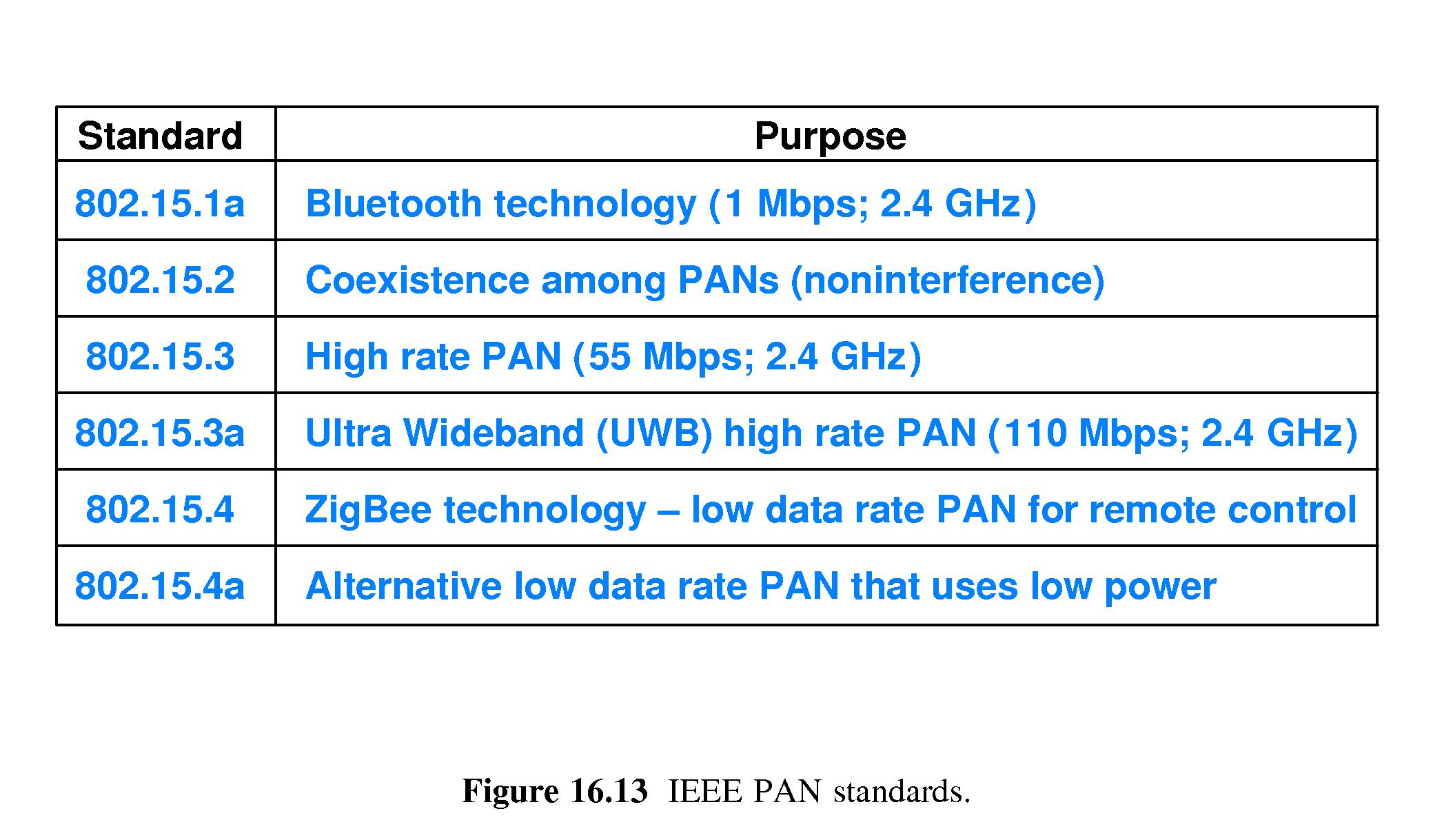

  • There are various wireless PAN standards
  • Bluetooth: high frequency, short distance, master-slave, 721 Kbps
  • Ultra Wideband (UWB): saves power by spreading across many frequencies, goes through walls, up to 500 Mbps
  • Zigbee: for remote control in industry and homes, not for data, three frequency bands and data rates up to 250 Kbps, low power consumption, three levels of security being defined.




• 16.14 Other Short-Distance Communication Technologies


  • InfraRED is used for remote control and low-speed data transfer - up to about 16 Mbps
  • Small RFID tags used e.g. for inventory control, sensors, and passports can contain information that a receiver can "pull" - passive RFID's draw power from reader's signal and active RFID's have a battery that can last 10 years.


• 16.15 Wireless WAN Technologies


  • WAN Technologies:
    • Cellular communication systems, or
    • Satellite communication systems


  • 16.15.1 Cellular Communication Systems

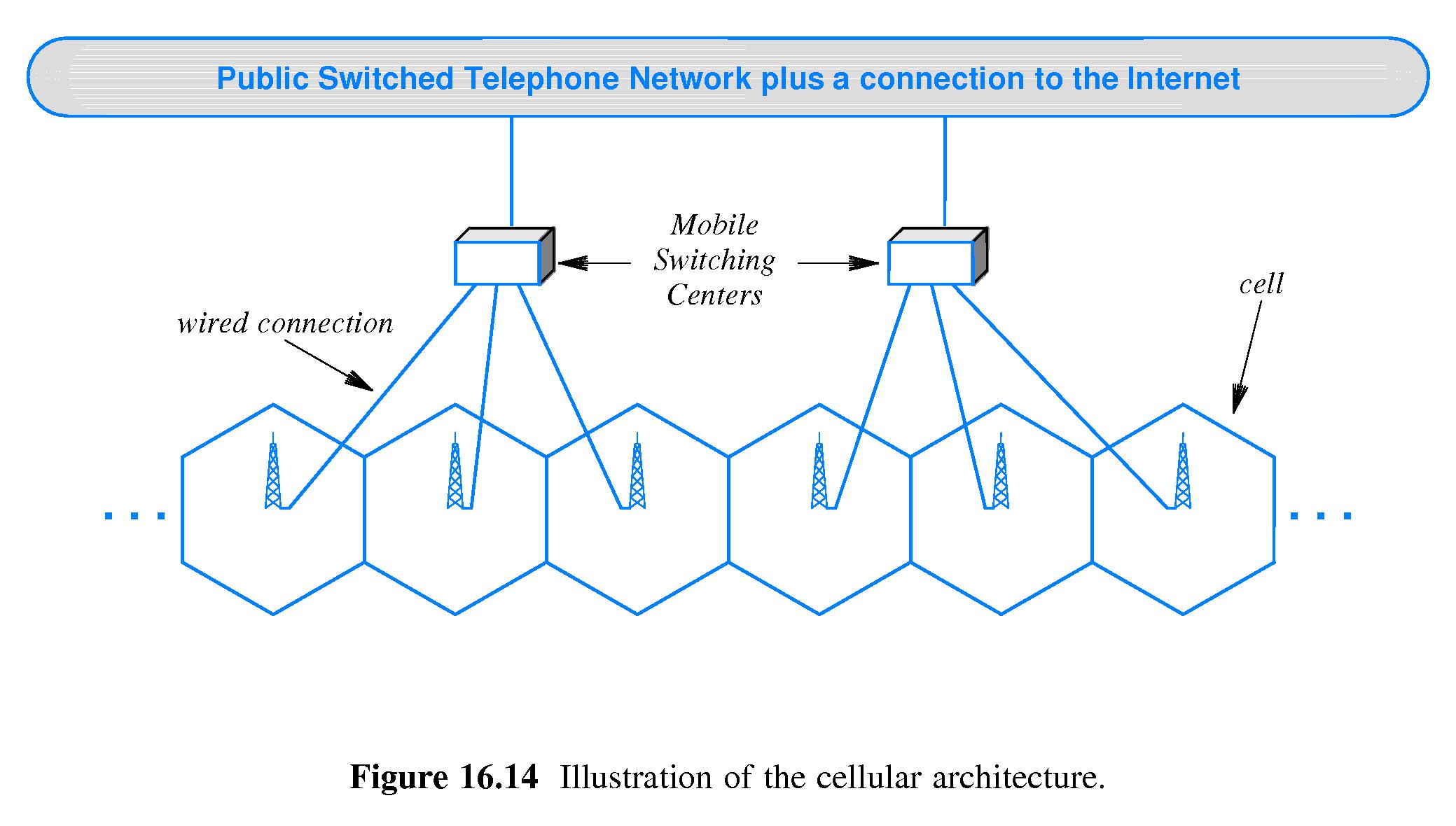

    • See figure 16.14
    • Cellular systems are being used more and more for data and Internet service, in addition to voice.
    • Each cell has a tower and groups of cells are connected to a Mobile Switching Center that connects in with the Public-Switched Telephone Network and the Internet too.
    • The Centers track users and manage handoff as a user passes from one cell to another.
    • In a handoff from one group to another, two Mobile Switching Centers are involved.

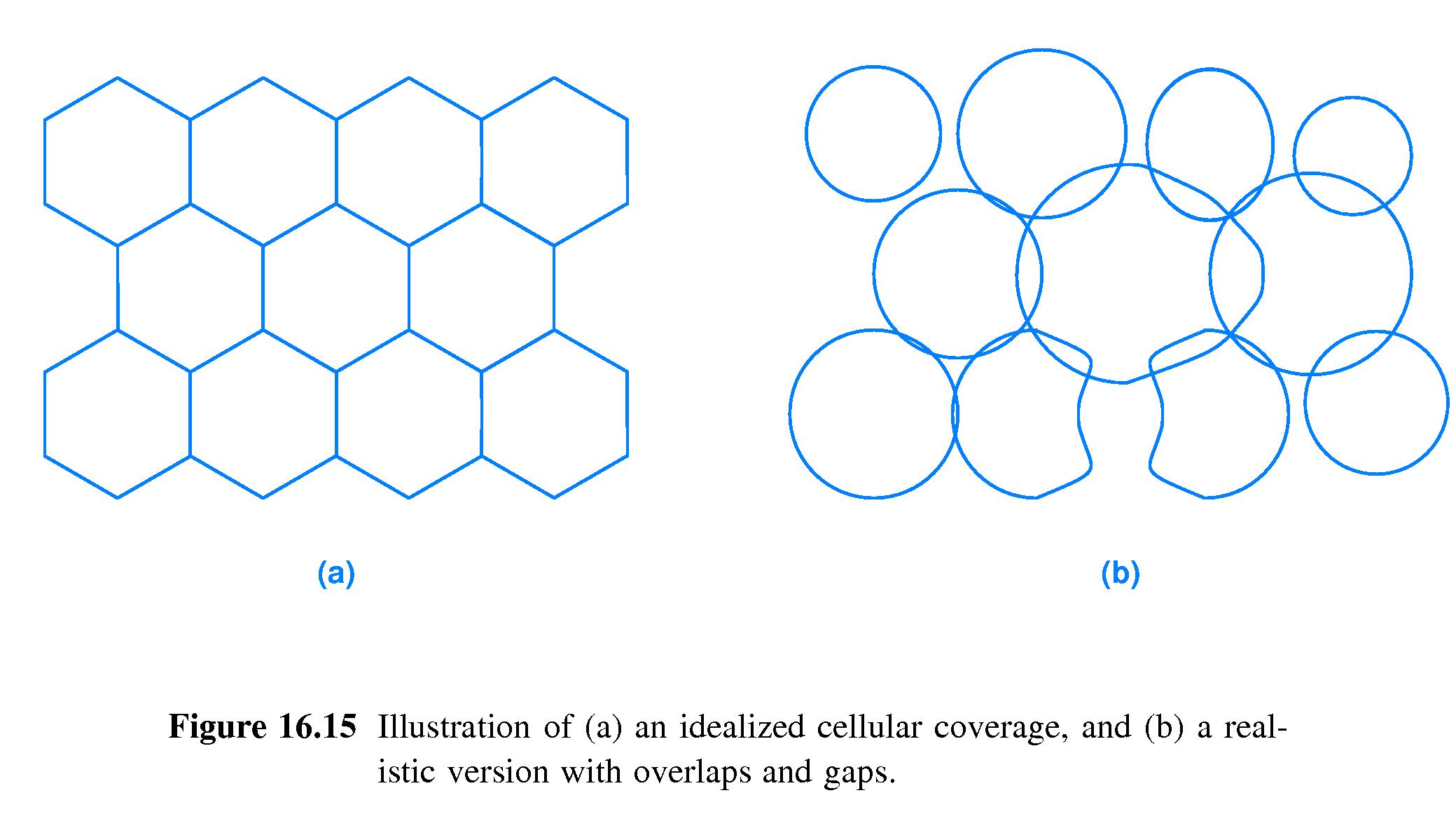

    • Real cell coverage maps do not correspond to perfect honeycomb patterns.
    • Cell sizes differ between rural and metropolitan areas.






• 16.16 Micro Cells


  • There may be 'micro cells' that only serve, for example, a subset of the floors of a high-rise apartment building.
  • Some providers sell or lease micro cell devices to individuals - a device that connects to the Internet and provides cell service within a residence to a set of recognized devices. (no per-minute charges.)

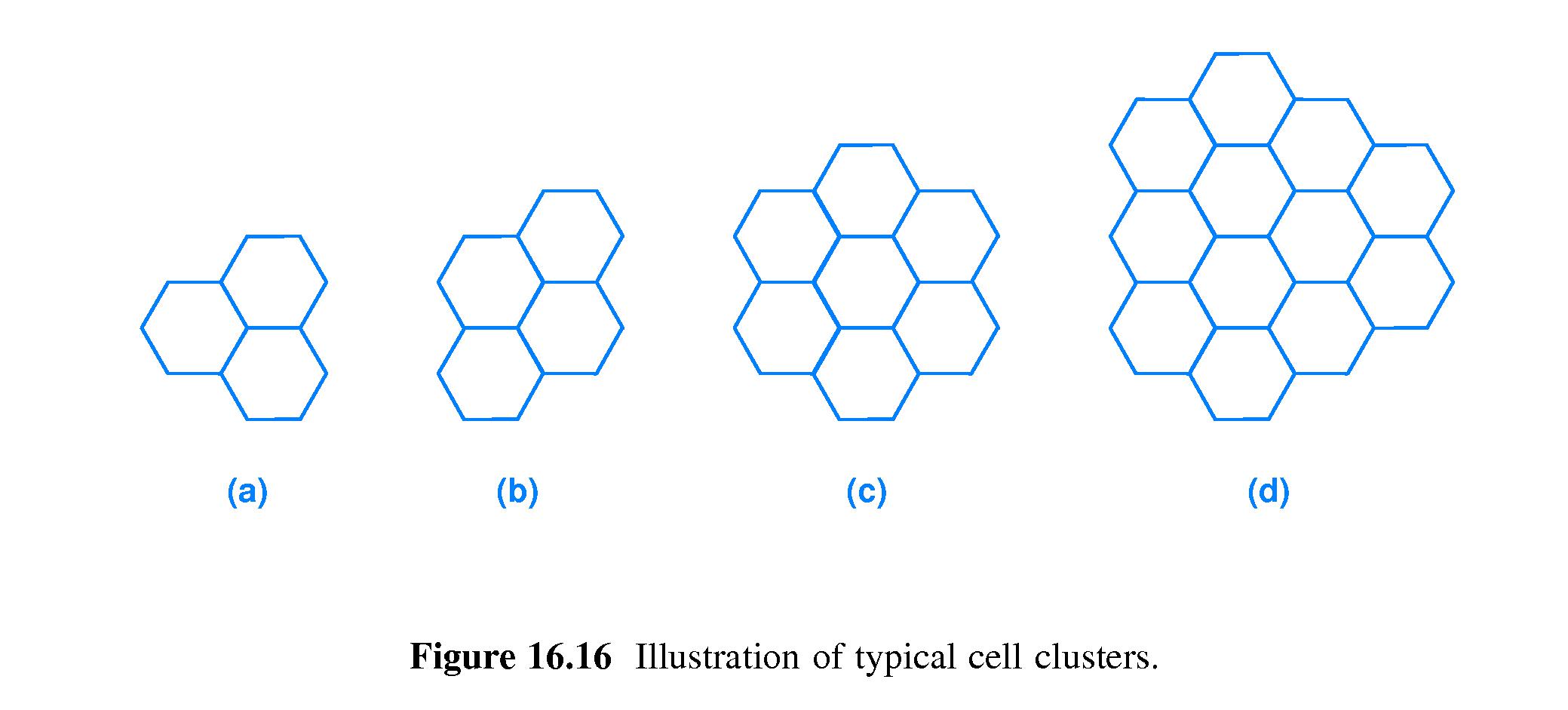

• 16.17 Cell Clusters and Frequency Reuse

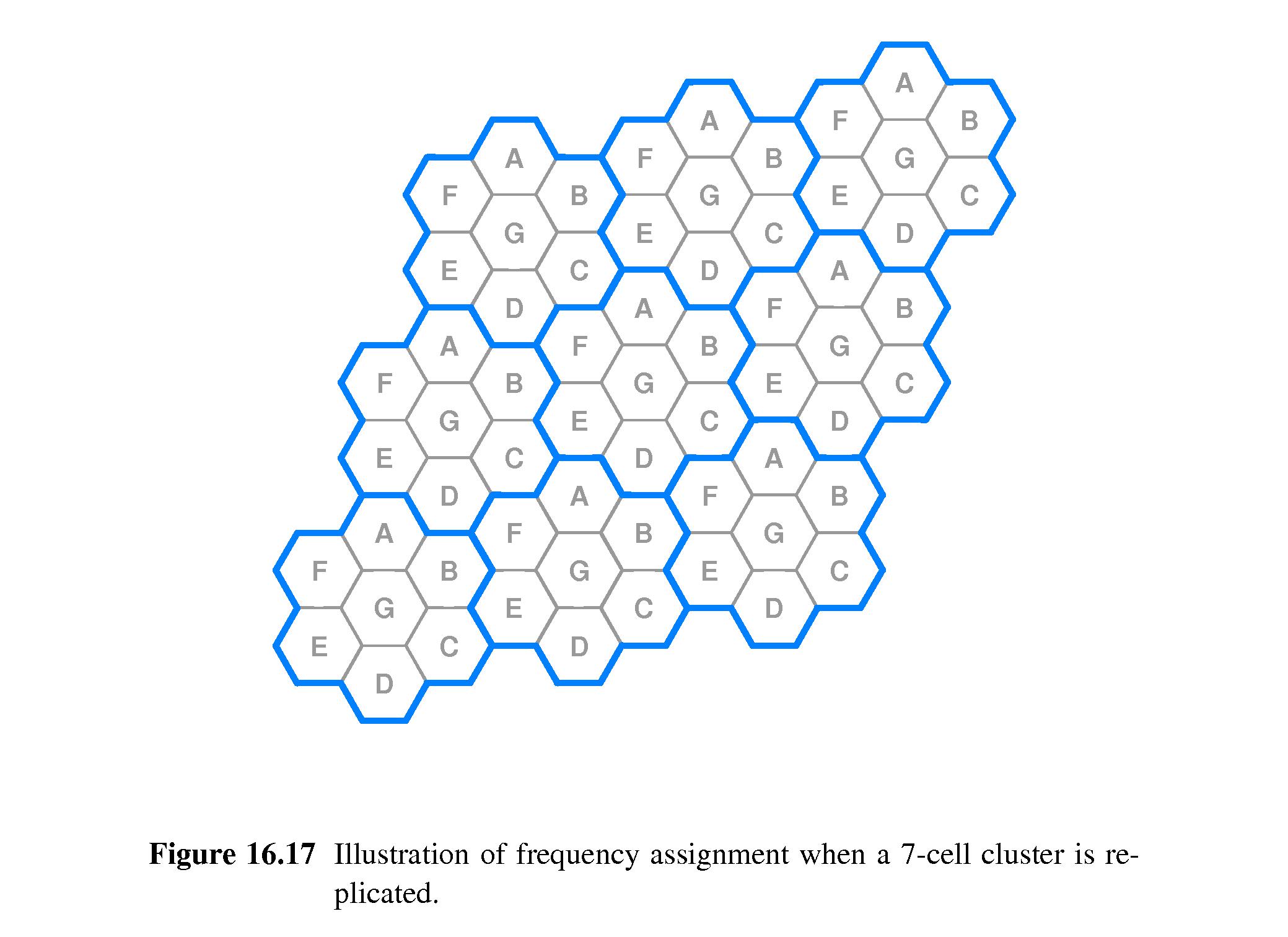

  • There are schemes for assigning frequencies to (e.g. phone) cells so that no two adjacent cells use the same frequency, This lessens problems with interference.






• 16.18 Generations of Cellular Technologies


  • 1G: 1970's through '80's - analog voice
  • 2G: early 1990's to present - digital voice

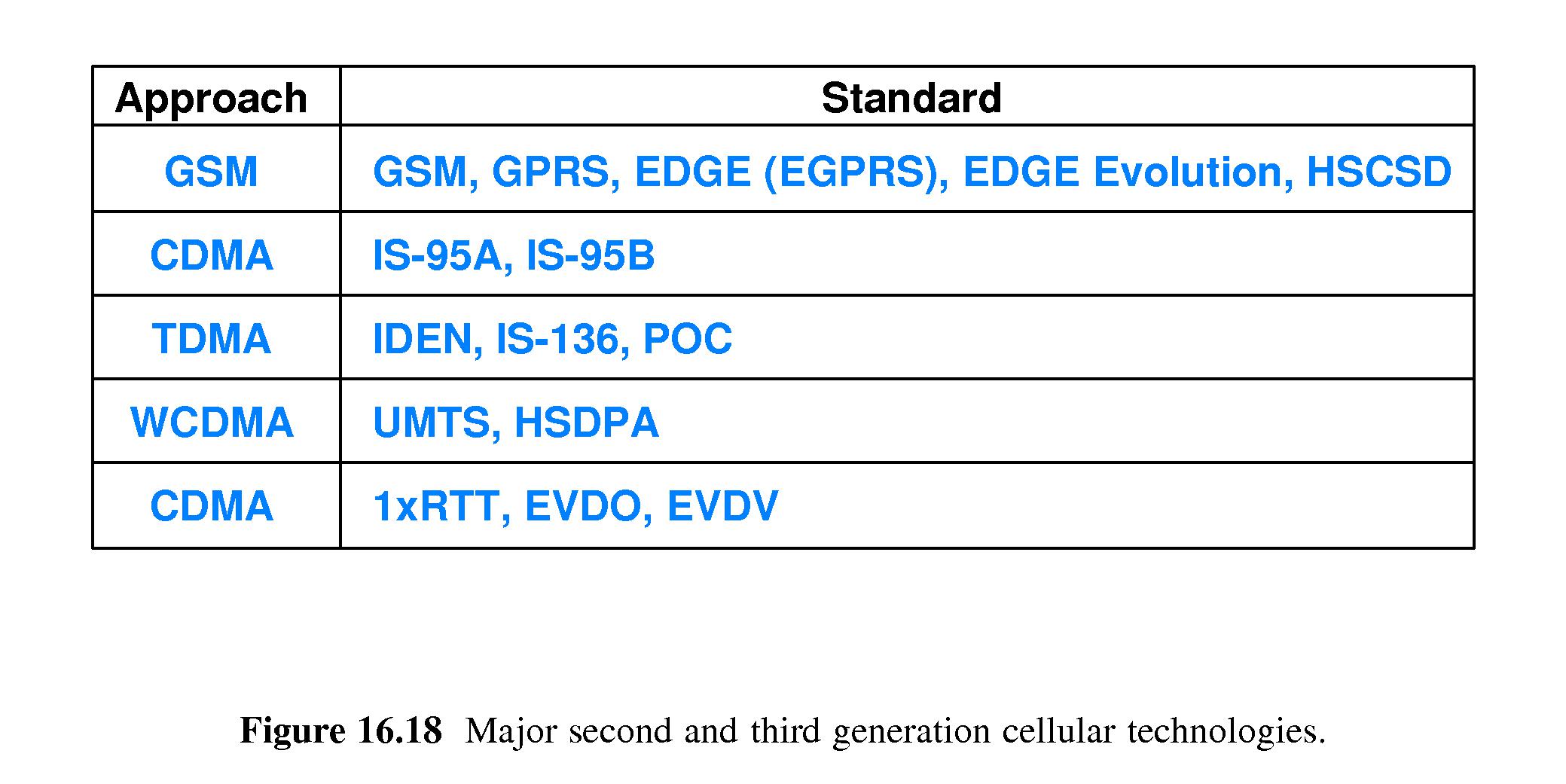

  • 3G: starting in the 2000's - addition of high-speed data services for web-browsing, photo-sharing, and the like (download rates of 400Kbps to 2Mbps) - roaming over N.A. Japan & Europe
  • 4G: starting in 2008 - support for real-time media like TV & high-speed video downloads - support for multiple connection technologies, e.g. WiFi and satellite with phone choosing best service dynamically. Designed for the Internet - uses packet switching.
  • There is a wide variety of implementation strategies.






• 16.19 VSAT Satellite Technology

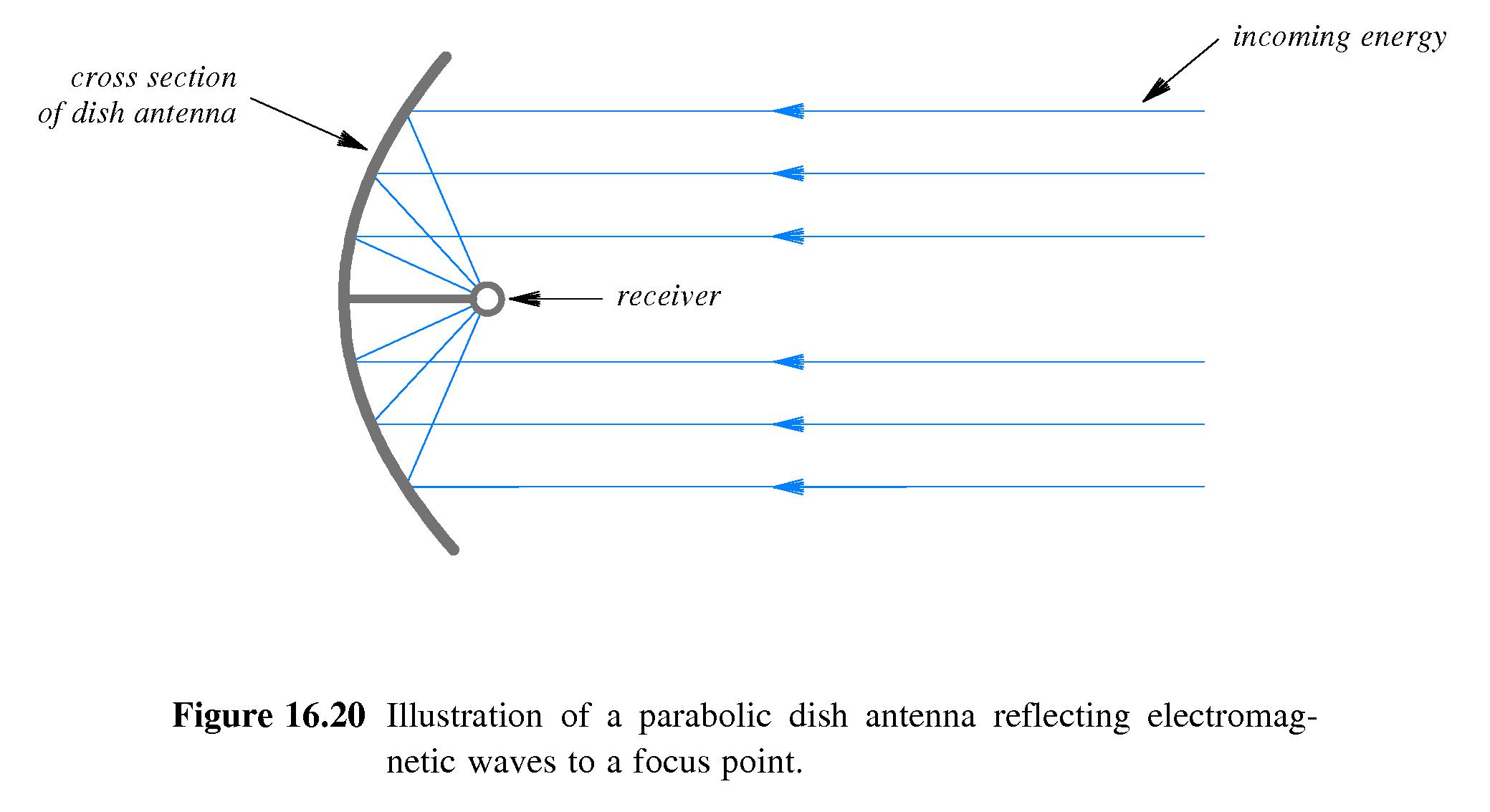

  • Antennae with parabolic reflectors cause incoming energy to converge at a focal point.


  • Early receivers used large antennae (e.g. 3m+ diameter)
  • Very Small Aperture Terminal (VSAT) technology allows diameters more in the 1m range.
  • VSAT is used to link businesses, to download entertainment, and for Internet access.

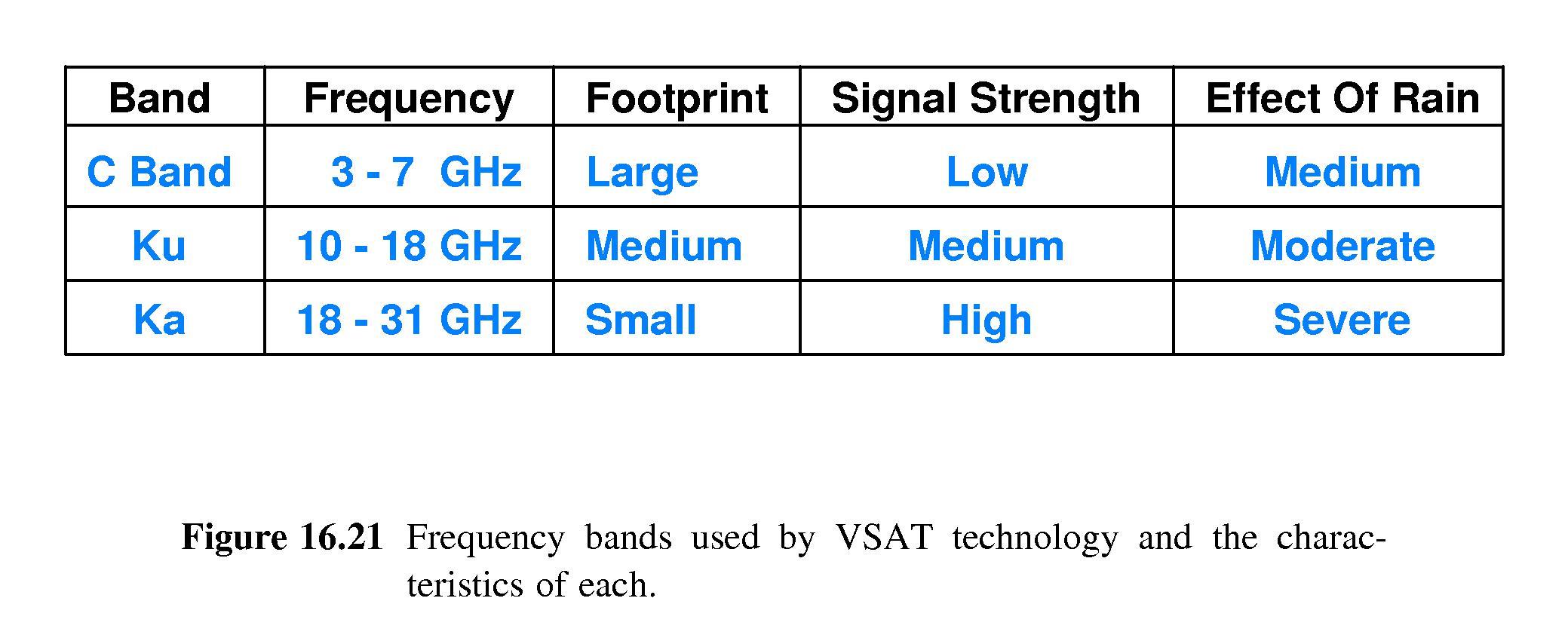

  • There are three frequency ranges offered with differing footprint, signal strength and sensitivity to atmospheric effects (e.g. rain).




• 16.20 GPS Satellites


  • GPS satellites provide accurate time and location information
  • Such information is used increasingly in mobile networking - e.g. location-based services.
  • A receiver can determine its distance to three of the satellites and from that work out its position on the earth.
  • Key Features:
    • Accuracy between 20 and 2 meters (military version are even better)
    • 24 total satellites orbit earth
    • Satellites in six orbital planes
    • Provides time synchronization used in some communication networks


• 16.21 Software Defined Radio and the Future of Wireless

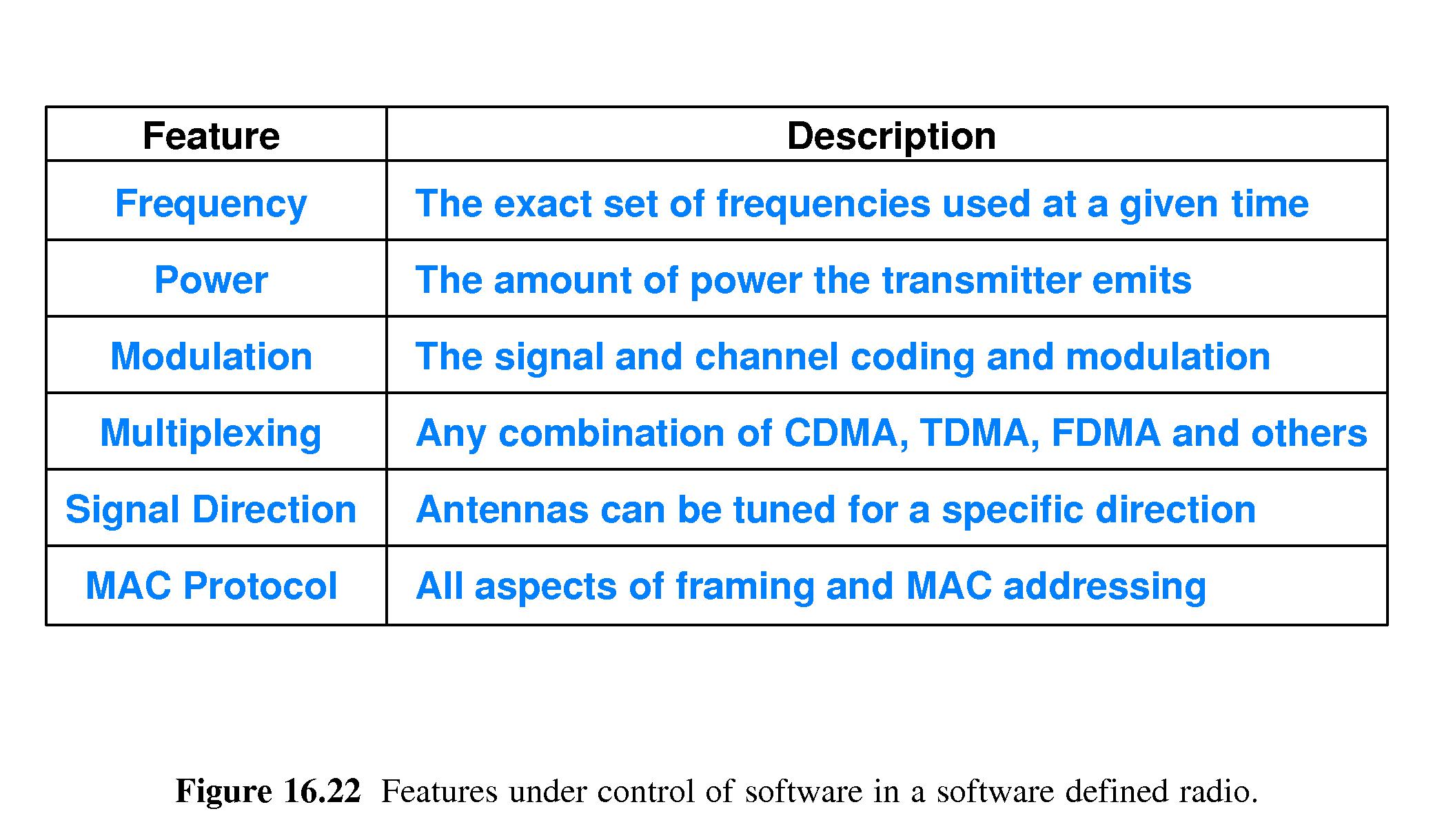

  • A software radio is a device that uses tunable analog filter chips, digital signal processor chips, and multiple antenna management to dynamically control:
    • frequencies used for receiving and transmitting
    • transmitter power
    • channel coding and modulation scheme(s) in use
    • multiplexing scheme(s) in use
    • direction to which various antennae are tuned
    • all aspects of MAC framing and MAC addressing
  • The US military uses software radio
  • The Universal Software Radio Peripheral (USRP) and GNU Radio are available for experimentation
  • Some details have to be worked out before they appear in commercial products - e.g. high cost and protection of other devices from interference that might be caused by software radios.
