Notes On Chapter Four
-- Transmission Media
- 4.1 Introduction -- to understand network software, it helps to know a
little about the hardware.
- 4.2 Copper Wires
- Cheap, easy to work with, high conductivity/low resistance
- Interference:
- current moving through a wire induces an electromagnetic
field.
- an electromagnetic field induces flow of current in another
wire.

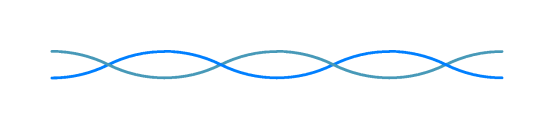

- Twists and Shields help solve the problem.
- 4.3 Glass Fibers
- Pass around sample??
- advantages: high bandwidth and speed, no interference, low
attenuation, no need for circuit, quite flexible.
- disadvantages: expensive, difficult to install and repair, hard to
locate damaged portion.
- light source is LED or Laser
- 4.4 Radio
- advantage: wireless! i.e. no physical link required
- disadvantages: weak signals, interference, lack of privacy
- 4.5 Satellites
- advantages: no wires & long link
- disadvantages: expensive & signal delay

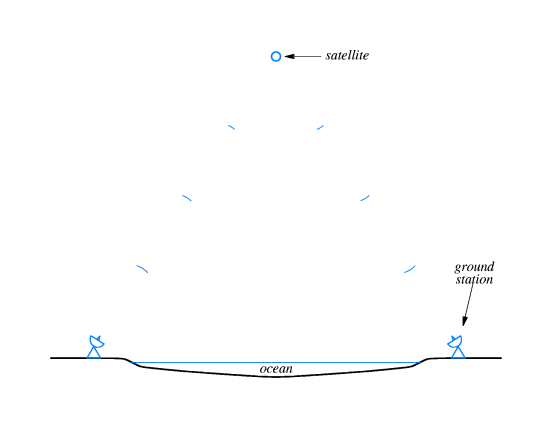

- multiple transponders operating on different frequencies receive
and retransmit in another direction.
- 4.6
Geosynchronous Satellites
- advantage: easier to do the aiming necessary -- stationary
relative to the surface of the earth.
- disadvantage: they have to be 36,785 kilometers up (== 20,236 miles
== 2.5 earth radii), and they have to be in the plane of the
equator. There is room only for a limited number - to avoid
interference. They have to be something like 4 to 8 degrees apart.
This implies a limit on the order of 45 to 90 GEO satellites.
Signal delay is high because of the great distance from the surface
of the earth.
- 4.7 Low Earth Orbit Satellites
- advantage: less delay, and there can be more of them so more
bandwidth is possible in total.
- disadvantage: aiming is harder because they move -- ground antennas
have to move to "track" the satellite.
- 4.8 Low Earth Orbit Satellite Arrays
-
Illustration of EM Spectrum
- 4.9 Microwave
- advantages: wireless, inexpensive, higher bandwidth than RF,
directional
- disadvantages: line of sight, low power, even vegetation can be a
problem.
- 4.10 Infrared
- advantages: wireless, inexpensive, no antenna needed, very nice
for networking all the computers within a single room.
- disadvantages: very short range
- 4.11 Light From A Laser
- advantages: wireless, inexpensive, higher bandwidth than radio and
microwave.
- disadvantages: line of sight, low power, even fog can be a
problem.
- 4.12 Summary
