Notes On Chapter Twenty-Seven -- Internet Routing

• 27.1 Introduction


  • This chapter is about how routing information is propagated around the Internet


• 27.2 Static Vs. Dynamic Routing


  • Routers load static and initial routes when they boot.


  • Dynamic routes are subject to change as routing software on various routers exchange information regarding optimal routes



• 27.3 Static Routing In Hosts And A Default Route


  • Static routing can't adapt to changes in network topology or network failures.

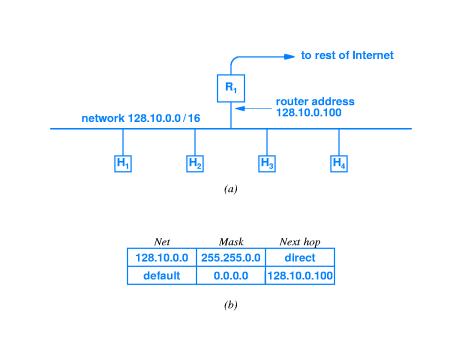

  • Most Internet hosts reside on a network with a single Internet router. They have no need for dynamic routing.


  • Such a host usually has a static routing table with two entries: one for sending packets directly on the local network, and the other to forward all other packets to the router. (See figure (b) above.)



• 27.4 Dynamic Routing And Routers


  • Most routers do dynamic routing so that they can learn and adapt quickly when new networks become reachable, when congestion slows routes, and when old routes stop working.


  • Routers do dynamic routing by informing each other about what they know to be reachable.


• 27.5 Routing In The Global Internet


  • The routers don't just all talk to each other "willy-nilly." That would generate too much traffic.


  • Instead the design of router communication is hierarchical. Small groups of routers talk among themselves, and then representatives of groups talk with representatives of other groups.


• 27.6 Autonomous System Concept


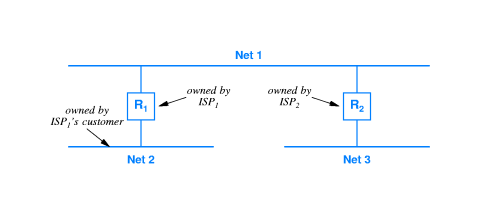

  • The groups of routers that talk are often referred to as autonomous systems.


  • Usually an autonomous system consists of a network or set of networks operated by one organization such as a company division or college campus.


  • There is no hard and fast rule about how an autonomous domain must be defined.

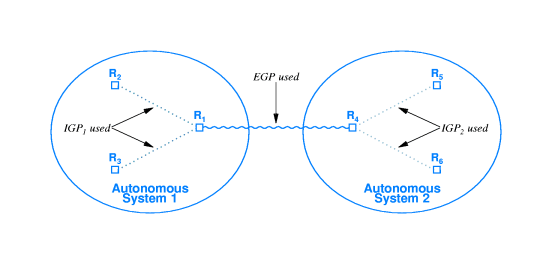

• 27.7 The Two Types Of Internet Routing Protocols


  • 27.7.1 Interior Gateway Protocols (IGPs)
    • Within an autonomous system routers will use an interior gateway protocol (IGP). An IGP is typically simple but does not scale well.


  • 27.7.2 Exterior Gateway Protocols (EGPs)


    • A router uses an exterior gateway protocol (EGP) to communicate with a router in a different autonomous system.


    • An EGP will typically be more complicated to implement than an IGP but it will allow a router to send a lot of information in a compact form, and thus it will be more conservative of bandwidth than an IGP.


    • An EGP will allow for routing based on administrative policy. Some routes will not be advertised simply because domains do not want to admit certain kinds of traffic.



  • 27.7.3 When EGPs and IGPs Are Used


  • 27.7.4 Optimal Routes, Routing Metrics, and IGPs


    • Most IGP routers use hop count and administrative cost as routing metrics.


    • When administrators don't want traffic routed into a part of their network, they set the administrative cost factor high. In essence this seems to add "extra hops" to routes that cross their network and so routers tend to avoid sending traffic via such routes.


    • Each autonomous system is free to use whatever metric it wants.


    • EGPs don't use metrics because they don't know how to compare routes that they get from autonomous systems with different IGP's that use different metrics to evaluate routes.


• 27.8 Routes and Data Traffic

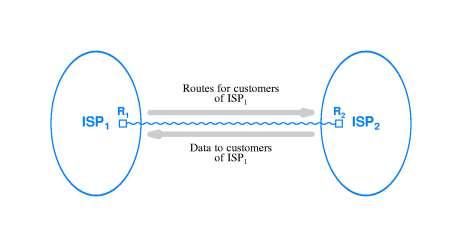

  • When routing infromation starts flowing out along a path through the Internet, messages (data) starts flowing in along that same path.



• 27.9 The Border Gateway Protocol (BGP)


  • Border Gateway Protocol (BGP) is a very popular EGP. The current version is BGP-4.


  • BGP gives routes as a string of autonomous systems, with no metrics or information about routers within each autonomous system.


  • A manager can do policy-based routing by configuring BGP not to advertise some routes to outsiders.


  • If an autonomous system is not willing to pass traffic through to another autonomous system then it is classified by BGP as a stub system. Otherwise it is a transit system.


  • BGP uses TCP to send its routing information. This achieves reliable transport.


  • Major ISPs use BGP in conjunction with the routing arbiter system -- a distributed database of verified routing information about all possible destinations on the Internet.


• 27.10 The Routing Information Protocol (RIP)


  • RIP is a popular IGP on Unix hosts. The route daemon (called routed) runs RIP software.


  • RIP


    • uses a hop count metric,


    • uses UDP for delivery,


    • broadcasts or multicasts routes,


    • can advertise a default route,


    • advertises [destination network, distance] pairs, i.e. performs distance-vector routing, and


    • can be configured on a host just to listen for routes.


  • The basic algorithm:


    • A host broadcasts a route on a directly-connected network: [[destination net; distance]]


    • If the receiver does not have a route to that destination it installs the route from the sender


    • Likewise, it installs the route if it is shorter than an existing route to the same network.


  • After a short time, all routers have been told about all routes in the organization. Routes in tables tend to get better and better.


  • RIP is easy to configure.


  • An organization can configure one router on a network with a default route and RIP software will tell all the hosts on the LAN that route.

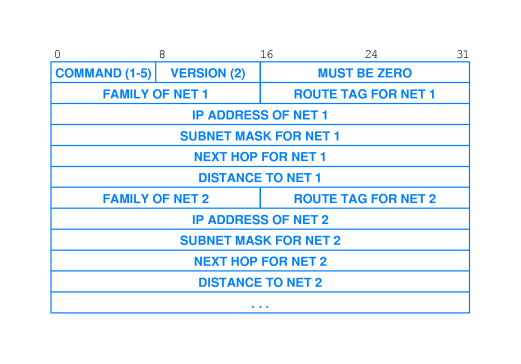

• 27.11 RIP Packet Format


  • Basically a RIP packet is a list of [destination network, distance] pairs.


  • RIP sends its complete routing table in each message.


  • RIP does not scale well to a larger network.


• 27.12 The Open Shortest Path First Protocol (OSPF)


  • OSPF:


    • is an IGP,


    • supports CIDR and subnets by sending masks,


    • does authentication to assure routes are accepted only from a trusted source,


    • allows a router to advertise routes learned from an EGP such as BGP,


    • uses link-state routing, and


    • designates a single host to broadcast on a network.

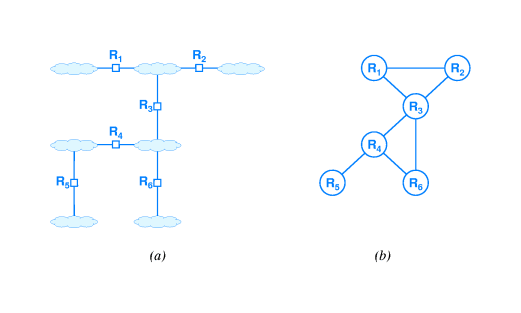

• 27.13 An Example OSPF Graph


  • The basic idea of link-state routing:


    • Routers must periodically probe the routers to which they are directly connected. Basically they do an echo request.


    • Then the routers broadcast information about which specific links between routers are "up" -- responding.


    • When a router notices that the status of a link has changed, it takes the current link-state information it has and works out shortest-path routes to all the routers it knows about.


    • Through OSPF, in effect each router gets a list of nodes (routers) and edges (connecting networks).


    • Together the information represent a graph.


    • The router runs an algorithm to find the shortest paths in that graph.


• 27.14 OSPF Areas


  • OSPF uses a hierarchical partitioning scheme.


  • The network managers can partition the set of routers into subsets called areas.


  • Within each area the routers "speak OSPF" to each other.


  • For inter-area routing, designated area representative routers exchange summary routing information


  • The hierarchical routing strategy is one of the things that allows OSPF to scale well.


• 27.15 Multicast Routing


  • 27.15.1 IP Multicast Semantics


    • Any host is free to join a multicast group at any time. A router near a member of a multicast group is chosen to be responsible to see that multicast packets are routed to the host-member. The host can quit the group any time. The multicast packets should then stop arriving at that host. This is a very dynamic situation.


    • The host will send "I'm still a member" messages to the local router until the last application on the host decides to stop receiving the multicast. At that point the host sends a "I quit the group" message to the router.


    • An IP multicast group is anonymous


      • There is no easy way to discover which hosts are members of the group. Even the sender and the other group members have no particular "tools" for getting this information.


      • An arbitrary host can decide to send a message to a multicast group any time it wants.


  • 27.15.2 IGMP


    • Internet Group Multicast Protocol (IGMP) is the protocol used between a host and router on the same network that allows the host to join or quit a multicast group.


  • 27.15.3 Forwarding and Discovery Techniques


    • When a router on a network learns through IGMP that a host to which it is directly connected has joined a multicast group, it becomes the responsibility of that router to see to it that the host receives the packets of the multicast.


    • Multicast routing software is responsible to locate members of the group and then "create an optimal forwarding structure"


    • Approaches to Multicast Routing:


      • Flood-And-Prune: At first the routers forward the multicast packets onto all interfaces. After a while forwarding becomes very selective when routers learn which networks contain members of the multicast group.


      • Configuration-And-Tunneling: A router in each local area is configured to know about the other local areas (where multicast group members exist). Anytime one of these routers receives one of the multicast packets it "floods" it locally, and also sends it to its peer routers in the other localities.


      • Core-Based Discovery: designate a core unicast address for each multicast group. A router X needing to reach the group sends a packet to the core address. While the packet is in transit the routers it travels through examine it. When a router Y that is a participant in the multicast group sees the packet it processes the message. (The message may be a request to join the group or it may be a request to send a packet to the group). This method forms a tree or routes.


  • 27.15.4 Multicast Protcols


    • There is no Internet-wide standard multicast protocol.


    • Distance Vector Multicast Routing Protocol (DVMRP): used by the mrouted unix program and by Internet Multicast backBONE (MBONE) -- uses local multicast and IP-in-IP encapsulation.


    • Core Based Trees (CBT): The protocol software builds a delivery tree from a central point.


    • Protocol Independent Multicast -- Sparse Mode (PIM-SM): similar to CBT


    • Protocol Independent Multicast -- Dense Mode (PIM-DM): a flood-and-prune protocol for use within an organization.


    • Multicast Extensions to the Open Shortest Path First protocol (MOSPF): designed for use within an organization.


• 27.16 Summary
