Notes On Chapter Ten -- LAN Wiring, Physical Topology, And Interface Hardware

• 10.1 Introduction


  • This chapter discusses network interface cards, LAN wiring, and major LAN hardware components. It also discusse the difference between logical and physical topology.


• 10.2 Speeds of LANs and Computers


  • A host CPU and the attached network may have quite different processing rates. Perhaps surprisingly, it is often the case that the network can feed the CPU data faster than the CPU can process it.



• 10.3 Network Interface Hardware

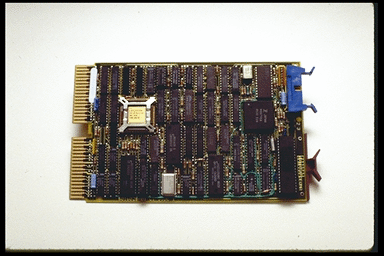

  • Typically the NIC is a plug-in board that is operated by the system software of the host much like a disk drive would be. The network card controller does most of the detailed work. The host's system software only needs to issue simple write and read (send and receive) commands. The NIC will then copy a whole packet worth of data from primary memory to the network (to send), or from the network to the primary memory(to receive).


• 10.4 The Connection Between A NIC and Network


  • Methods of connecting the NIC to the network media vary widely.



• 10.5 Original Thick Ethernet Wiring


  • The original ethernet is the 10Base5 (aka thicknet, aka AUI) standard.


  • The NIC contains all the digital circuitry

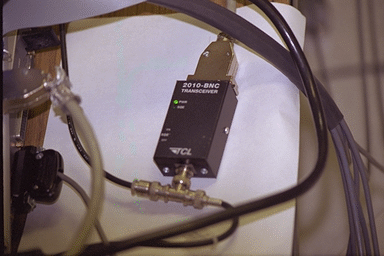

  • An additional component, the tranceiver (transmitter/receiver) is usually connected directlty to the backbone coaxial cable. It performs actions similar to what a modem does.


  • An attachment unit interface (AUI) cable connects the NIC with the tranceiver. The AUI cable contains wires for sending data to the transceiver, receivng data from the transceiver, sending power to the transceiver, and control lines to the transceiver.


  • The backbone cable is the transmisson media.


  • The ends of the backbone must be terminated with a resistor that connects between the central wire and the shield. The terminator acts like an electronic shock absorber that prevents signals from reflecting off the end of the cable and coming back to cause interference. (The network would react to this interference as if it were a collision. After backing off, and trying to transmit, there will just be another apparent collision. Thus when a network gets into a "constant collision" state, the administrator should consider the possibility that it is being caused by an unterminated network segment.)


• 10.6 Connection Multiplexing

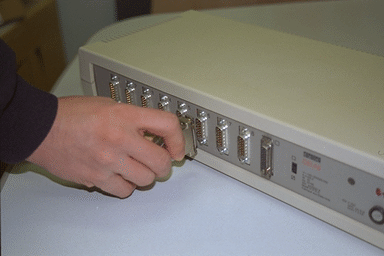

  • A connection multiplexor (also called a multiport tranceiver) is an electronic device to which one can connect several AUI cables from several 10Base5 NIC's. The device is connected to a transceiver on the backbone. The device mimics all the required signals so that the connected NIC's operate just as though they were each connected directly to a transceiver on the backbone.


  • Such multiplexors are a convenience for connecting a room full of computers to the ethernet. You don't have to worry much about spacing taps out on the backbone. There is only one actual connection to the backbone.



• 10.7 Thin Ethernet Wiring

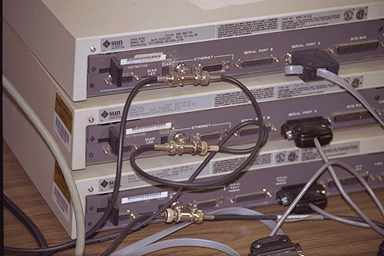

  • 10Base2 (Thinnet) was something of an improvement over 10Base5.


  • The cable is thin and flexible like TV cable.


  • The transceiver is on-board the NIC.


  • The NIC connects directly to the backbone.


  • The equipment is cheaper than Thicknet.



• 10.8 Twisted Pair Ethernet


  • 10BaseT (Twisted Pair) has some advantages over both 10Base5 and 10Base2.


  • In this standard, several NIC's are connected to a central hub or switch. The hub or switch simulates the signals that would be sent by an actual backbone cable, so the NIC's operate just as they would if they were connected using 10Base5 or 10Base2.


  • The wires and RJ-45 connectors used for 10BaseT are much like telephone wire and connectors. The RJ-45 connectors are a little wider than the telephone connectors.



• 10.9 Advantages and Disadvantages of Wiring Schemes


  • Twisted Pair is pretty much the ethernet of choice nowadays.


  • Twisted Pair is usually cheaper than Thinnet or Thicknet.


  • Unlike with 10Base2 (thinnet) you can't partition the network by disconnecting a host from a twisted pair network.


  • It takes a relatively long time to assemble a 10Base5 (thicknet) network, mainly because the the backbone has to be tapped for each tranceiver..


  • It is possible to interconnect all three kinds of ethernets so that they can interoperate fully.


• 10.10 The Topology Paradox


  • According to the authors, a twisted pair ethernet functions logically like a bus network but resembles a star network physically.


  • If the hub of a star network operates in such a way that the hosts operate just as they would on a bus network, then indeed there is no essential difference between the star network and the bus network.


• 10.11 Network Interface Cards And Wiring Schemes


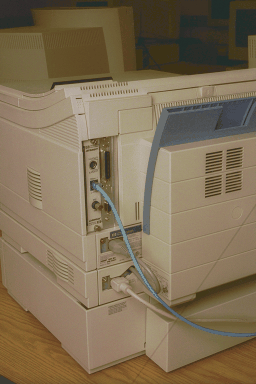

  • Many Ethernet NIC's have two or three different kinds of connectors, say one for 10Base2 and one for 10BaseT.


  • You can connect to the NIC whichever kind of ethernet medium you want. (Only one will be operational at a time.)


  • The ethernet address does not change when you switch from one kind of connection to another on the same NIC.)


• 10.12 Wiring Schemes And Other Network Technologies


  • The original version of LocalTalk uses short cables from NIC's connected to a daisy-chain of transceivers. This is basically a bus topology.


  • There is a version of LocalTalk that uses a hub that simulates the bus.


  • Hub wiring is often used for networks that are actually logically operating as token rings. (This can allow electronic "healing" of the ring if a host fails.)


• 10.13 Summary
